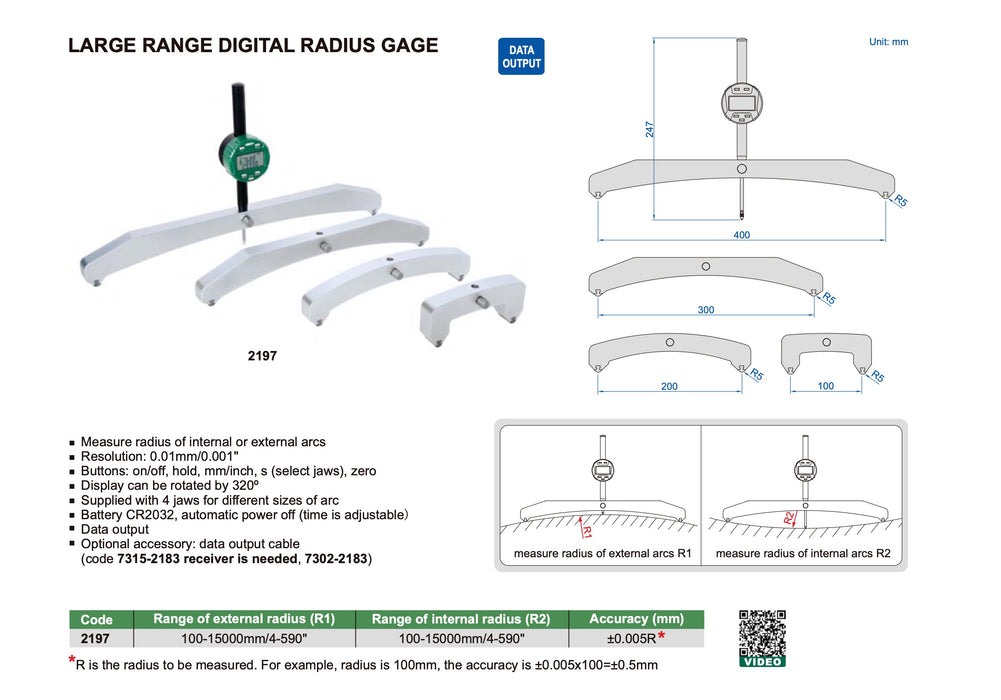

Digital Radiometer for large diameters up to R 15 m radius
2197
| Κωδικός | Range | Reading | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|
| 2197 | 100-15000mm | 0.005mm | €3.354,00 | 5-8 εργάσιμες | ||
Technical Specifications
-
Measuring the radius of internal or external arcs
-
Reading: 0.01 mm / 0.001"
-
Buttons: on/off, hold, mm/inch, s (jaw selection), zeroing
-
320° screen rotation
-
Includes 4 jaws for different arch sizes
-
CR2032 battery, automatic power off (adjustable time)
-
Data output
-
Optional accessory: data output cable (requires receiver 7315-2183, 7302-2183)
-
Outer radius range: 100–15000 mm (4–590")
-
Inner radius range: 100–15000 mm (4–590")
-
Accuracy: ±0.005R (e.g. for a radius of 100 mm, the accuracy is ±0.5 mm)
Description
The long-range digital radius gauge is used to measure the radius of curves on internal or external arcs. It features a rotating display, different jaws for a variety of diameters and the ability to export data.
