Product Characteristics
Data Out
USB
Software
Pc Software

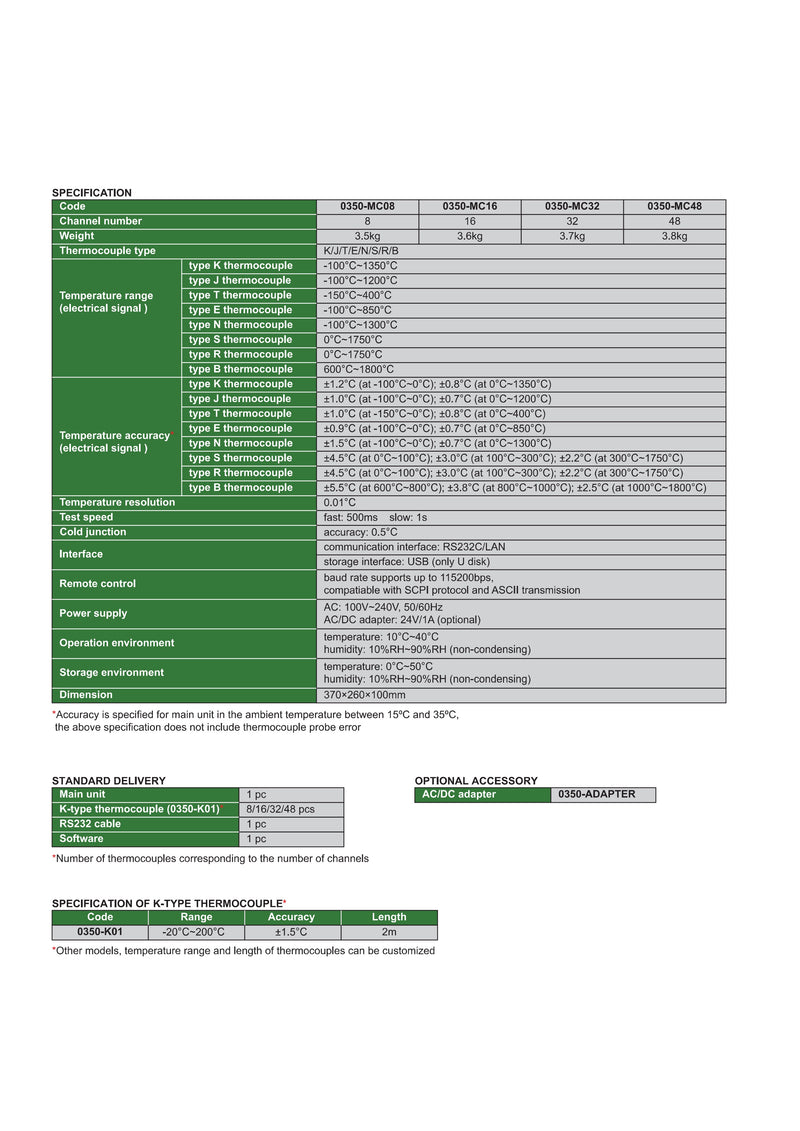

- Model code: 0350-MC16
- Number of channels: 16
- Weight: 3.6 kg
- Compatible thermocouples: K/J/T/E/N/S/R/B
-
Temperature range (Signal 1):
- Type K: -100°C to 1350°C
- Type J: -100°C to 1200°C
- Type T: -150°C to 400°C
- Type E: -100°C to 850°C
- Type N: -100°C to 1300°C
- Type S: 0°C to 1750°C
- Type R: 0°C to 1750°C
- Type B: 600°C to 1800°C
-
Temperature accuracy (Signal 1):
- Type K: ±1.2°C (-100°C to 0°C), ±0.8°C (0°C to 1350°C)
- Type J: ±1.0°C (-100°C to 0°C), ±0.7°C (0°C to 1200°C)
- Type T: ±1.0°C (-150°C to 0°C), ±0.8°C (0°C to 400°C)
- Type E: ±0.9°C (-100°C to 0°C), ±0.7°C (0°C to 850°C)
- Type N: ±1.5°C (-100°C to 0°C), ±0.7°C (0°C to 1300°C)
- Type S: ±4.5°C (0°C to 100°C), ±3.0°C (100°C to 300°C), ±2.2°C (300°C to 1750°C)
- Type R: ±4.5°C (0°C to 100°C), ±3.0°C (100°C to 300°C), ±2.2°C (300°C to 1750°C)
- Type B: ±5.5°C (600°C to 800°C), ±3.8°C (800°C to 1000°C), ±2.5°C (1000°C to 1800°C)
- Temperature resolution: 0.01°C
- Test speed: Fast: 500 ms, Slow: 1 s
- Cold Junction: Accuracy 0.5°C
- Interface: RS232/LAN
- Remote control: Supports baud rate up to 115200 bps, compatible with SCPI and ASCII transmission
- Power supply: AC 100V-240V, 50/60 Hz; AC/DC adapter (optional)
- Operating environment: Temperature: 10°C to 40°C, Humidity: 10%-90%RH (non-condensing)
- Storage environment: Temperature: 0°C to 50°C, Humidity: 10%-90%RH (non-condensing)
- Dimensions: 370x260x100 mm
Included (Standard Delivery)
- Main unit
- Type K thermocouple (0350-K01) 16 pieces
- RS232 cable
- Software

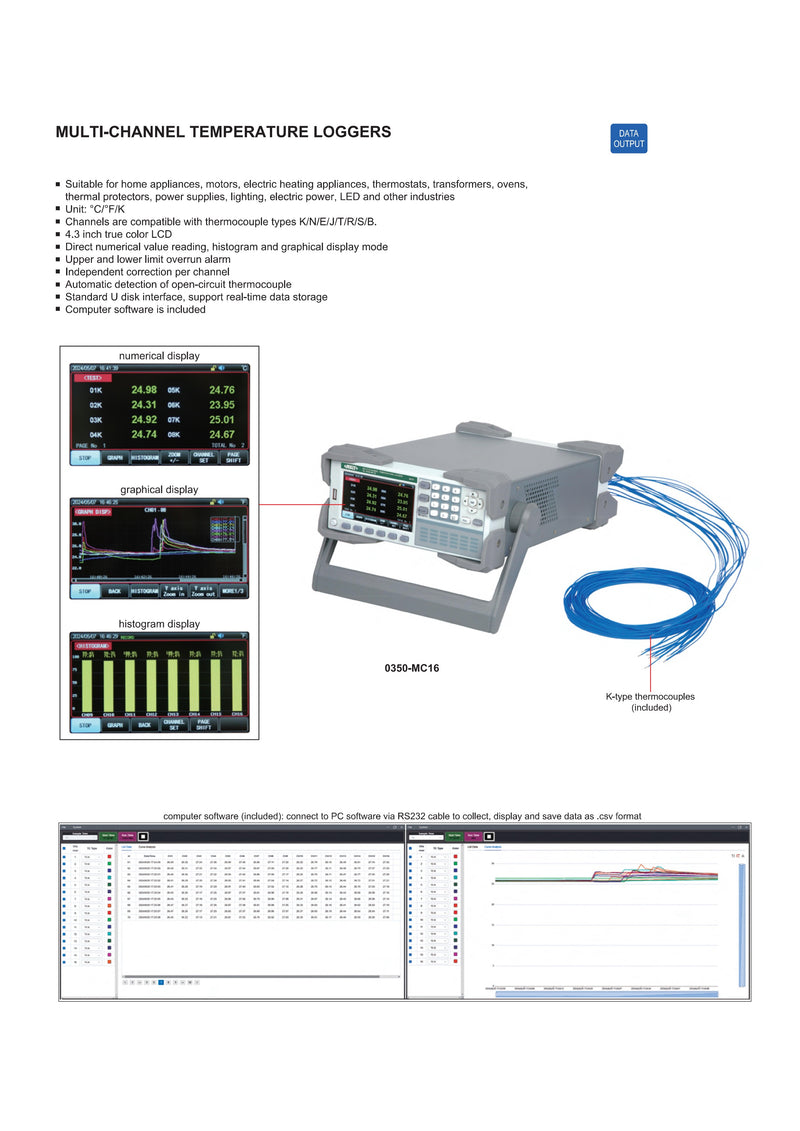

The multichannel temperature data logger 0350-MC16 is used for monitoring and recording temperatures in a wide range of applications. It supports multiple thermocouples and provides accurate real-time measurements. It features an LCD screen with graphical display, numerical display, and histogram display capabilities. It connects to a computer for data storage and analysis.
2 Years Warranty
Quote
| SKU | Width | Number of channels | Compatible thermocouples | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| 0350-MC16 | -150...1800 °C | 16 | K/J/T/E/N/S/R/B | 5-8 business days |
+VAT
€1.215,00
|
5-8 business days
|
