Product Characteristics
Κλάση ζυγοστάθμισης
G6.3 @15.000 RPM
Runout
≤30 μm
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Μέγιστο runout 30μm"}]}]}
Παροχή Ψυκτικού
AD
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Παροχή ψυκτικού μέσω του pull stud"}]}]}
Specifications
- Type: Automatic CNC drill chuck for clockwise and counter-clockwise rotation
- Application: Clamping tools with straight (cylindrical) shanks
- Standards: ISO 7388-2, JIS B 6339
- Accuracy/concentricity (runout): ≤ 0.03 mm
- Clamping system: Mechanical amplification of clamping force
- Clamping security: No automatic loosening during machining in CW/CCW rotation or at spindle stop
- Clamping/releasing: By Allen wrench (hex key)
- Delivery: Without wrench
Description
Automatic CNC drill chuck with BT taper for holding straight-shank tools on CNC machines. It is used for secure tool clamping during machining with either clockwise or counter-clockwise spindle rotation, with clamping and release performed using an Allen wrench.
Quote

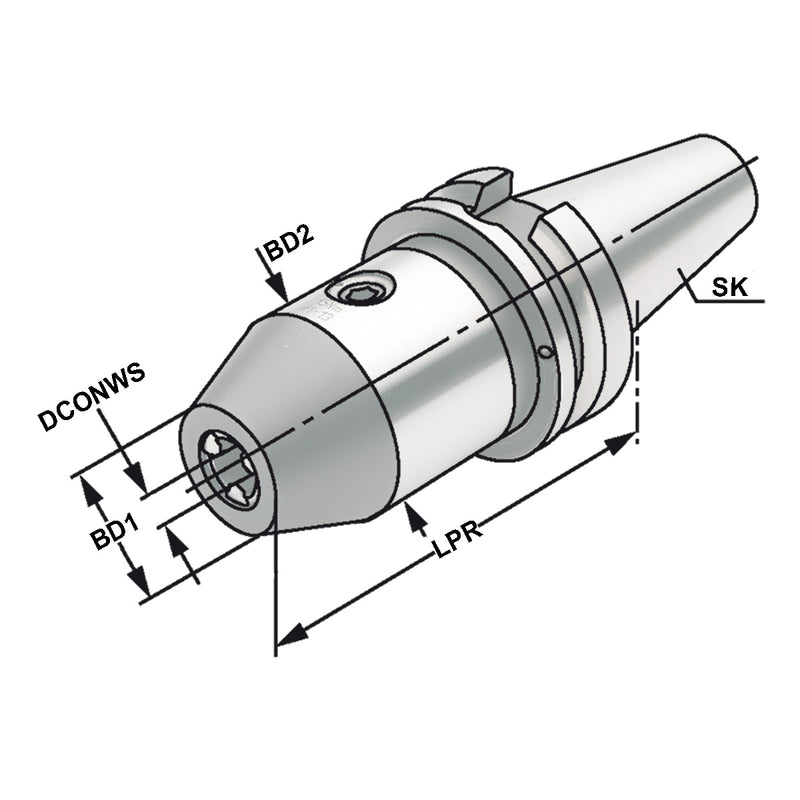

| SKU | Taper | Range (mm) | LPR (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-305.15.08 | BT 30 | 0 – 8 | 73 | 1 month |
+VAT
€328,00
|
|
| KE-305.15.13 | BT 30 | 1,0 – 13 | 93 | 1 month |
+VAT
€273,00
|
|
| KE-305.15.16 | BT 30 | 2,5 – 16 | 98 | 1 month |
+VAT
€294,00
|
|
| KE-405.15.08 | BT 40 | 0 – 8 | 78 | 1 month |
+VAT
€199,00
|
|
| KE-405.15.13 | BT 40 | 1,0 – 13 | 98 | 1 month |
+VAT
€190,00
|
|
| KE-405.15.16 | BT 40 | 2,5 – 16 | 103 | 1 month |
+VAT
€195,00
|
|
| KE-505.15.13 | BT 50 | 1,0 – 13 | 111 | 1 month |
+VAT
€257,00
|
|
| KE-505.15.16 | BT 50 | 2,5 – 16 | 113 | 1 month |
+VAT
€273,00
|
