Product Characteristics
Κλάση ζυγοστάθμισης
G2.5 @25.000 RPM
Runout
≤3 μm
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Μέγιστο runout 3μm"}]}]}
Παροχή Ψυκτικού
AD/B
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Παροχή ψυκτικού μέσω του pull stud ή μέσω της φλάτζας"}]}]}
Specifications
- Type: Collet chuck/holder for OZ collet system
- Standards: ISO 10897 (DIN 6388) for OZ collets, DIN 6391 (collet chuck body)
- Machine taper: BT (per ISO 7388-2 / JIS B 6339)
- Accuracy (runout): ≤ 3 μm
- Balancing: G2.5 at 25,000 min-1 (25,000 RPM)
- Application: for clamping straight-shank tools in collets
- Delivery: with ball bearing clamping nut
Description

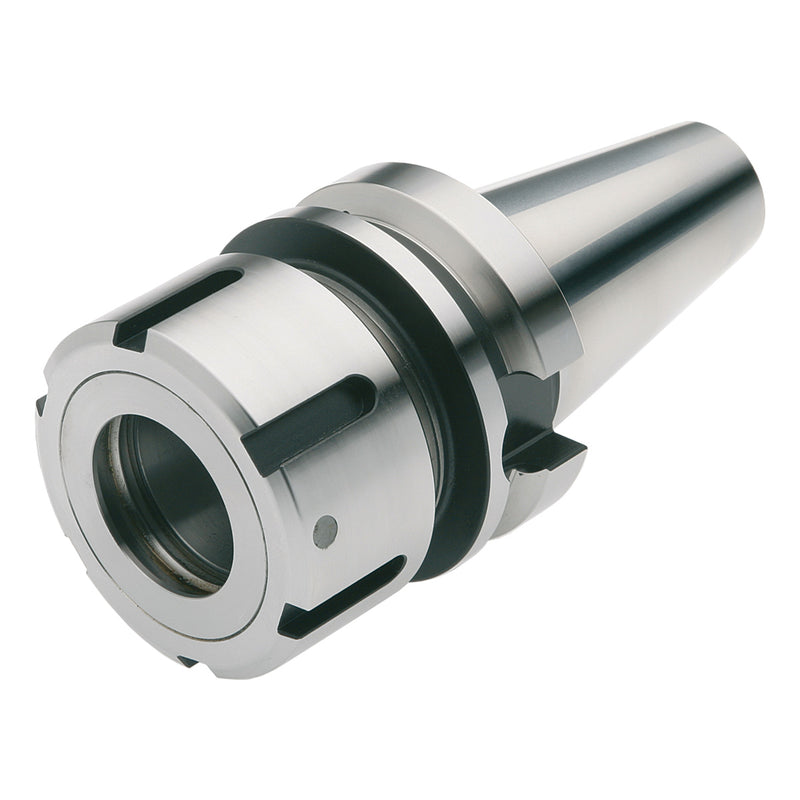

High-precision BT taper collet chuck for OZ collets, designed for machine tools with a BT spindle interface. It is used to hold straight-shank cutting tools by means of an OZ collet, providing low runout and G2.5 balancing up to 25,000 RPM for stable and accurate machining operations.
Quote
| SKU | Taper | Collet (Range) | LPR (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-406.01.32 | BT 40 | OZ32 (3-32 mm) | 90 | 1 month |
+VAT
€85,00
|
|
| KE-305.01.16 | BT 30 | OZ16 (2-16 mm) | 60 | 1 month |
+VAT
€75,00
|
|
| KE-506.01.25 | BT 50 | OZ25 (2-25 mm) | 85 | 1 month |
+VAT
€118,00
|
|
| KE-506.01.32 | BT 50 | OZ32 (3-32 mm) | 90 | 1 month |
+VAT
€123,00
|
|
| KE-406.01.16 | BT 40 | OZ16 (2-16 mm) | 70 | 1 month |
+VAT
€80,00
|
|
| KE-305.01.25 | BT 30 | OZ25 (2-25 mm) | 80 | 1 month |
+VAT
€76,00
|
|
| KE-406.01.25 | BT 40 | OZ25 (2-25 mm) | 70 | 1 month |
+VAT
€81,00
|
