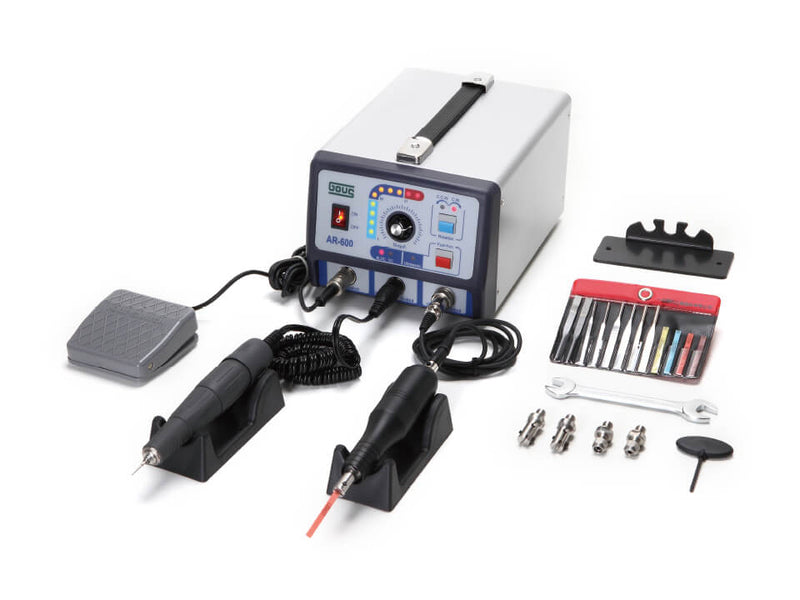

Ultrasonic Grinding Machine Triple Function
AR-600
| Κωδικός | Τιμή | Στοκ | |
|---|---|---|---|
| AR-600 | €3.418,00 | Κατόπιν Παραγγελίας |
Τιμές χωρίς ΦΠΑ 24%
FEATURE
AR-600 ultrasonic polishing equipment has a high-efficiency microprocessor design that gives the machine a steadier and more effective performance.
- Our ultrasonic polishing equipment combines ultrasonic, brushed DC, and brushless DC output in one package. You can adapt most of the handpieces for your polishing work.
- Brushless DC output power is 100 watts and brushed DC output power is 60 watts.
- Max. 45 watts Ultrasonic output makes polishing jobs more effective.
- The advantages of the Brushless handpiece are: high speed, high torque, longer tool life, and low noise, no need to change carbon brushes, no dust caused by carbon brush wear.
| Power Controller | |
|---|---|
| Main supply | AC-90V ~ 250V, 50/60 Hz |
| Ultrasonic output | 45 watts |
| Vibration frequency | 18 ~ 26 kHz |
| Stroke amplitude | 3 ~ 40 μm |
| Frequency adjustment | auto-tracing |
| Power consumption | 100 watts |
| Fuse | 2A time-lag type |
| DC motor output | 5 ~ 30V |
| DC brush power | Max. 60 watts |
| DC brushless power | Max. 100 watts |
| Dimensions | 170 x 260 x 140mm |
| Weight | 2.0 kg |
| Handpiece | |
|---|---|
| Ultrasonic handpiece | GS-H09 |
| Dimensions | Ø33 x 146mm |
| Weight | 254g |
| Rotary handpiece | |
|---|---|
| Brush handpiece | U-Lap 35 |
| Brushless handpiece | ◎ |
