Specification
| Input |
2-, 3-wire PT100, PT500, PT1000, Ni100, Ni200, Ni1000 |
| Thermocouple Type K, J, E, N, L, R, S, B, T, C | |
| Potentiometer: 500 ... 20 kOhm | |
| Resistance: 5k ... 50 kOhm | |
| Process signal: 4 ... 20 mA, 0 ... 10 V | |
| Frequency: 0 ... 100 Hz | |
| DC Voltage: 60 mV, 200 mV, 2 V, 20 V, 200 V, 600 V | |
| DC Current: 20 mA, 5 A | |
| AC Voltage: 2 V, 20 V, 200 V, 600 V | |
| AC Current: 20 mA, 5 A | |
| Measuring rate | 3 / second |
| Resolution | 16 Bit |
| Accuracy | 0.1 % |
| Internal resistance | Voltage measurement: 1 MΩ |
| Current measurement: 12 Ω | |
| Scaling | 21 points |
| Display | 4-digit, 7-segment LED display, tri-color |
| Display range | -1999 ... 9999 |
| Outputs | cards |
| Ambient temperature | Operating: 0 ... 55 degreesC / 32 ... 131 degreesF |
| Storage: -20 ... +70 degreesC / -4 ... 158 degreesF | |
| Digital display dimensions | 96 x 48 x 91 mm / 3.7 x 1.8 x 3.5" |
| Panel cutout | 92 x 45 mm / 3.6 x 1.7" (according to DIN) |
| Supply voltage | 18 ... 265 V AC/DC |
| Protection | Front: IP 65 |
| Weight | < 200 g / 7 oz |

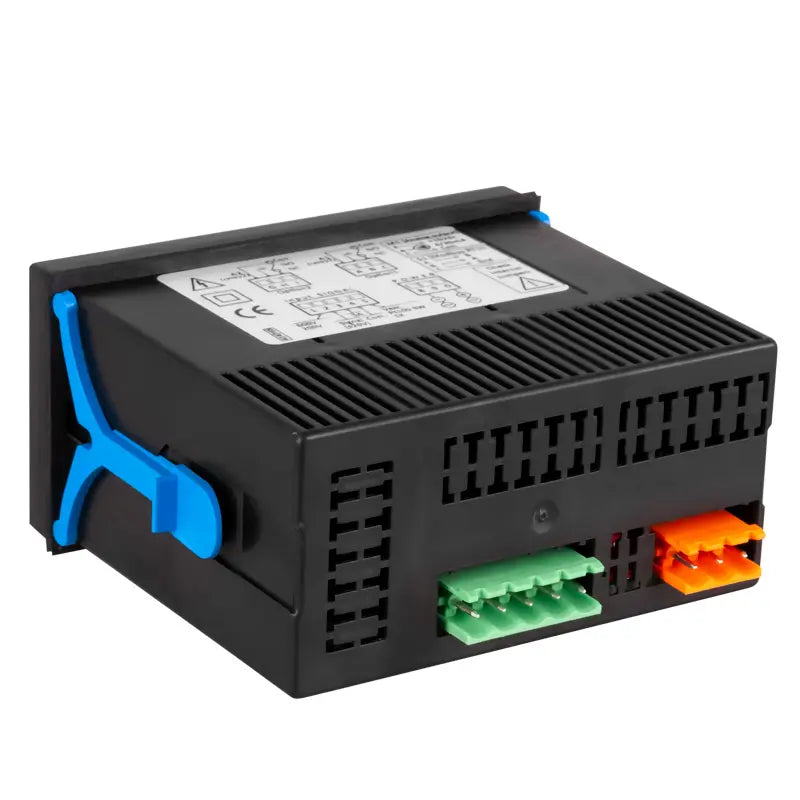

| Mounting | Mounting clips with clamping screws, |
| Electrical connection via terminal strip | |
| Housing digital display | Robust plastic housing |
Description

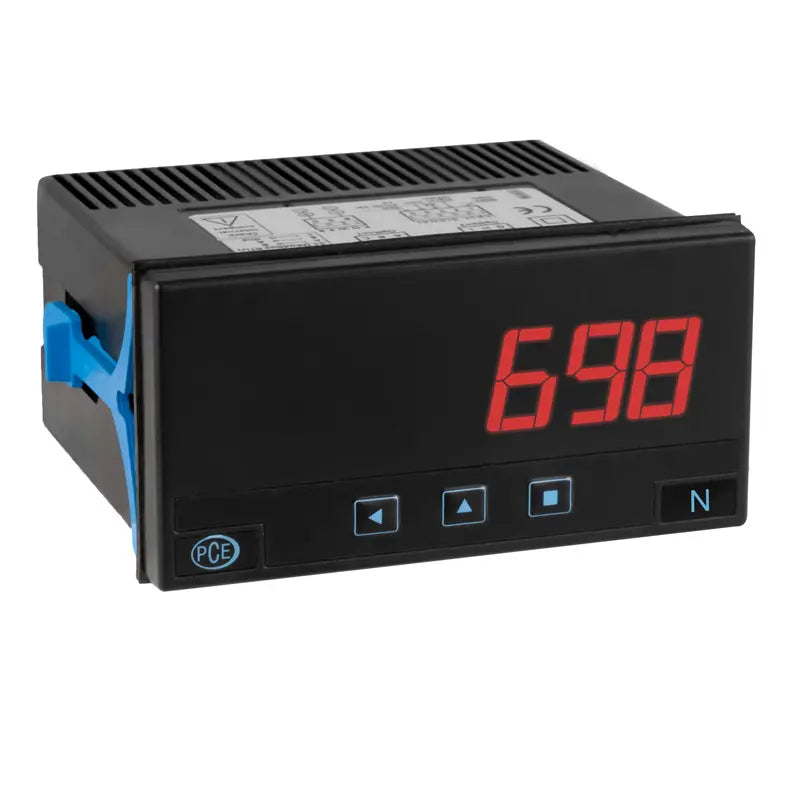

Multi-signal digital panel indicator to work as voltmeter, ammeter, process signals, temperature, resistors, potentiometers, and frequencies / Modular design architecture / 4-digit LED display / Universal power supply 110 or 230V AC or 24V DC

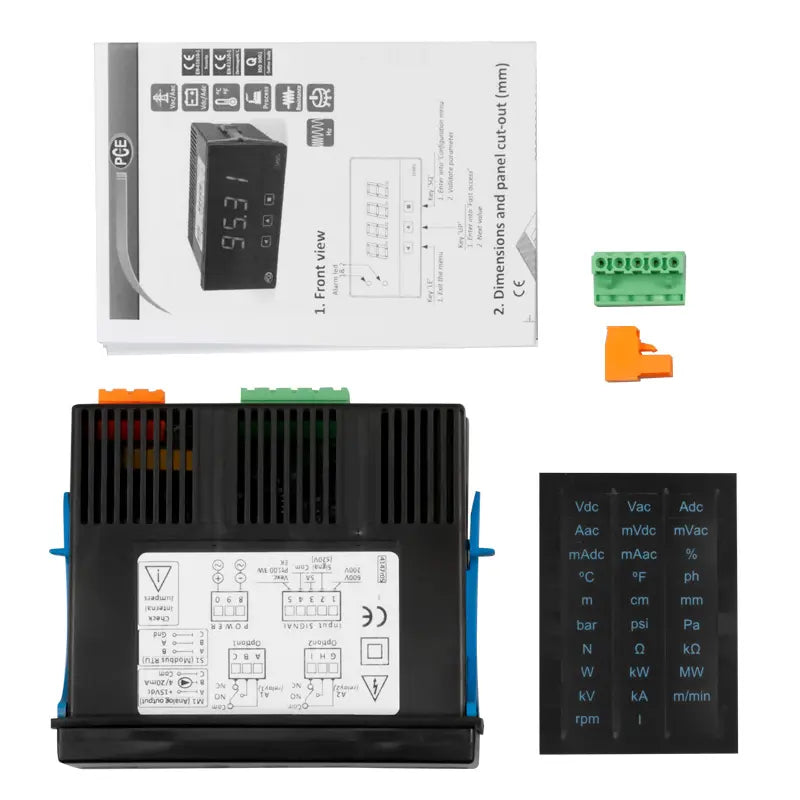

Delivery Scope
2 x Clamps
1 x Instruction manual
1 Year Warranty
