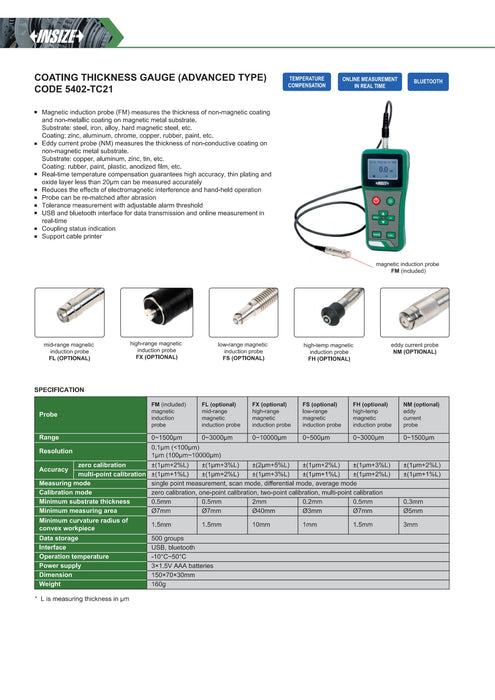

Technical Specifications (FX)

• Sensor: Optional long-range magnetic sensor

• Measurement range: 0~10000μm

• Reading:

  • 0.1μm for values below 100μm

  • 1μm for values from 100μm to 10000μm

• Accuracy:

  • Zero calibration: ±(2μm + 5%L)

  • Multi-point calibration: ±(1μm + 3%L)

• Minimum substrate thickness: 2mm

• Minimum measurement area: Ø40mm

• Minimum curvature radius of convex object: 10mm

Description
The optional FX long-range magnetic sensor allows coating thickness measurements up to 10000μm. It provides greater accuracy with multi-point calibration and requires substrates at least 2mm thick. Suitable for flat or slightly curved surfaces with a curvature radius from 10mm.
