WTI-BSW

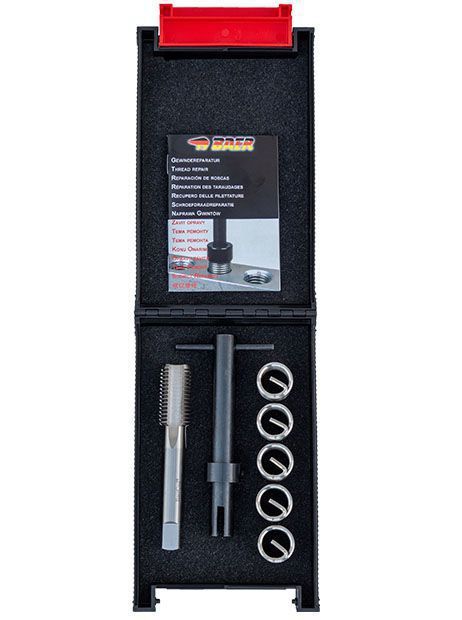

Thread Repair Kit (Drill not included)
| Κωδικός | Diameter | TPI | Drill (Not included) | Τιμή ** | Στοκ | ||
|---|---|---|---|---|---|---|---|
| WTI-BSW-3/4-10 | 3/4" | 10 | 20 mm | €60,00 | 2-5 εργάσιμες | ||
| WTI-BSW-7/8-9 | 7/8" | 9 | 23 mm | €72,00 | 2-5 εργάσιμες | ||
| WTI-BSW-1-8 | 1" | 8 | 26.5 mm | €69,00 | 2-5 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Thread repair kits are used to repair damaged or defective threads in metals, many plastics or composites.
The process of repairing the threads in a damaged hole, using a V-COIL Set, has the following steps:
- Drill out the damaged threads using an appropriately sized drill bit.
- Then create a new thread with the collet included in the set.
- Screw the spring into the new thread in the hole, using the insertion tool, just below the surface of the part.
- Unscrew the insertion tool. The threaded insert will expand slightly as the torque from the insertion tool is released. This will make it lock onto the fixture.
-
BaerCoil thread inserts can be shortened to the required length with a side cutter or similar.
