- Activation/Deactivation (ON/OFF).
- Automatic shutdown after 2 hours.
-
Features:

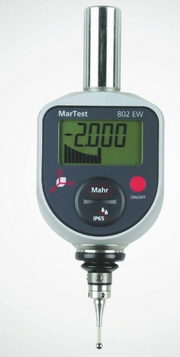

- Excellent readability through combined display (graph bar and digital display).
- Autonomous control independent of the machine.
- Wide operating range: -2 to 4 mm (axes X, Y, Z).
- Protection against contact errors with the stylus.
- Compact metal construction with long arm.
- Shock-resistant movement.
- Battery life: 3 years (CR 2032, 3V Lithium).
- IP 65 protection.
- Repeatability at zero point: ±0.005 mm.
- Includes: battery, user manual, stylus 802 EWt.
Applications
- Determination of the zero point on machined parts.
- Finding the center of holes.
- Checking and correcting alignment of parts in length and depth.
- Use on milling machines and CNC machines.

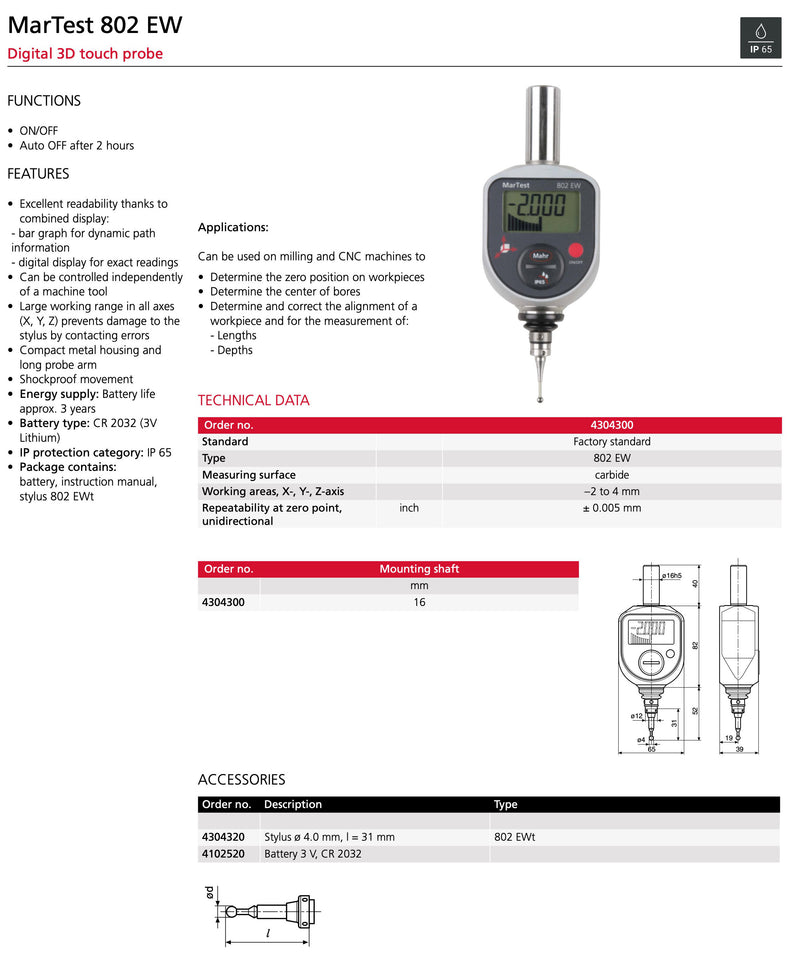

Technical Specifications
- Order number: 4304300.
- Standard version: Factory standard.
- Measuring surface: Carbide.
- Operating range (axes X, Y, Z): -2 to 4 mm.
- Support shaft diameter: 16 mm.
- Protection: IP 65.
Accessories
- Stylus: Diameter 4 mm, length 31 mm (code 4304320).
- Battery: CR 2032, 3V (code 4102520).
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
Mahr Factory
The German company Mahr Group, from 1861 to the present day, headquartered in Esslingen, Germany, is synonymous with precision and reliability in the field of metrology. It has established itself worldwide as a specialist in the development and manufacture of mechanical measuring instruments, from calipers, micrometers, portable surface roughness testers and up to fully automated stations for form, contour, and shaft measurement. Mahr’s deep expertise, especially in surface measurements (MarSurf) and cylindricity (MarForm), makes it a leading choice for industries that do not accept compromises in quality. By providing robust solutions both for the metrology laboratory and for the harsh production environment, Mahr ensures process control and compliance with the strictest specifications.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε., is the official representative of Mahr in Greece and we can support the entire range of its catalog, which includes more than 10,000 different product codes.
| SKU | Probe Ø | Reading | Stem | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| MA-4304300 | 4 mm | 0.001 mm | 16 mm | 5-8 business days |
+VAT
€719,00
|
