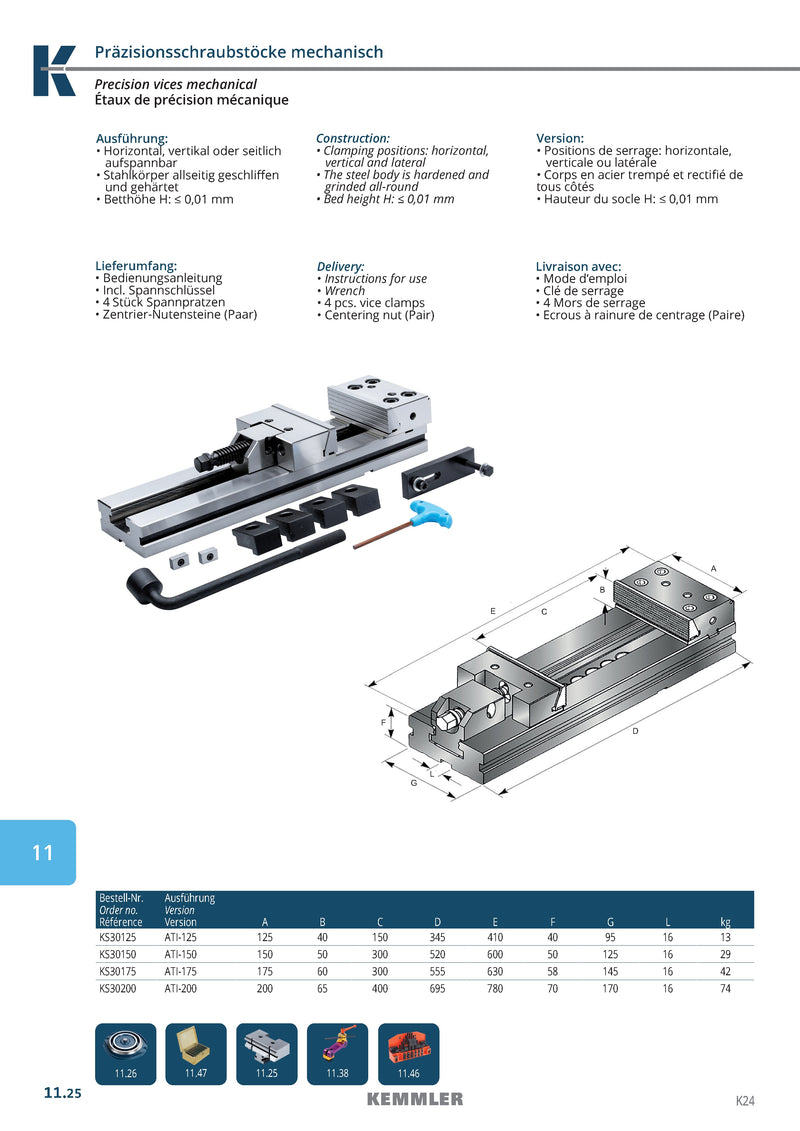

Specifications
- Type: Mechanical precision machine vise
- Clamping positions: horizontal, vertical, or lateral
- Body: steel body, hardened and all-round ground
- Bed height H: ≤ 0.01 mm

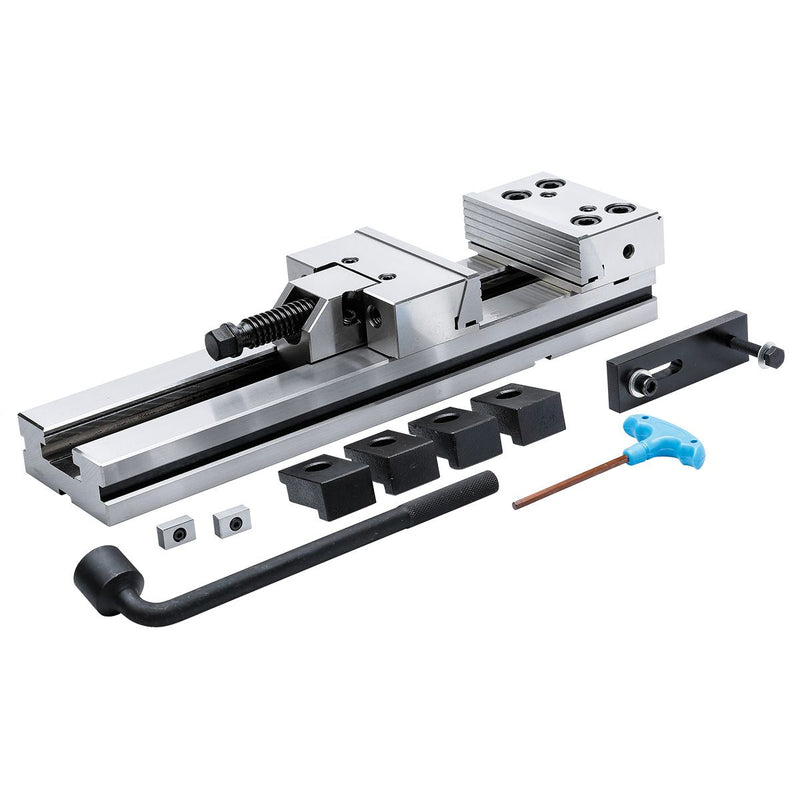

- Included: instructions for use, wrench, 4 pcs. vice clamps, centering nut (pair)
- Available versions:

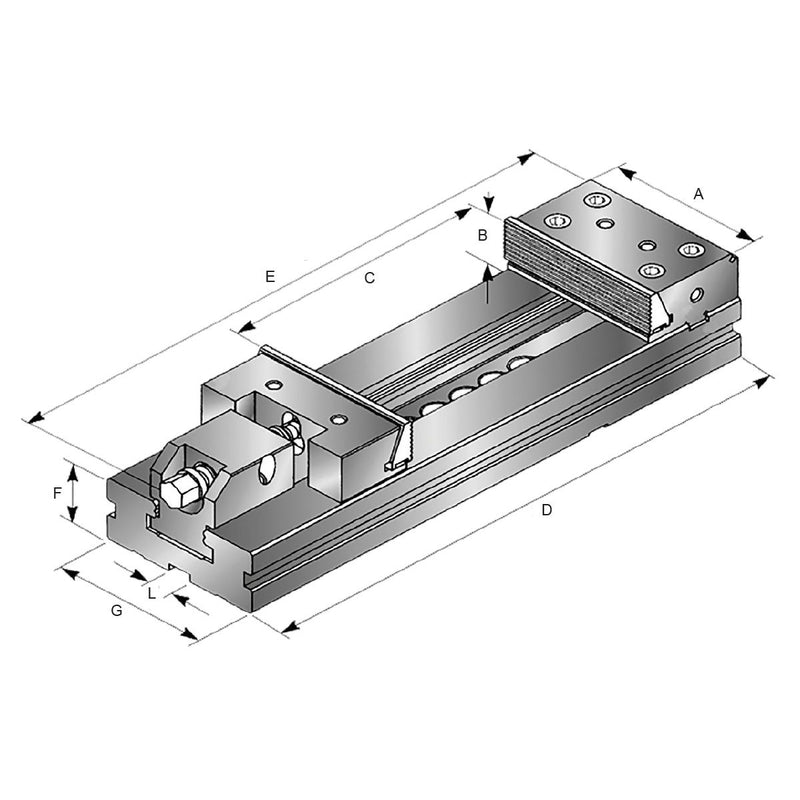

- ATI-125 (KS30125): A 125 mm, B 40 mm, C 150 mm, D 345 mm, E 410 mm, F 40 mm, G 95 mm, L 16 mm, Weight: 13 kg
- ATI-150 (KS30150): A 150 mm, B 50 mm, C 300 mm, D 520 mm, E 600 mm, F 50 mm, G 125 mm, L 16 mm, Weight: 29 kg
- ATI-175 (KS30175): A 175 mm, B 60 mm, C 300 mm, D 555 mm, E 630 mm, F 58 mm, G 145 mm, L 16 mm, Weight: 42 kg
- ATI-200 (KS30200): A 200 mm, B 65 mm, C 400 mm, D 695 mm, E 780 mm, F 70 mm, G 170 mm, L 16 mm, Weight: 74 kg
Description
Mechanical precision vise for clamping workpieces on machine tools. It supports horizontal, vertical, or lateral clamping and features a hardened, all-round ground steel body for stable, repeatable holding during machining operations.
Quote
| SKU | Opening | Jaws | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| KE-KS30125 | 150 | 125 | 1 available |
+VAT
€729,00
|
|
| KE-KS30150 | 300 | 150 | 1 month |
+VAT
€1.145,00
|
|
| KE-KS30175 | 300 | 175 | 1 available |
+VAT
€1.166,00
|
|
| KE-KS30200 | 400 | 200 | 1 month |
+VAT
€1.961,00
|
Added to cart!
ATI-125-CLAMP
Clamps για Μέγγενη ATI
Original price
€22,00
-
Original price
€35,00
Original price
€22,00
-
€35,00
€22,00
-
€35,00
Current price
€22,00
Available
