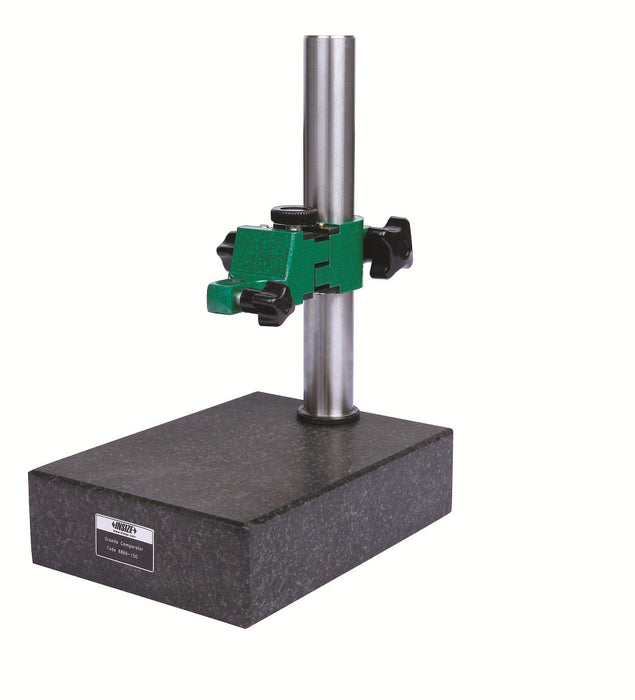

Base for dial indicator with 2 mm fine adjustment - Granite
6866
| Κωδικός | Dimensions (mm) | Micrometer adjustment | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|
| 6866-150 | 200 x 150 | Width 2 mm | €470,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

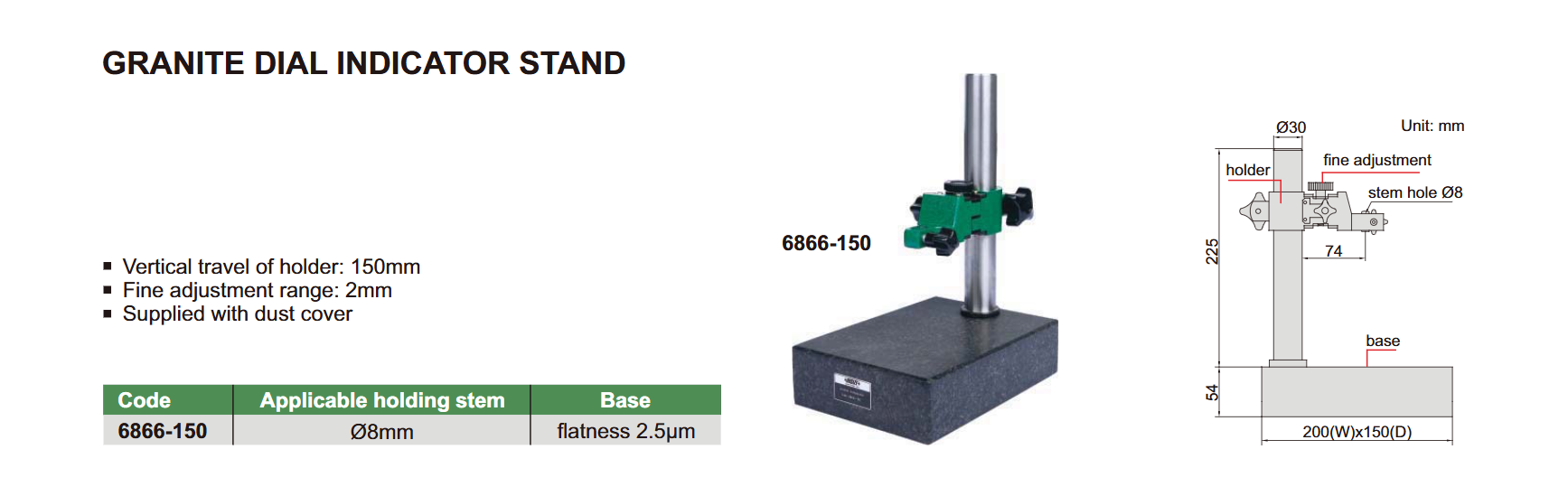

Technical Specifications
-
Vertical arm travel: 150 mm
-
Micrometer adjustment range: 2 mm
-
Gauge socket diameter: Ø8 mm
-
Base flatness: 2.5 μm
-
Base dimensions: 200 mm (L) x 150 mm (W)
-
Comes with a dust cover
Description
Granite dial gauge base, designed for stable and precise measurement on the vertical axis. It features a 2 mm micrometer for fine adjustments and an Ø8 mm socket for dial gauges. Ideal for precision work in laboratories and industrial applications.
