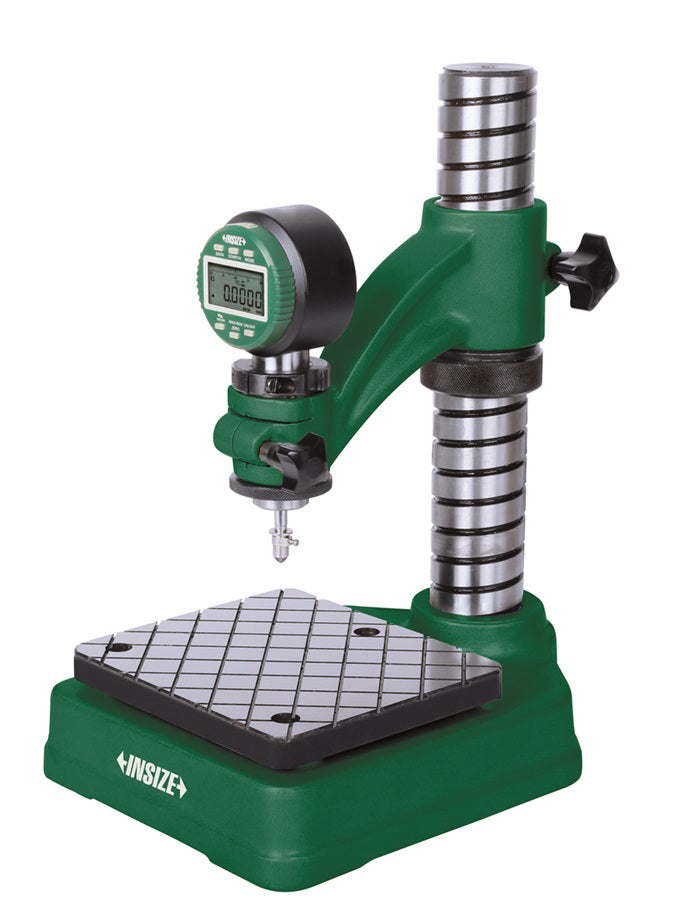

Base for dial indicator with 3 mm fine adjustment
6846
| Κωδικός | For Ø Shank | Base Material | Micrometer adjustment | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 6846-140 | 28 mm | with mesh | 3 mm | €547,00 | Κατόπιν Παραγγελίας | ||
Τιμές χωρίς ΦΠΑ 24%

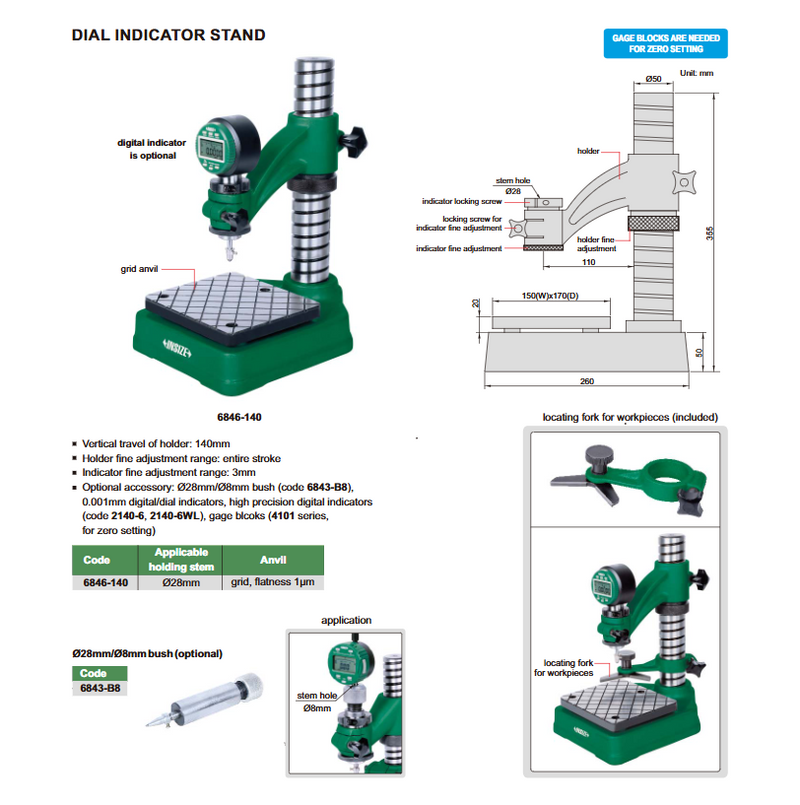

Technical Specifications
-
Vertical travel of holding base: 140mm
-
Holding base micrometer: full travel
-
Dial indicator micrometer: 3mm
-
Holding stem: Ø28mm
-
Platform: with grid, flatness 1μm
-
Includes a mounting fork for workpieces
-
Optional accessory: adapter Ø28mm/Ø8mm (code 6843-B8), dial indicators 0.001mm and high precision (codes 2140-6, 2140-6WL), calibrated blocks (series 4101 for zeroing)
Description
This base is used for supporting and precise adjustment of dial indicators for height or depth measurements. It features a platform with a grid for stable placement of components and micrometers for precise adjustments. Includes a locating fork for proper alignment of workpieces.
