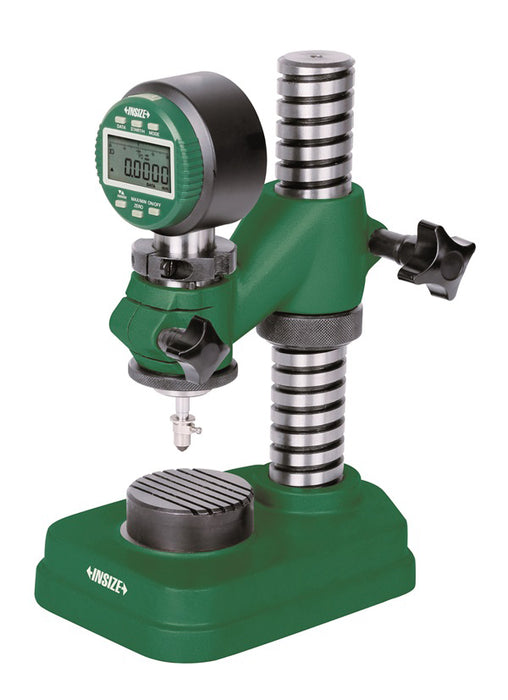

Base for dial indicator with 3 mm fine adjustment
6845
| Κωδικός | For Ø Shank | Base Material | Micrometer adjustment | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 6845-100 | 28 mm | with lines | 3 mm | €360,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

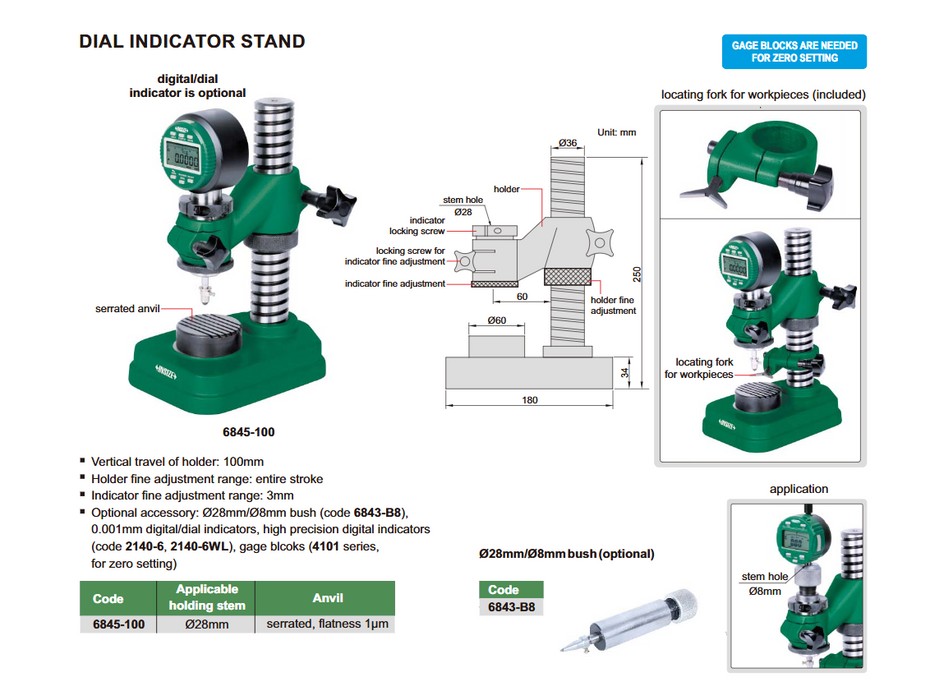

Technical Specifications
-
Vertical travel of the holding base: 100mm
-
Holding base micrometer: full travel
-
Dial indicator micrometer: 3mm
-
Holding stem: Ø28mm
-
Platform: toothed, flatness 1μm
-
Includes a locating fork for workpieces
-
Optional accessory: adapter Ø28mm/Ø8mm (code 6843-B8), dial indicators 0.001mm and high precision (codes 2140-6, 2140-6WL), calibrated blocks (series 4101 for zeroing)
Description
This base is designed for supporting dial indicators and precise adjustments during height or depth measurement. It features a toothed platform for secure placement of workpieces and integrated fine adjusters. It includes a locating fork for proper alignment of components.
