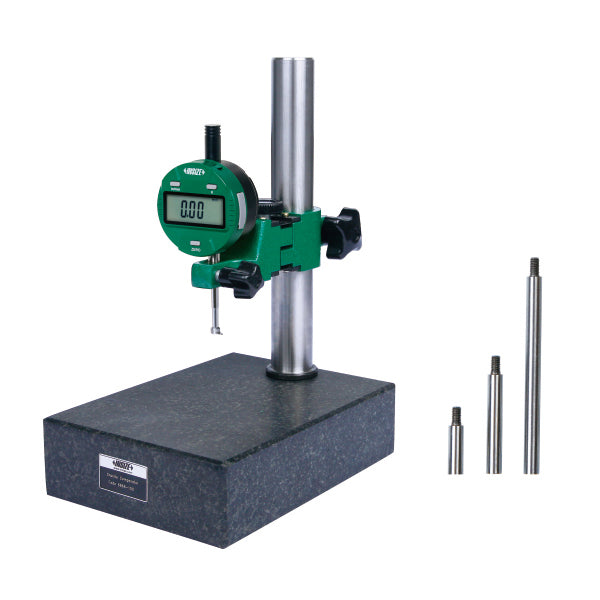

Digital groove measurement stand with Micro-Adjustment 2mm - Granite - Data Output
6870
| Κωδικός | Indicator reading | Indicator accuracy | Micro-adjustment | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 6870-150 | 0.01mm / 0.0005" | ±20 μm | 2 mm | €936,00 | Κατόπιν Παραγγελίας | ||
| 6870-1501 | 0.001mm / 0.00005" | ±5 μm | 2mm | €1.046,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

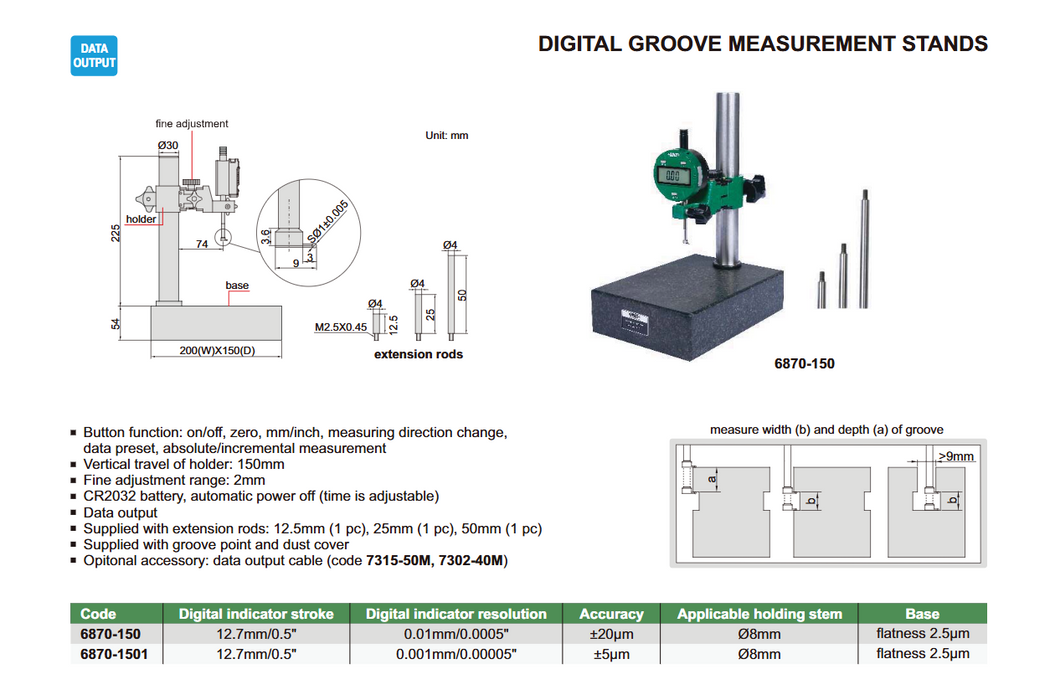

Technical Specifications
-
Dial gauge travel: 12.7mm / 0.5"
-
Vertical travel of holding base: 150mm
-
Microadjustment: 2mm
-
Base: flatness 2.5μm
-
Retaining stem: Ø8mm
-
Power supply: CR2032 battery, with automatic power off
-
Data output
-
Includes extension rods: 12.5mm (1 pc), 25mm (1 pc), 50mm (1 pc)
-
Includes nose and protective cap
-
Optional accessory: data output cable (codes 7315-50M, 7302-40M)
Description
This device is used to measure the width and depth of grooves with a digital dial indicator. The base and adjustment system allow for accurate and stable measurement on metal parts or molds.
