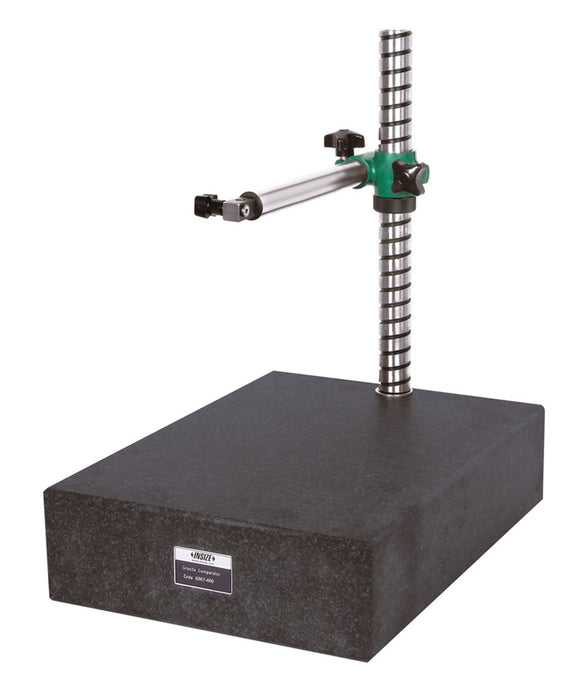

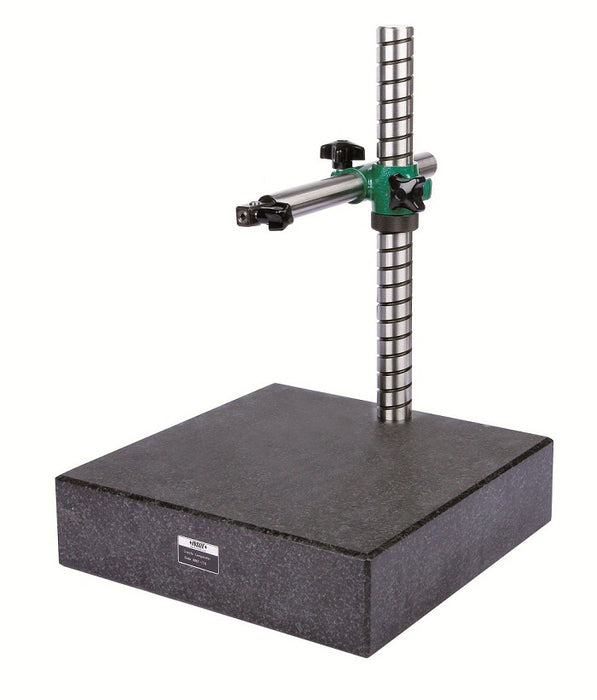

Control Base for Clock with Fine Adjustment - Granite
6867
| Κωδικός | Dimensions (mm) | Base Material | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|
| 6867-250 | 300x300 | Granite | €785,00 | 5-8 εργάσιμες | ||
| 6867-400 | 400x300 | Granite | €1.273,00 | Κατόπιν Παραγγελίας | ||
Τιμές χωρίς ΦΠΑ 24%
Technical Specifications
- Vertical travel of holder: 250 mm
- Applicable holding stem: Ø8 mm
- Base: Granite
- 6867-250: 300×300 mm, height 75 mm, flatness 2.8 μm
- 6867-400: 400×300 mm, height 100 mm, flatness 3 μm
- Fine adjustment: Present, operates through entire stroke
- Supplied with dust cover
Description
Granite dial indicator stands 6867-250 and 6867-400 are designed to securely hold Ø8 mm stem indicators. They provide high stability and flat surface accuracy. The fine adjustment mechanism operates throughout the full travel range, ensuring precise height control.
