| Measuring range Pa | ±5000 Pa |
| Reading | 1 Pa |
| Measurement range hPa | ±50.00 hPa |
| Reading | 0.01 hPa |
| Measurement range mBar | ±50.00 mbar |
| Reading | 0.01 mbar |
| Measurement range mmH2O | ±509.9 mmH2O |
| Reading | 0.1 mmH2O |
| Measurement range mmHg | ±37.50 mmHg |
| Reading | 0.01 mmHg |
| Measurement range in H2O | ±20.07 inH2O |
| Reading | 0.01 inH2O |
| Measurement range in Hg | ±1.476 inHg |
| Reading | 0.001 inHg |
| Measurement range psi | ±0.725 psi |
| Reading | 0.001 psi |
| ozin² measuring range | ±11.60 ozin² |
| Reading | 0.01 ozin² |
| Bar measuring range | ±0.050 bar |
| Reading | 0.001 bar |
| kPa measuring range | ±5,000 kPa |
| Reading | 0.001 kPa |
| Further specifications | |
| Display | LCD |
| Accuracy | ±0.3 % of full scale @25 °C / 77 °F |
| Repeatability | ±0.2 % of full scale (maximum ±0.5 % of full scale) |
| Linearity | ±0.29 % of full scale |
| Medium | gases |
| Maximum pressure | 2 psi |
| Measuring rate | 2 Hz |
| Battery status indicator | appears when the battery voltage is too low |
| Exceeding the measurement range | "OL" |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing |
| Storage conditions | -10 ... 60 °C / 14 ... 140 °F, <90 % RH, non-condensing |
| Hose connection | 2 x 8 mm / 0.078 x 0.315" |
| Power | 3 x 1.5 V batteries |
| Dimensions | 140 x 52 x 28 mm / 5.5 x 2.0 x 1.1" |
| Weight | 130 g / 4.58 oz |
Meter for determining differential pressure / For gases / LC display /
Measuring range ±5000 Pa / For portable use / 11 different pressure units
Measuring range ±5000 Pa / For portable use / 11 different pressure units

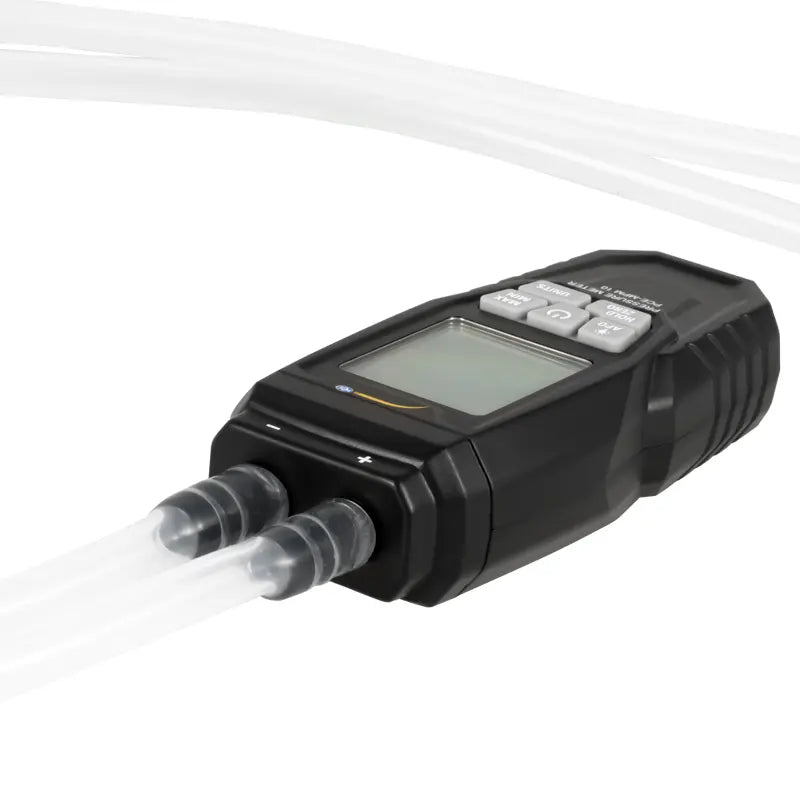

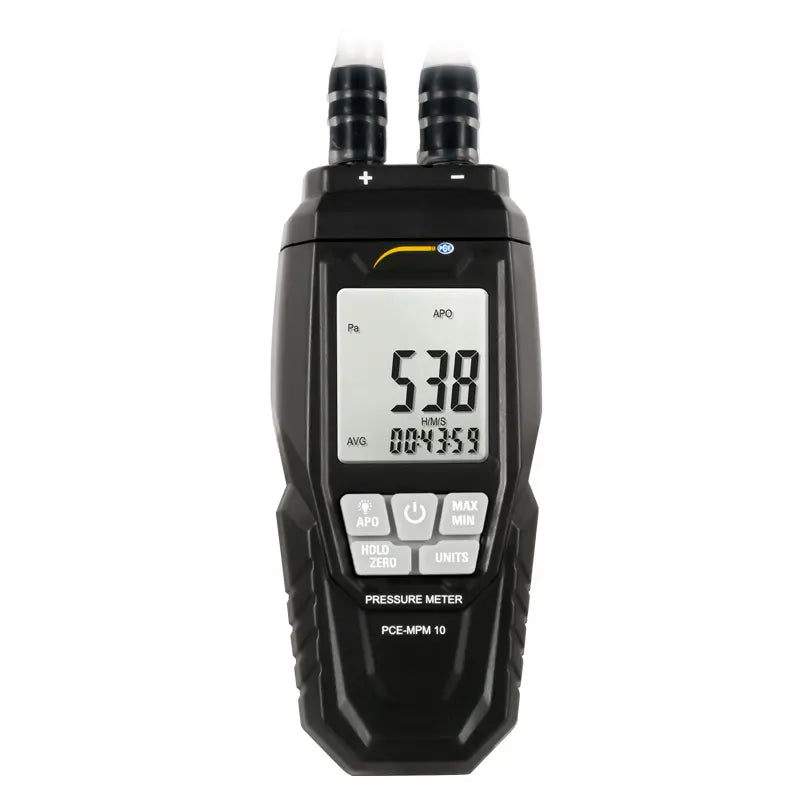

The PCE-MPM 10 manometer is a small and easy-to-use device for determining differential air pressure. The pressure meter has a measuring range of ±5000 Pa. The pressure meter connects via two hose connections with a diameter of 8 mm. After activation, the manometer directly shows the differential pressure with the ability to display the measurement in 11 different units. The pressure meter can be used in many application fields such as ventilation and air conditioning technology, in educational institutions like technical schools and universities.

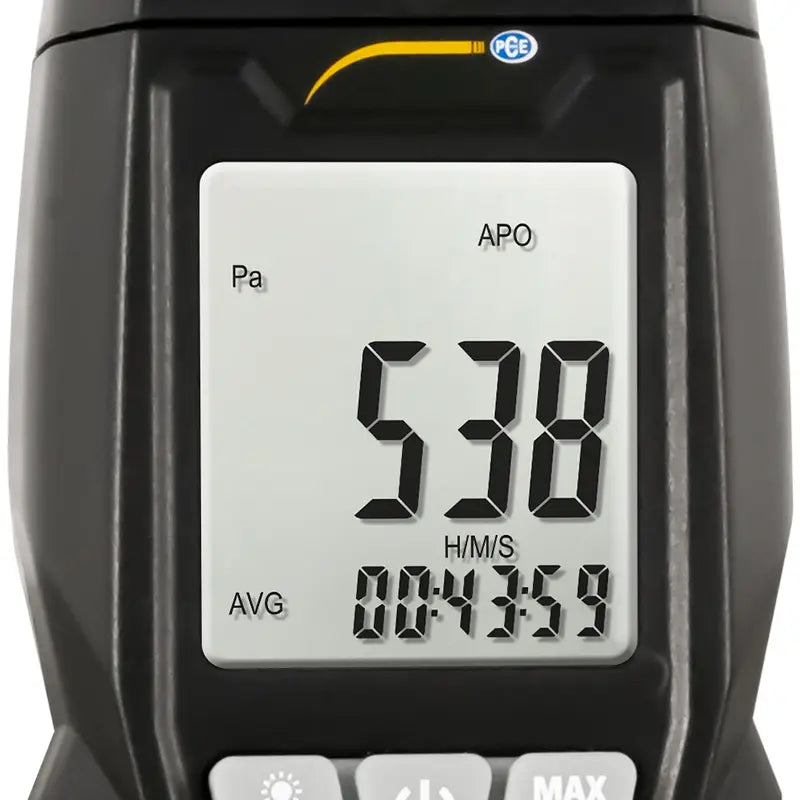

Besides the measured value, the PCE-MPM 10 also displays the minimum, maximum, and average measurement values. The meter automatically switches off after 5 minutes of inactivity.
Besides the measured value, the PCE-MPM 10 also displays the minimum, maximum, and average measurement values. The meter automatically switches off after 5 minutes of inactivity.
- 11 different pressure units
- Measuring range: ±5000 Pa
- Zero point calibration
- Relative pressure meter
- Small and ergonomic design
- Average measurement

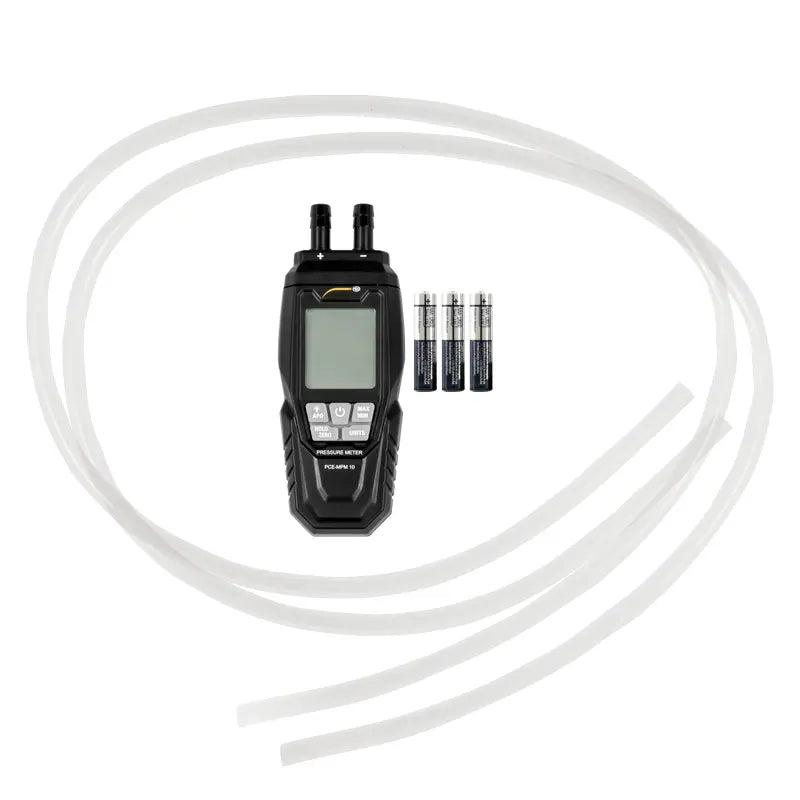

Package contents
1 x PCE-MPM 10
2 x 1 m / 3.3 ft hose connection
3 x 1.5 V battery
1 x Instruction manual
2 x 1 m / 3.3 ft hose connection
3 x 1.5 V battery
1 x Instruction manual
1 Year Warranty
