Measurement range (±) in of H2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar |
55.40 2.000 137.8 13.79 4.072 103.4 32.00 4.612 140.6 0.140 0.137 |
|
Reading in of H2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar |
0,01 0,001 0,1 0,01 0,001 0,1 0,01 0,001 0,1 0,001 0,001 |
| Accuracy (at +25 °C / +77 °F) | ± 0.3% of the measurement range |
| Linearity | ± 0.2% |
| Response time | Approximately 0.5 seconds |
| Maximum pressure | 689 mbar |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | -10 ... 60°C / 14 ... 140°F |
| Medium | Air and non-flammable gases |
| Real-time data logging interval | 1 second to 24 hours, adjustable |

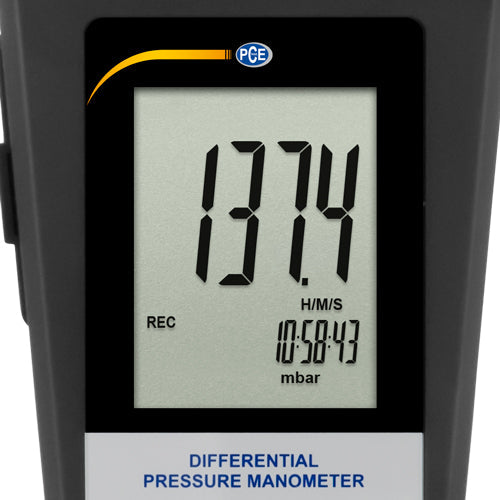

| Display | Dual LCD |
| Dimensions | 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 inches (H x W x D) |
| Weight (without batteries) | 650 g / 1.44 lbs |
| Power |

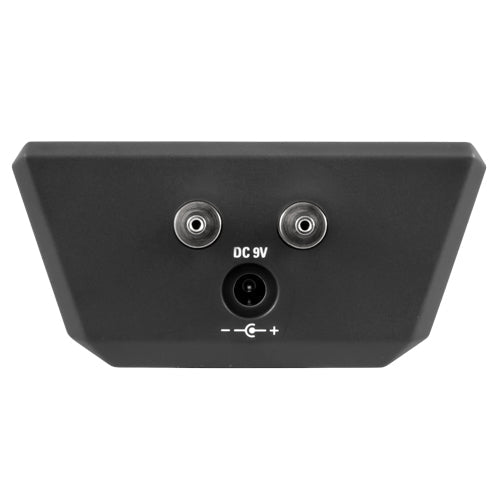

Battery: 1 x 9V AC adapter: 9V DC / 500-mA |
with a measurement range of ±140 mbar, including software

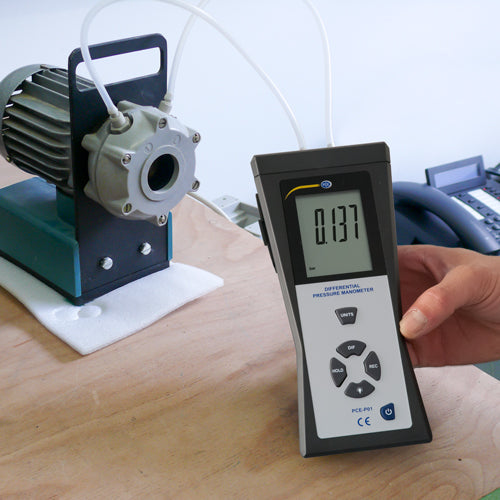

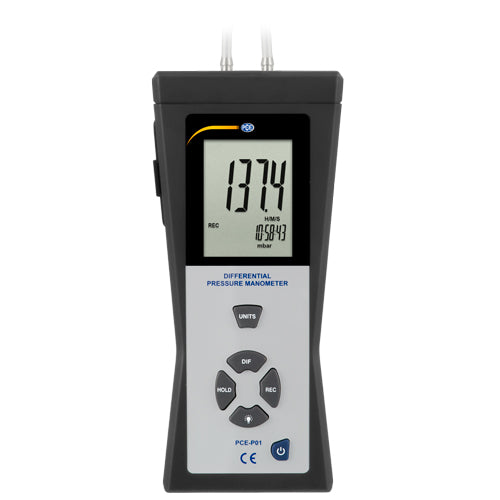

The PCE-P01 differential pressure meter is a robust, compact, and complete manometer for pressure measurement with 11 adjustable measurement units. The minimum, maximum, and average values of your measurement can be displayed alongside the current measured value on the large screen of the differential meter. For example, if you want to analyze and document pressure fluctuations, you can use the included software, with which you can, for example, transfer the measured values to a computer and display them graphically and in table form.
- Easy operation
- Measurement of differential and static pressure in 11 selectable units: mbar, bar, psi, kPa, ...
- Measurement range from -140 to +140 mbar
- Display of minimum, maximum, and average values
- "Hold" function
- Backlight can be turned on and off
- For long-term measurements with power supply

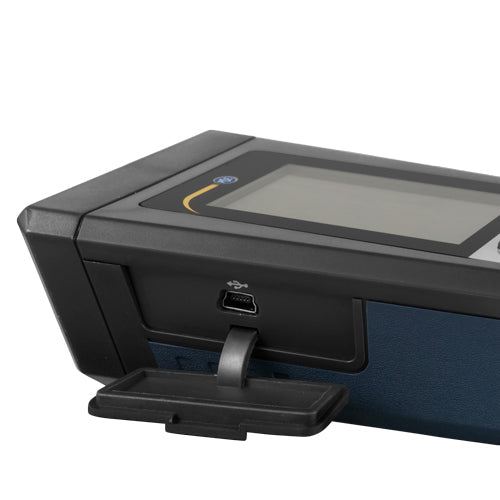

- Software with USB cable
- Battery level indicator
- Auto power-off function that can be disabled
- Zero point adjustment capability at any time

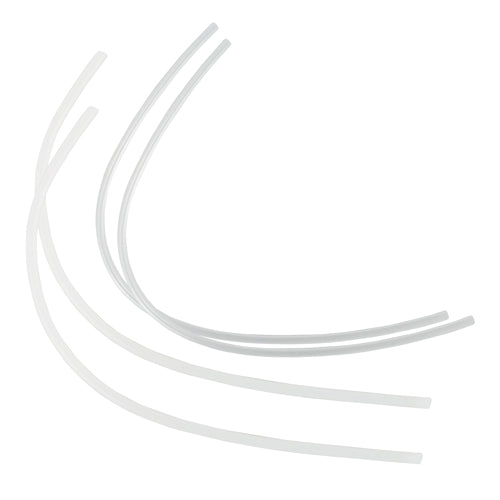

4 x 30cm / 11.8" silicone tube
1 x Software with USB cable
1 x 9V battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual
1 Year Warranty
| SKU | Range | Reading | Accuracy | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| PCE-P01 | ±0.140 bar | 1 mbar | ± 0.3% Full Scale | 1 available |
+VAT
€188,00
|
5-8 business days
|
