| Measurement range | 0 ... 400 bar (depending on the sensor) | |||
| Selectable units |
bar, psi, kg/cm 2, mm/Hg, in/Hg, m/H 2 O, in/H 2 O, atm |
|||
| Pressure connection | Optional, 5V DC, maximum sensor output is 100 mV DC (see also for ranges) | |||
| Zero reset | Via keyboard | |||
| Automatic power off | Yes (this function can be disabled) | |||
| Functions | Pressure measurement, min, max and hold | |||
| Measuring rate | Approximately every 0.8 seconds | |||
| LCD display | Approximately 52 x 38 mm / 2.05 x 1.50 in | |||
| Memory | SD card up to 16 GB | |||
| Material | ABS plastic | |||
| Software | Optional | |||
| Power supply |
6 x 1.5V AA batteries AC power cable (optional) |
|||
| Dimensions | Approximately 177 x 68 x 45 mm / 6.97 x 2.68 x 1.77 in | |||
| Weight | Approximately 350 g / < 1 lb | |||
| Operating temperature | 0 ... 50°C / 32 ... 122°F | |||
| Operating humidity | 0 ... 80% rh | |||

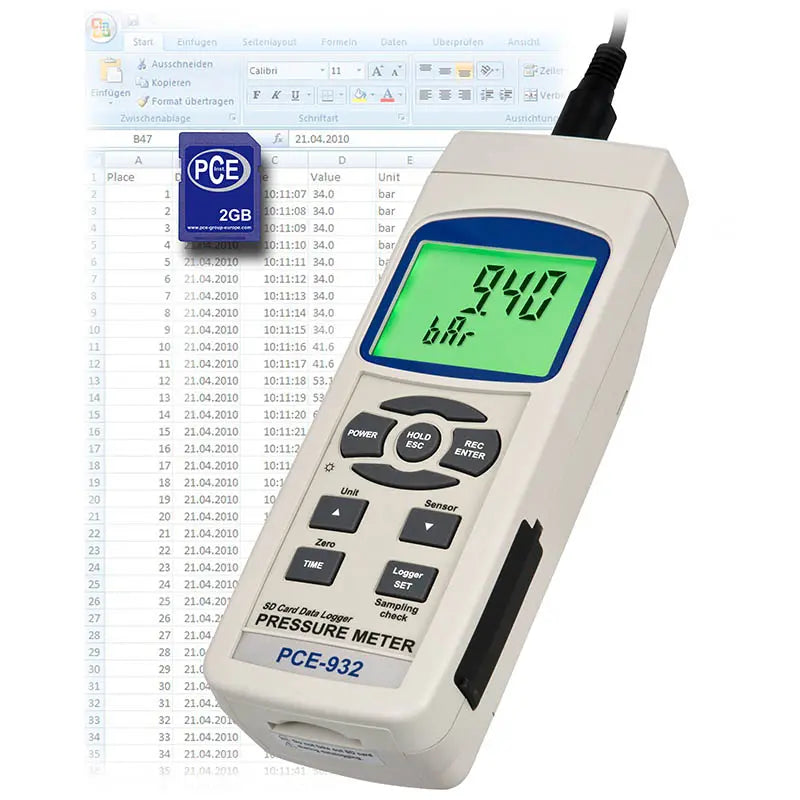

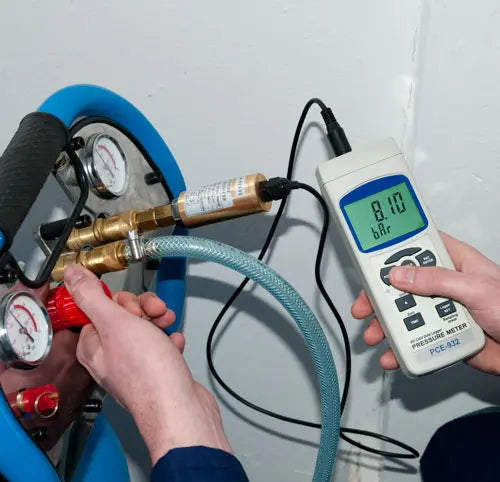

The PCE-932 is an easy-to-use, digital, portable device for measuring high pressure in hydraulic systems and compressor systems, pumps, tanks, and silos in chemical, processing industries, plastics industries, and HVAC. This portable pressure measuring device can be connected to pressure sensors with a range of up to 400 bar (each with a 1.2 m / 3.9 ft connection cable).
Note: Pressure sensors are sold separately.
Measurement values are stored in a Microsoft Excel compatible format on an SD memory card, which included in the package. The PCE-932 is delivered factory calibrated.
- Measurement range: 0 to 400 bar, depending on the sensor
- Measures system pressure in all media (e.g., gases, liquids, etc.)
- MAX, MIN, HOLD functions
- No recalibration required when changing sensors
- 8 different measurement units
- Accepts SD cards up to 16 GB
- Includes automatic power-off for energy saving (can be disabled), low battery indicator, and adjustable measurement rate
- Provides high accuracy and quality at an affordable price
- Features RS-232 output for real-time data transfer to a computer (optional software required)
- Ideal for research and development applications as well as testing and optimization processes
***Sensors are sold separately.
1 x SD card (2 GB)
1 x User manual
