| Measurement range | -14.5 ... 43.5 psi, -1 ... 3 bar |
| Reading | 0.0145 psi, 0.001 bar |
| Accuracy | 0.25% FSO |
| Pressure | Relative |
| Overpressure | 1.5 times |
| Measurable media | Gases, water |
| Response time | < 50 ms |
| Material | Metal |
| Measuring units | Mpa, bar, Kpa, mH2o, kg / cm², |
| psi, mmH2o, in.WC, mbar | |
| Sealing class | IP56 |
| Display | 2,5" |
| Dimensions (without sensor) | Ø80 x 50 mm / 3.1 x 2 in |
| Pressure connection | 1/4" NPT |
| Power supply | 3 x 1.5V AAA batteries |
| Environmental conditions | -10 ... 60°C / 14 ... 140°F, < 80% RH |
| Weight | Approximately 276 g / < 1 lb (without batteries) |
Pressure gauge PCE-DPG 3
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator

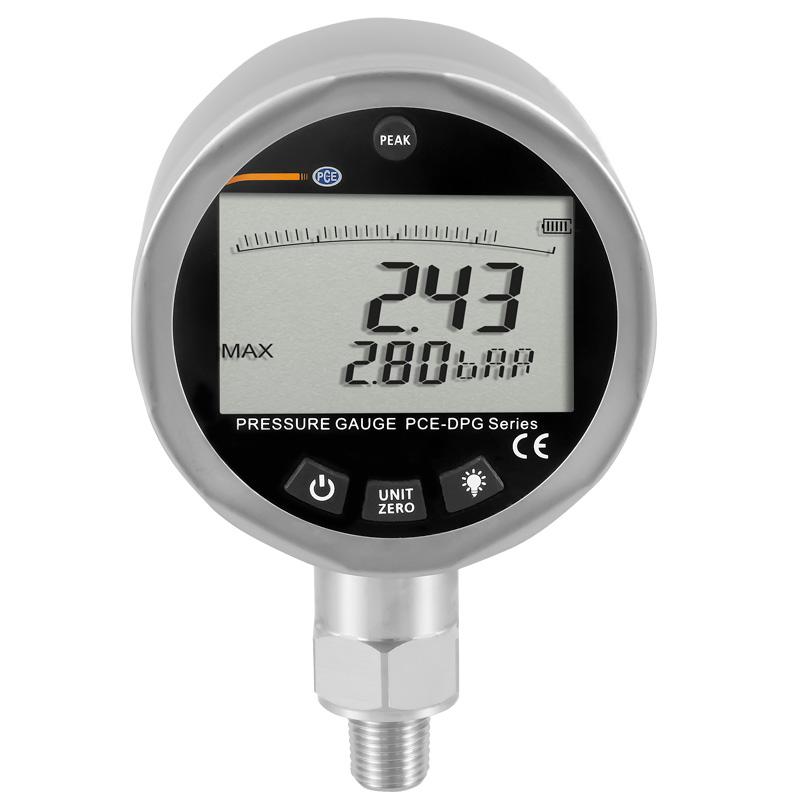

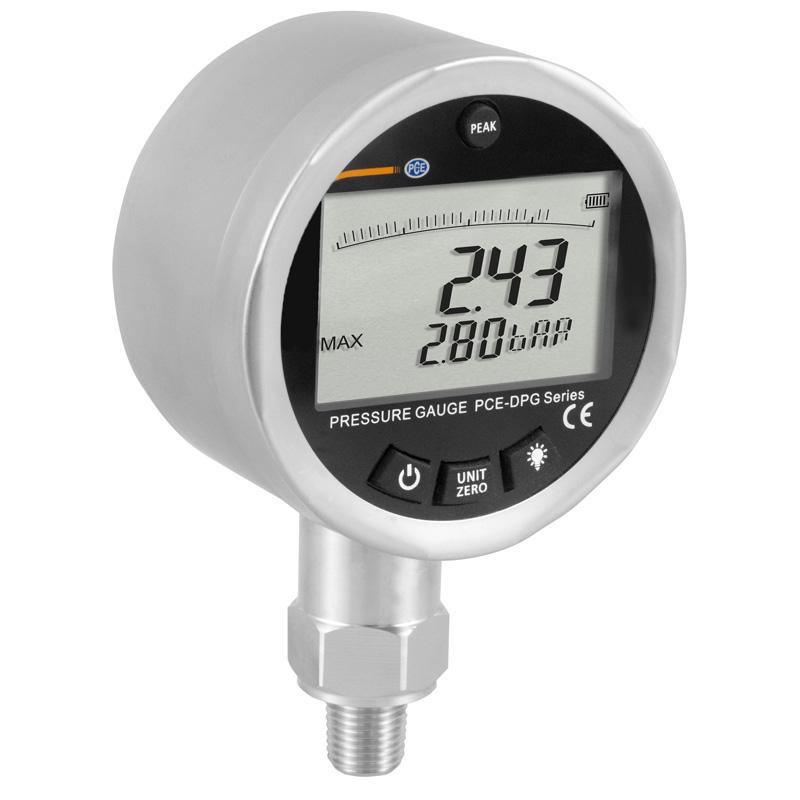

The PCE-DPG series pressure gauge is suitable for monitoring and displaying the pressure of gases and water. Thanks to the high reading and measurement accuracy, this pressure gauge is quite versatile. The current pressure value is displayed numerically and simultaneously graphically as a bar graph. With the press of a button, the user can read the maximum and minimum pressure values measured by the gauge on the display, as it features a peak function.

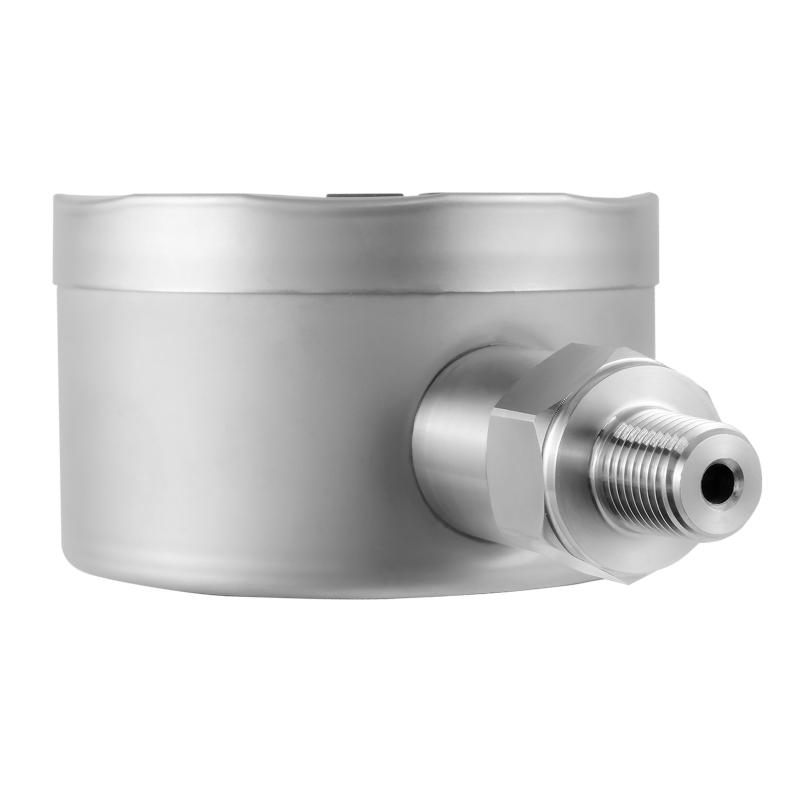

The pressure gauge allows selection of the measurement unit; possible adjustable units are Mpa, bar, Kpa, mH2o, kg/cm2, psi, mmH2o, in.WC, and mbar. The response time of the pressure gauge is < 50 ms. The pressure gauge connection is made via NPT 1/4". Typical applications include suction control, leak testing, or pressure monitoring.
- Measurement range up to 43.5 psi, 3 bar
- Numeric and bar graph value display
- Battery power supply 3 x 1.5 V AAA
- Large 2.5" display
- Adjustable backlight
- NPT 1/4" connection thread
Package contents
1 x PCE-DPG 3 pressure gauge
3 x 1.5V AAA batteries
1 x User manual
Quote
| SKU | Range | Reading | Thread | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| PCE-DPG 3 | -1...3 bar | 0.001 bar | 1/4 NPT | 1 available |
+VAT
€402,00
|
+ €50,00
5-8 business days
|
|
| PCE-DPG 6 | 0...6 bar | 0.001 bar | 1/4 NPT | 1 available |
+VAT
€402,00
|
+ €50,00
5-8 business days
|
|
| PCE-DPG 10 | 0...10 bar | 0.01 bar | 1/4 NPT | 1 available |
+VAT
€402,00
|
+ €50,00
5-8 business days
|
|
| PCE-DPG 25 | 0...25 bar | 0.01 bar | 1/4 NPT | 1 available |
+VAT
€402,00
|
+ €50,00
5-8 business days
|
|
| PCE-DPG 100 | 0...100 bar | 0.01 bar | 1/4 NPT | 1 available |
+VAT
€402,00
|
+ €50,00
5-8 business days
|
|
| PCE-DPG 200 | 0...200 bar | 0.1 bar | 1/4 NPT | 1 available |
+VAT
€402,00
|
+ €50,00
5-8 business days
|
