| Pressure measuring range | -100 ... 2000 kPa relative |
| Reading | 0.01 kPa, 0.1 kPa |
| Accuracy | <± 0.5% of the measuring range |
| Nominal pressure | 2000 kPa |
| Overpressure | 2000 kPa |
| Burst pressure | 3000 kPa |
| Measuring media |
Liquid Air Non-flammable gases |
| Measuring rate | 10 Hz |
| Measuring units (adjustable) | Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF |
| Measurement parameter | Relative pressure |
| Pressure connection | 5 mm (0.2 in) nipple for quick connection |
| Max, Min and Hold functions | Max, Min and Hold |
| Data logger |
1024 memory slots 1 s ... 255 h recording time per memory slot 1 s ... 24 h recording interval |
| Zero calibration | Yes, with zero key |
| Average | Yes, between 0.1 ... 9.9 s |
| Display | LCD with backlight |
| Sealing class | IP41 |
| Power supply |
2 x 1.2V NiMh batteries 5V / 500-mA USB power supply |
| Power consumption |
50-mA (with backlight) 10-mA (without backlight) |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | 10 ... 55°C / 50 ... 131°F |
| Dimensions | 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in |
| Weight | Approximately 285 g / < 1 lb |

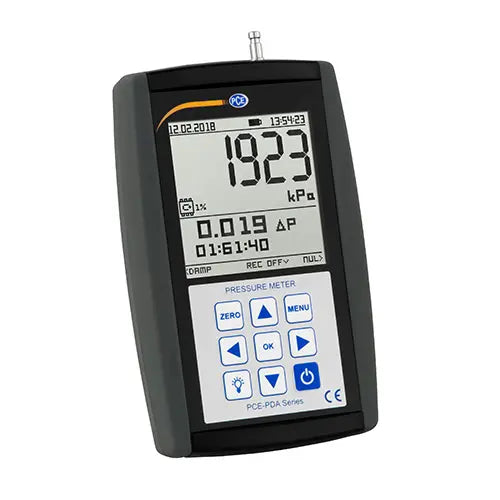

PCE-PDA 1000L pressure gauge
Digital pressure meter for measuring relative pressure from -100 ... 2000 kPa / Data logger / MAX MIN HOLD functions / USB interface / Graphic LCD

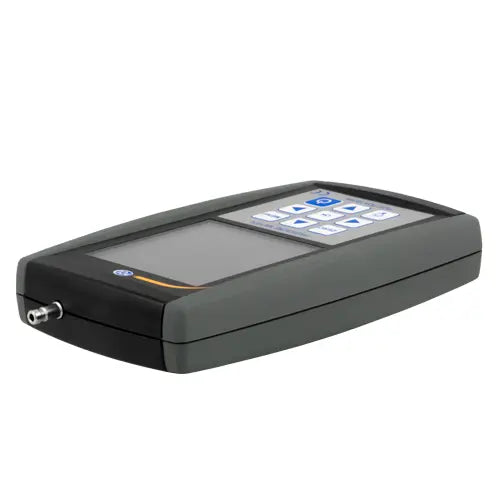

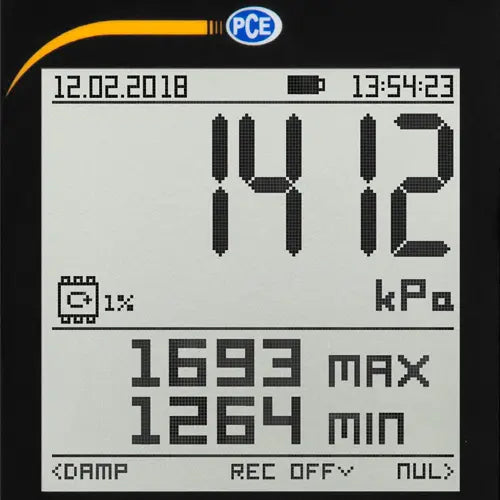

The PCE-PDA 1000L pressure gauge measures the relative pressure in machines and systems with a measurement range of -100 ... 2000 kPa. The relative pressure gauge has a quick coupling connection through which air pressure or water pressure can be applied directly to the device. In addition to measuring in kPa, the user has the option to select another navigation language. The measured value, the maximum and minimum values are displayed on the meter's LCD screen as it also features a data hold function on the screen (HOLD). Additionally, at the bottom of the screen, the system temperature and the pressure difference in case of a possible leak are displayed.
The PCE-PDA 1000L features a data logger with 1024 memory slots with recordings up to 255 hours for each slot. Software is available for the relative pressure gauge to evaluate the stored measured values. The pressure gauge for relative pressure is powered by 2 AA batteries but can also be powered with rechargeable batteries, which are charged via a microUSB port.
- LCD display
- USB output
- Data logger
- Measurement of relative pressure and vacuum
- Adjustable measurement units
- MAX MIN HOLD functions
- Smoothing of measured value
2 x 1.2V NiMh batteries
1 x USB Transformer
1 x Micro USB Cable
1 x User manual
