| Pressure measuring range | 0 ... 200 kPa, absolute |
| Reading | 0.01 kPa, 0.1 kPa |
| Accuracy | <± 0.5% of the measuring range |
| Nominal pressure | 200 kPa |
| Overpressure | 200 kPa |
| Burst pressure | 300 kPa |
| Measuring medium |
Liquid Air Non-flammable gases |
| Measuring rate | 10 Hz |
| Measuring units | Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF |
| Parameter | Absolute pressure |
| Pressure connections | 5 mm nipple for quick connections |
| Function | Max, Min and Hold |
| Data logger |
1024 memory slots 1 s ... 255 h Recording time per memory position 1 s ... 24 hours recording interval |
| Zero calibration | Yes, with zero key |
| Average | Yes, between 0.1 ... 9.9 s |
| Display | LCD with backlight |
| Sealing class | IP41 |
| Power supply |
2 x 1.5V AA battery / 1.2V NiMh battery 5V / 500-mA USB power supply |
| Consumption |
50-mA (with backlight) 10-mA (without backlight) |
| Operating temperature | 0 ... 50°C / 32 ... 122 °F |
| Storage temperature | 10 ... 55°C / 50 ... 131 °F |
| Dimensions | 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in |
| Weight | Approximately 285 g / < 1 lb |

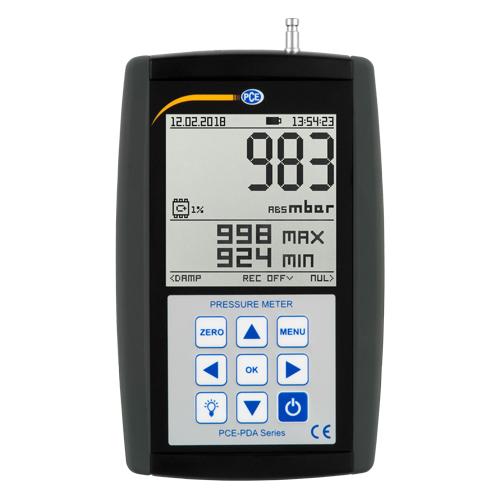

PCE-PDA A100L Pressure Gauge
for measuring barometric absolute pressure up to 200 kPa / Data logger / LCD display / USB output / MAX MIN HOLD functions

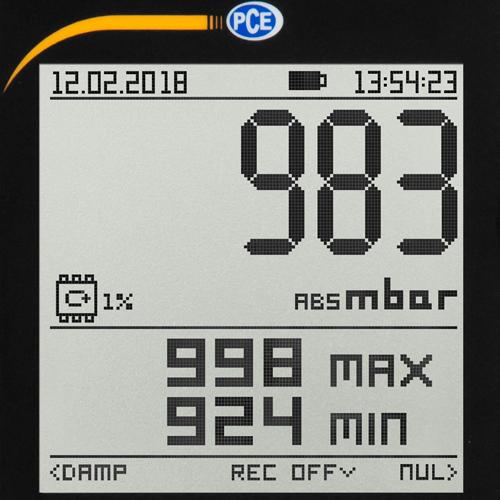

The pressure gauge The PCE-PDA A100L is suitable for measuring atmospheric pressure from a built-in sensor with a measuring range of 0-200 kPa. The pressure gauge It can be used in many applications in industry. MIt can operate either with simple batteries or rechargeable batteries, which can be charged via the USB cable included in the package. The The PCE-PDA A100L is equipped with a large LCD display with backlight that facilitates reading the measurements even under adverse conditions.

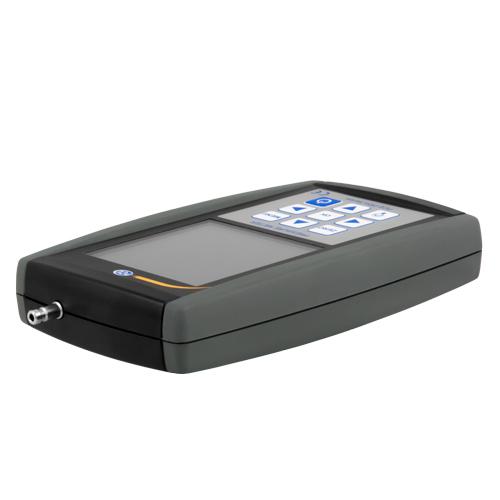

A plug-in nipple is available from the pressure connection. In these, air and liquid pressure can be transferred through quick couplings to the sensor. The pressure gauge features a function that allows ten times the accuracy of the measured value. In addition to continuous pressure measurement, the display shows the maximum and minimum measured values as well as the temperature directly on the screen. For storing the measured values for further documentation purposes, the pressure gauge features a data logger, where the user can specify a storage interval and a recording period during which the pressure values are stored. With the press of a button, this storage can be recalled on the display.
- LCD display
- USB output
- Data logger
- Absolute pressure measurement
- Different measurement units
- MAX MIN HOLD functions
- Smoothing of measured value
- Built-in temperature measurement

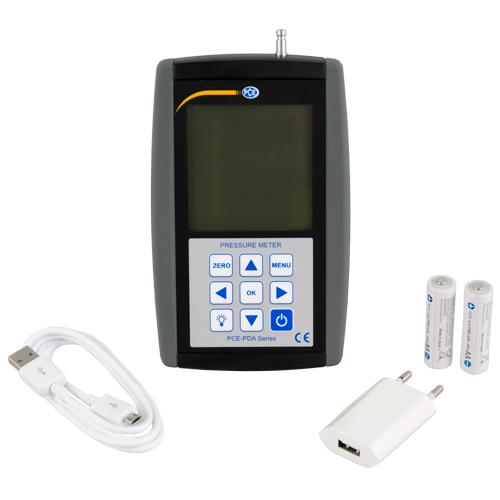

2 x 1.2V AA NiMh batteries
1 x USB Transformer
1 x Micro USB Cable
1 x User manual
