Product Characteristics
Data Out
USB
| Measuring range | 4 ... 20-mA, linear |
| Measurement accuracy | ± (0.5% + 2d) |
| Measurement rate | 1 s |
| LC display | 60 x 50 mm |
| Storage interval | 5, 10, 30, 60, 120, 300, 600, automatic |
| (In the storage interval "Auto", the measured value is stored only after a change of ± 10 digits) | |
| Memory card | 1 ... 16 GB |
| Incorrectly stored measurement values | < 0.1% of total memory, typical |
| Output | RS232 |
| Power supply | 9 VDC |
| Battery power supply | 6 x 1.5 V AAA (for powering the clock display) |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, < 85% RH |
| Dimensions | 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in |
| Weight | 199 g / < 1 lb |

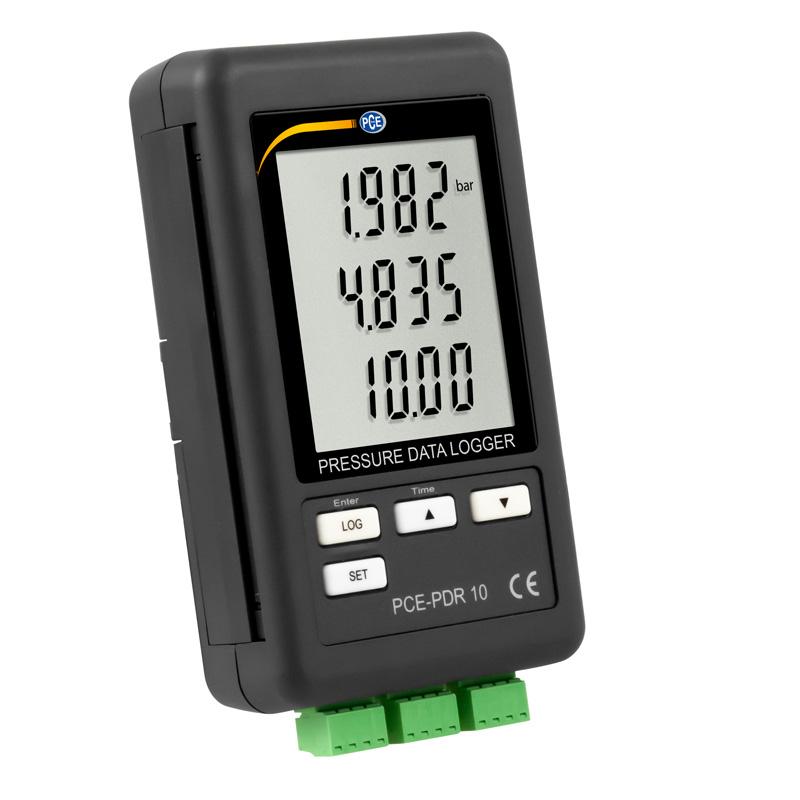

Pressure gauge PCE-PDR 10 /
Pressure data logger with three sensor connections / SD card / CSV data format / Wall mount / Battery and mains power supply / 4 ... 20-mA / LC display / Advanced storage system
Pressure data logger with three sensor connections / SD card / CSV data format / Wall mount / Battery and mains power supply / 4 ... 20-mA / LC display / Advanced storage system

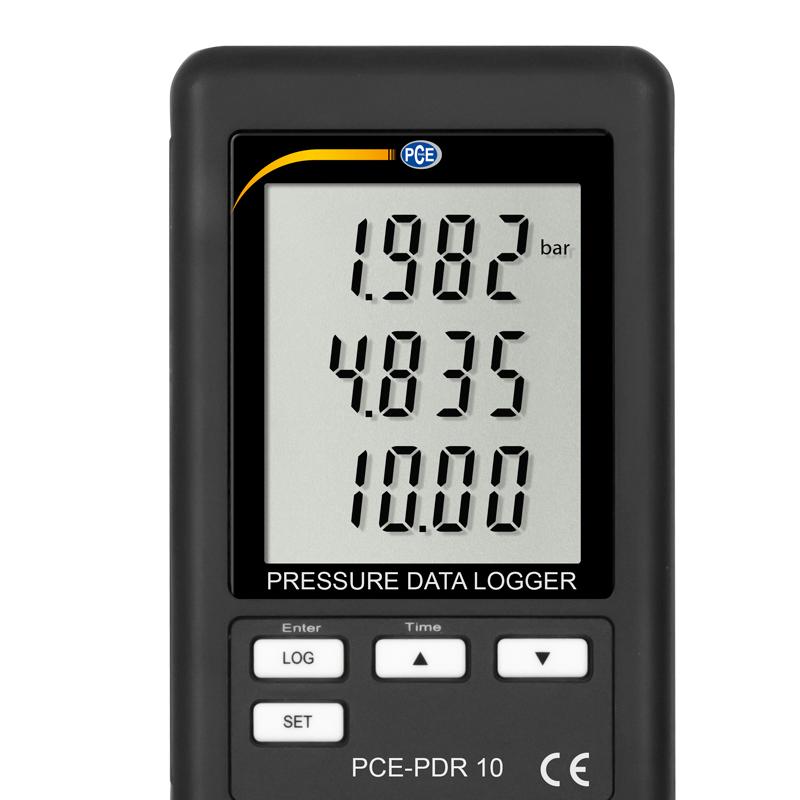

The PCE-PDR 10 pressure gauge is a pressure recorder with a display, where the measurements are shown. The gauge has three inputs for pressure sensors, which can be connected and read simultaneously. Thanks to the 4 ... 20 mA input signal, many different sensors can be connected. The PCE-PDR 10 also features an advanced storage system, in which measured values can be stored only after a change of ± 10 digits. Therefore, constant and repeatable measured values are filtered and not stored again by the pressure data logger, saving storage space.
With the base, the pressure data logger can be freely placed on a workstation. Due to the supplied wall mounting set, the gauge can also be fixed to a wall.
- Measurement signal 4 ... 20 mA
- Smart storage system

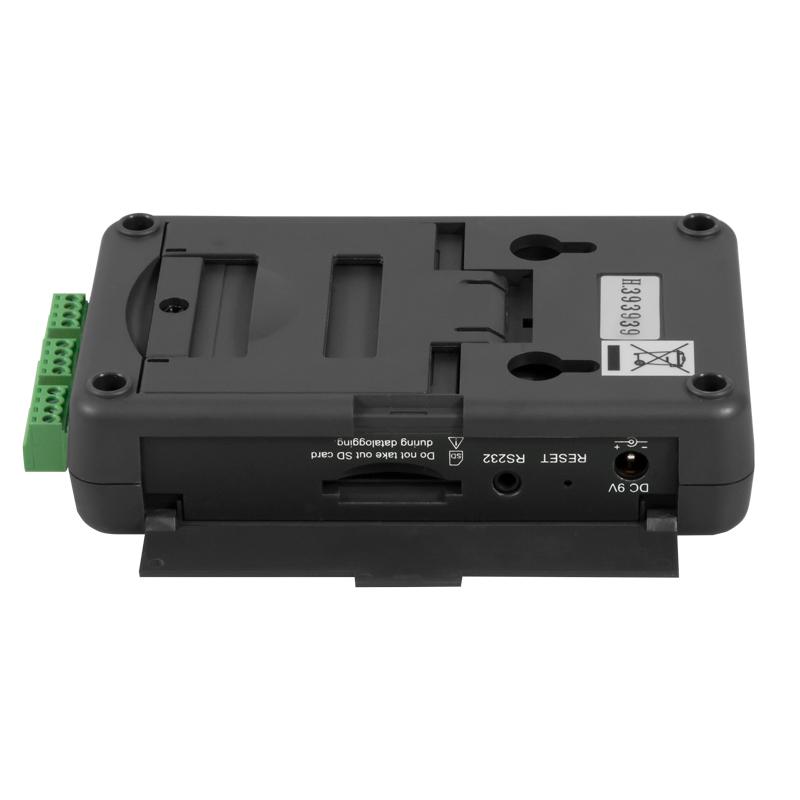

- Connection to computer via RS232
- Wall mounting for permanent installation
- SD card slot up to 16 GB

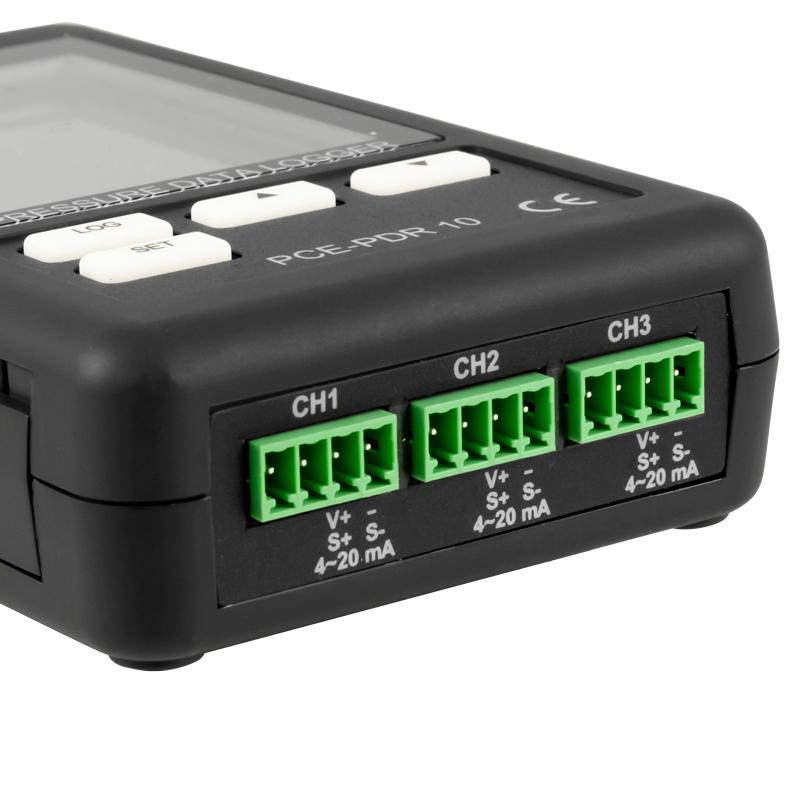

- Measurement of three pressure sensors simultaneously

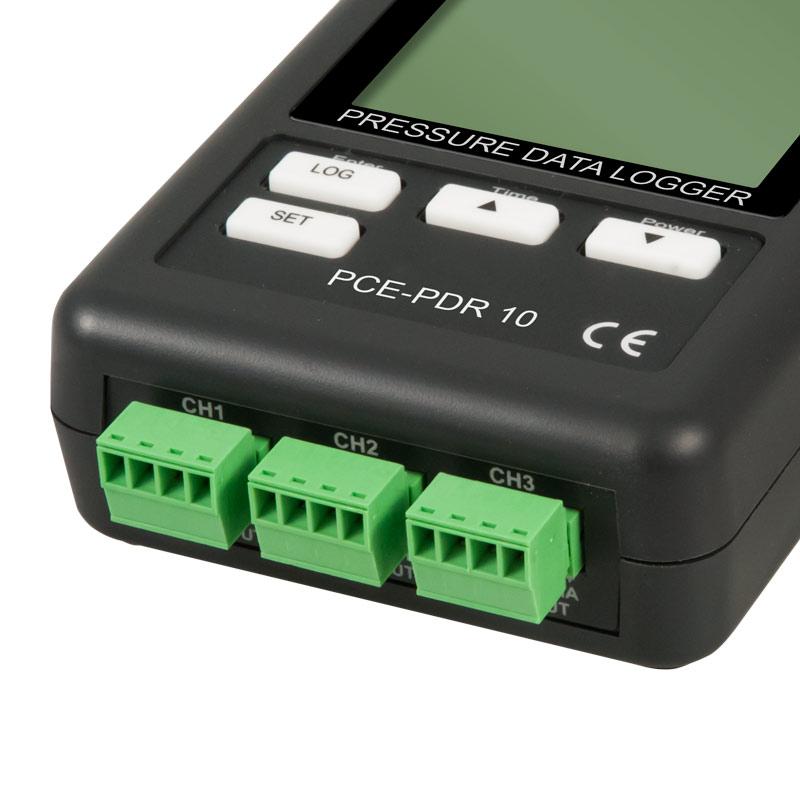

- Terminal connection
- Base for use in workspace
- Optional sensors

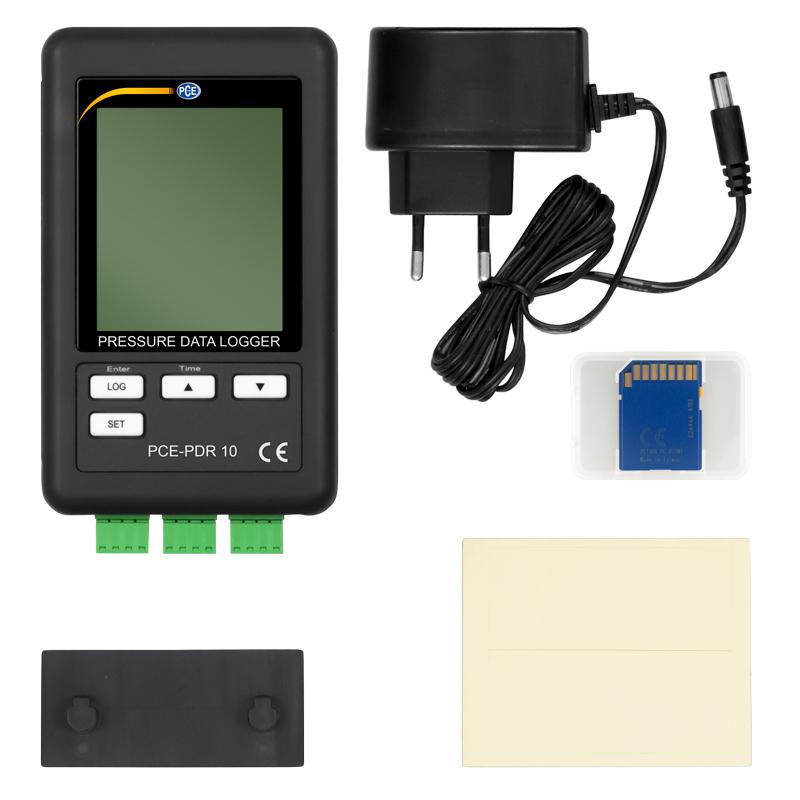

Package contents
1 x Pressure gauge PCE-PDR 10
1 x Power supply 9V 1.0 A
6 x AAA batteries
1 x Wall bracket
1 x SD card
1 x Operating instructions
1 x Power supply 9V 1.0 A
6 x AAA batteries
1 x Wall bracket
1 x SD card
1 x Operating instructions
***Sensors are optional
