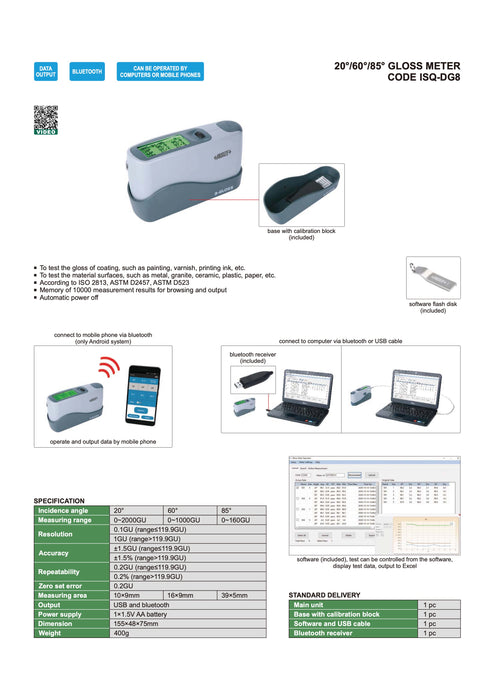

Gloss Meter 20° 60° 85°
ISQ-DG8
Specifications
-
Incidence angle: 20°, 60°, 85°
-
Measuring range: 0–2000GU (20°), 0–1000GU (60°), 0–160GU (85°)
-
Resolution:
-
0.1GU (for values ≤119.9GU)
-
1GU (for values >119.9GU)
-
-
Accuracy:
-
±1.5GU (for values ≤199.9GU)
-
-
Repeatability:
-
±0.2GU (for values ≤119.9GU)
-
-
Zero set error: 0.2GU
-
Measuring area:
-
10×9mm (20°), 16×9mm (60°), 39×5mm (85°)
-
-
Output: USB and Bluetooth
-
Power supply: 1 × 1.5V AA battery
-
Dimension: 155×48×75mm
-
Weight: 400g
Standard Delivery
-
Main unit: 1 pc
-
Base with calibration block: 1 pc
-
Software and USB cable: 1 pc
-
Bluetooth receiver: 1 pc
Description
Gloss meter for measuring surface gloss at 20°, 60°, and 85° angles, suitable for coatings, varnishes, inks, metals, plastics, ceramics, and paper. Complies with ISO 2813, ASTM D2457, and ASTM D523 standards. Stores up to 10,000 measurement results, operates via USB or Bluetooth with computer or Android device, and features automatic power-off.
