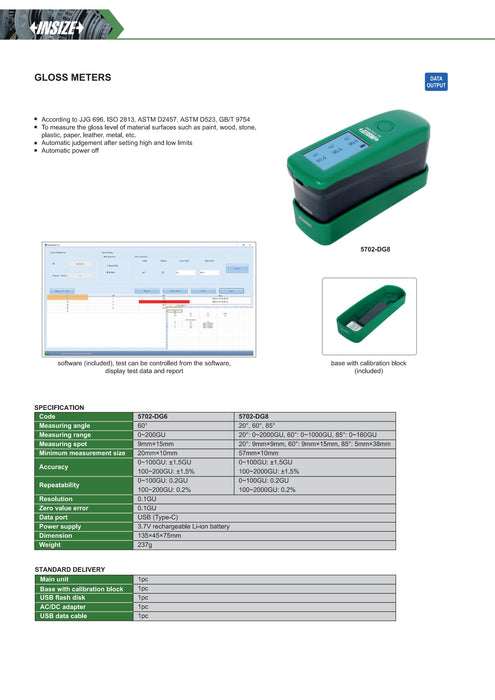

Glossmeter with Angles 20° 2000GU - 60° 1000GU - 80° 160GU (marble, plastic)
5702-DG8
Technical Specifications
-
Code: 5702-DG8
-
Measurement angle: 20°, 60°, 85° (DG8)
-
Measurement range: 20° 0-2000GU, 60° 0-1000GU, 85° 0-160GU
-
Measurement spot: 9mm×15mm (DG6), 20°: 9mm×9mm, 60°: 9mm×15mm, 85°: 5mm×38mm (DG8)
-
Minimum measurement size: 20mm×10mm (DG6), 57mm×10mm (DG8)
-
Accuracy: 0-100GU: ±1.5GU 100-2000GU ±1.5%
-
Repeatability: 0-100GU: 0.2GU 100-2000GU 0.2%
-
Reading: 0.1GU
-
Zero error: 0.1GU
-
Data port: USB (Type-C)
-
Power source: Rechargeable 3.7V lithium battery
-
Dimensions: 135×45×75mm
-
Weight: 237g
Includes
-
Main unit: 1pc
-
Stand with calibration block: 1pc
-
USB flash disk: 1pc
-
AC/DC adapter: 1pc
-
USB data cable: 1pc
Description
The gloss meter 5702-DG6/5702-DG8 is used to measure gloss on surfaces such as paint, wood, stone, plastic, paper, leather, and metal. It supports automatic evaluation based on defined limits and data storage via USB connection. The software provides control and report viewing capabilities.
