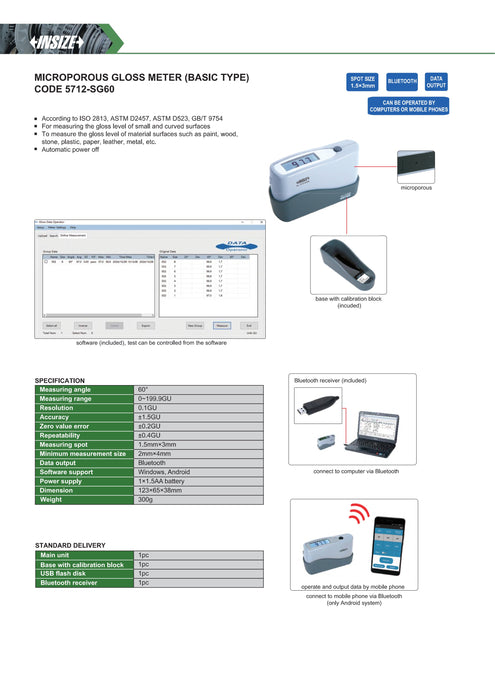

Microporous Gloss meter 60º, range 0-1000 GU
5712-SG60
Specifications
-
Measuring angle: 60°
-
Measuring range: 0–1000GU
-
Resolution: 0.1GU
-
Accuracy:
-
0–100GU: ±1.5GU
-
100–1000GU: ±1.5%
-
-
Zero value error: ±0.2GU
-
Repeatability:
-
0–100GU: ±0.2GU
-
100–1000GU: ±0.2%
-
-
Measuring spot: 1.5mm×3mm
-
Minimum measurement size: 3mm×6mm
-
Data output: USB (Type-C)
-
Software support: Windows
-
Power supply: Li-ion battery, 3.7V
-
Dimension: 102×35×51mm
-
Weight: 300g
Standard Delivery
-
Main unit: 1 pc
-
Base with calibration block: 1 pc
-
USB flash disk: 1 pc
-
Data cable: 1 pc
Description
The microporous gloss meter 5711-SG60 is used for measuring the gloss level of small and curved surfaces such as paint, wood, metal, plastic, paper, etc., up to 1000GU. It includes a fast measurement mode and quality control mode with customizable limits. The device has a built-in calibration board with user-defined values and connects to a PC via USB for data export and processing.
