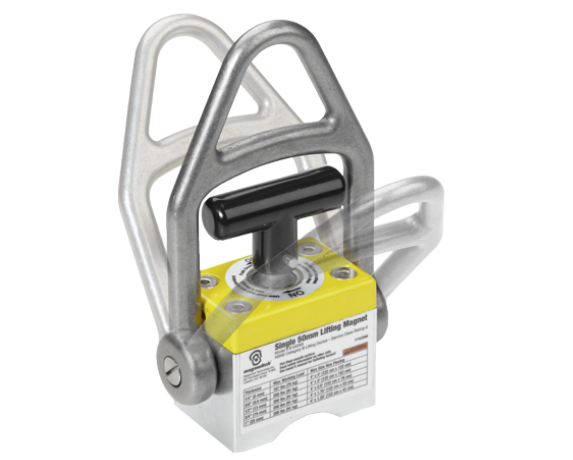

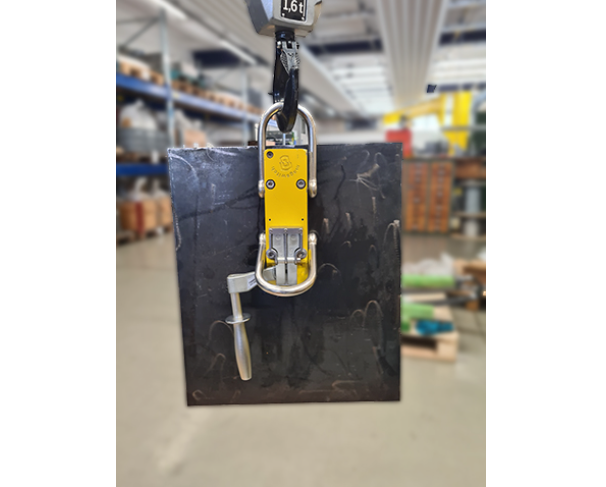

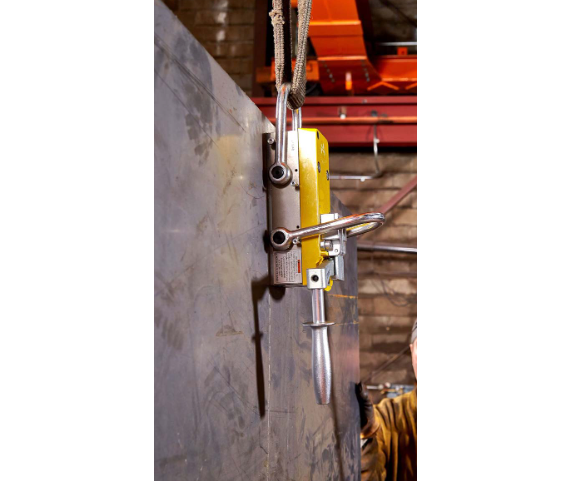

The Mlay is a manually activated permanent load lifting magnet. Through its flexible clamp, metal sheets can be transported vertically.

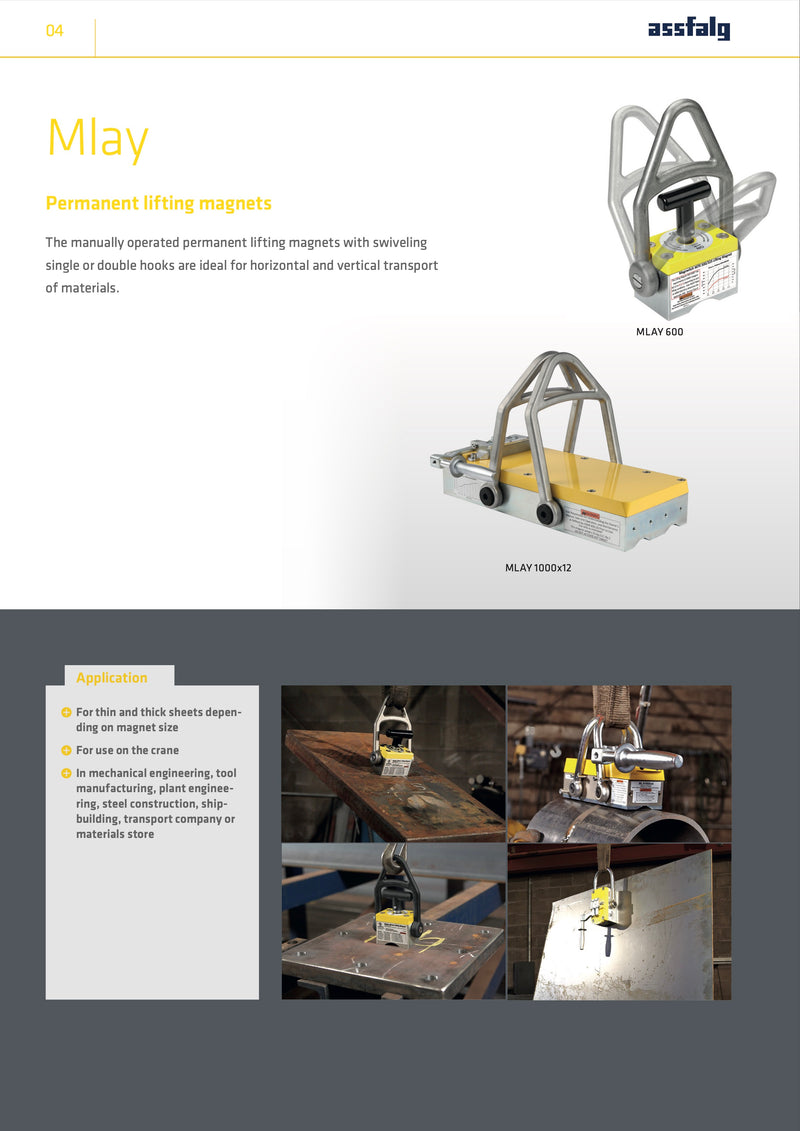

The manually activated permanent load lifting magnets with flexible single or double hooks are ideal for the horizontal and vertical transportation of materials.
A wide range of models of the Mlay lifting magnets are available with bearing loads between 90 [kg] and 1825 [kg] for different material thicknesses.
The flat magnetic field is another advantage when destacking sheets or workpieces.

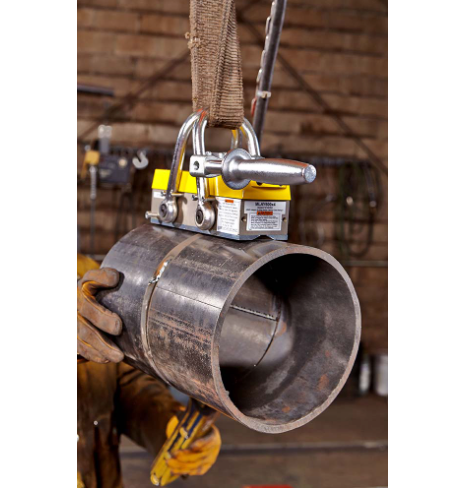

Replaceable pole shoes allow for individual solutions. They can transport, for example, angle profiles or round sticks with different dimensions.
- Absolutely safe lifting - the pull-off strength is 3 times the recommended lifting force
- The safety locking latch prevents accidental loosening under load
- No damaging of the work piece surface
- Smooth switching ON/OFF via switch lever
- Flexible single or double hook depending on magnet size
- Simple suspension on a crane
| Technical data | Dimensions [L x W x H] | Load - SWL 3:1 | Load (vertical transport) | Weight | Item No. | ||
| [mm] | Fh [kg] | Fv [kg] | [kg] | ||||
| Mlay 600 | 106 | 52 | 184 | 90 | 30 | 2,0 | 63146 |
| Mlay 600x2 | 221 | 166 | 171 | 166 | 55 | 4,3 | 64834 |
| Mlay 600x4 | 236 | 166 | 167 | 346 | 115 | 8,1 | 63477 |
| Mlay 1000 | 148 | 73 | 254 | 151 | 50 | 5,2 | 62315 |
| Mlay 1000x2 | 251 | 196 | 270 | 302 | 100 | 10,8 | 62891 |
| Mlay 1000x3 | 272 | 196 | 265 | 414 | 138 | 16,6 | 66764 |
| Mlay 1000x4 | 351 | 196 | 251 | 591 | 197 | 20,5 | 63980 |
| Mlay 1000x6 | 511 | 196 | 243 | 977 | 325 | 27,4 | 66281 |
| Mlay 1000x12 | 496 | 307 | 302 | 1825 | 608 | 55,0 | 63739 |
Quote
| SKU | Power | Thickness | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| Mlay-1000 | 151 kg | 19.1 mm | On Order |
+VAT
€780,00
|
|
| Mlay-600x2 | 166 kg | 12.7 mm | On Order |
+VAT
€1.058,00
|
|
| Mlay-1000x2 | 302 kg | 19.1 mm | On Order |
+VAT
€1.725,00
|
|
| Mlay-600x4 | 346 kg | 12.7 mm | On Order |
+VAT
€1.905,00
|
|
| Mlay-1000x3 | 414 kg | 19.1 mm | On Order |
+VAT
€2.678,00
|
|
| Mlay-600 | 90 kg | 12.7 mm | On Order |
+VAT
€495,00
|
