Technical Specifications

• Test voltages: 500V, 1000V, 2500V, 5000V

• DC voltage measurement: (30–600V), resolution: 1V, accuracy: ±(2%+3 d)

• AC voltage measurement (50/60Hz): (30–600V), reading: 1V, accuracy: ±(2%+3 d)

• Short circuit current: >3.0 mA

• Operating environment: -10°C to +40°C, <85% RH

• Data output: USB

• Power supply: 8 LR14 batteries or power adapter

• Weight: 1.28 kg

• Dimensions: 202 × 155 × 94 mm

• Functions:

  • Continuous and comparative measurement

  • Measurement with time delay, polarization index

  • AC/DC voltage measurement

  • Automatic high voltage discharge

  • Battery status indicator

  • Backlight display

  • Automatic power off

• Includes:

  • Main unit

  • 3 cables with crocodile clips

  • 8 LR14 batteries

  • Power supply

  • USB cable

Description

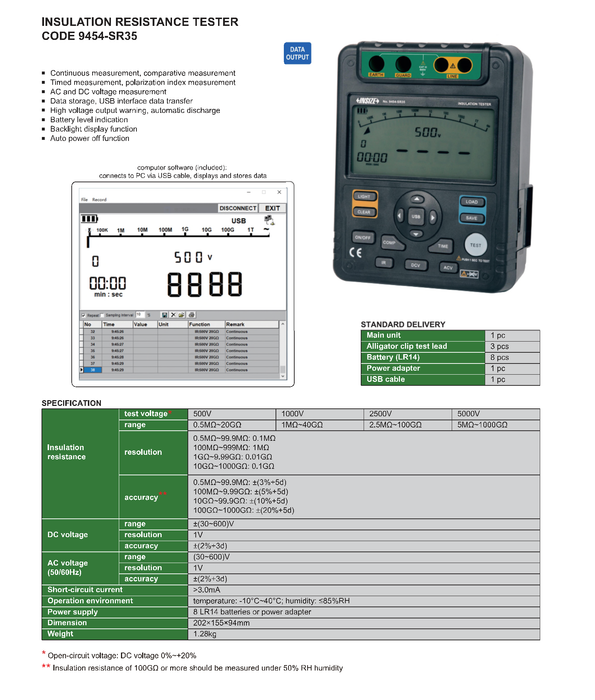

The instrument 9454-SR35 is an insulation resistance tester suitable for high voltage tests up to 5000V. It supports insulation resistance measurement up to 1000 GΩ, AC/DC voltage, as well as polarization index. It features data storage and USB connection for transferring and analyzing measurements on a computer.
