Mounted points shaft 3 mm
P
450610
| Κωδικός | Diameter (mm) | Head Length (mm) | Stem (mm) | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| ZY-816-3 | 8 | 16 | 3x30 | €2,80 | 106 διαθέσιμα | ||
| ZY-164-3 | 16 | 4 | 3x30 | €2,80 | Κατόπιν Παραγγελίας | ||
| ZY-36-3 | 3 | 6 | 3x30 | €2,70 | Κατόπιν Παραγγελίας | ||
| ZY-1013-3 | 10 | 13 | 3x30 | €2,80 | Κατόπιν Παραγγελίας | ||
| ZY-510-3 | 5 | 10 | 3x30 | €2,70 | Κατόπιν Παραγγελίας | ||
| ZY-810-3 | 8 | 10 | 3x30 | €2,70 | Κατόπιν Παραγγελίας | ||
| ZY-48-3 | 4 | 8 | 3x30 | €2,70 | Κατόπιν Παραγγελίας | ||
| ZY-613-3 | 6 | 13 | 3x30 | €2,90 | Κατόπιν Παραγγελίας | ||
| ZY-133-3 | 13 | 3 | 3x30 | €2,90 | Κατόπιν Παραγγελίας | ||
| ZY-102-3 | 10 | 2 | 3x30 | €3,00 | Κατόπιν Παραγγελίας | ||
| ZY-25-3 | 2 | 5 | 3x30 | €3,10 | Κατόπιν Παραγγελίας | ||
Τιμές χωρίς ΦΠΑ 24%
Technical Specifications
-
Product type: STEEL cylindrical mounted points
-
Suitable for: High speed steels (HSS), welds, molds and cast iron
-
Shape: ZY (cylindrical)
-
Stem diameters: 3 or 6 mm
-
Maximum rotation speed (Max. RPM): up to 206,100 rpm
-
Thread type / USA format: Various options (W 141 to W 238)
-
Grain size: Varies depending on model
-
Areas of use: grinding of internal surfaces, edges and curves
-

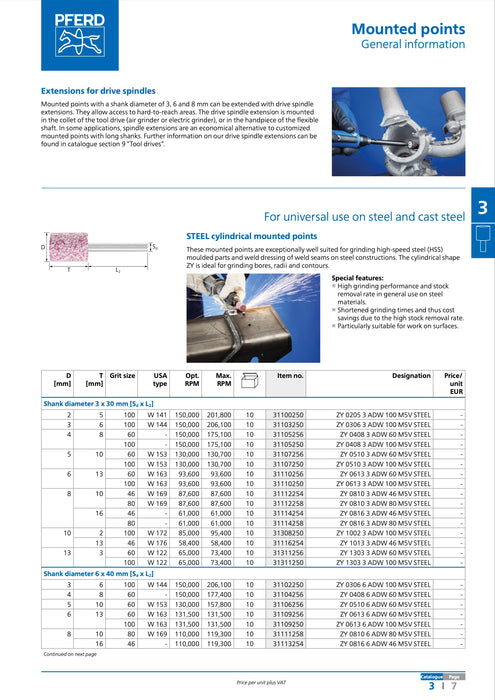

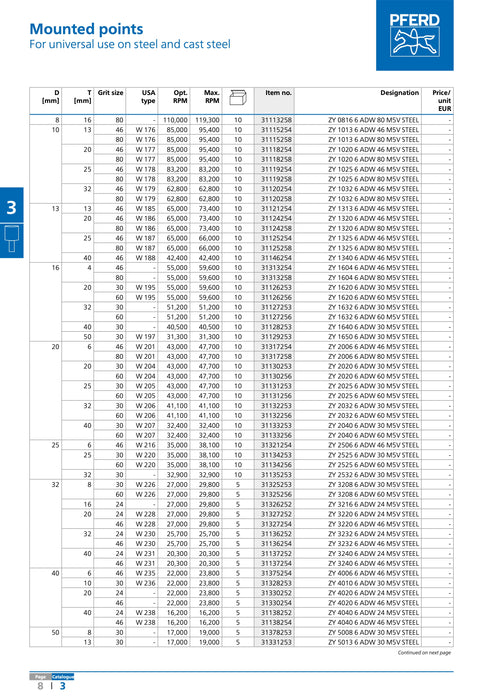

Size charts and product codes: Included with full technical details
Description
ZY type shank grinding wheels are suitable for grinding cast iron and steel, especially for high speed parts, weldments and molds. They provide high material removal and reduce grinding time. Their shape is ideal for curves and edges.
