Micrometer for gears > 300 mm
20523
| Κωδικός | Module | Range (mm) | Reading | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 2052301 | module 2-10, pitch 1.0mm | 300-350 | 0.01 mm | €1.540,00 | 1 μήνας | ||
| 2052302 | module 2-10, pitch 1.0mm | 350-400 | 0.01 mm | €1.606,00 | 1 μήνας | ||
| 2052303 | module 2-10, pitch 1.0mm | 400-450 | 0.01 mm | €1.671,00 | 1 μήνας | ||
| 2052304 | module 2-10, pitch 1.0mm | 450-500 | 0.01 mm | €1.750,00 | 1 μήνας | ||
| 2052305 | module 2-10, pitch 1.0mm | 500-550 | 0.01 mm | €1.842,00 | 1 μήνας | ||
| 2052306 | module 2-10, pitch 1.0mm | 550-600 | 0.01 mm | €1.828,00 | 1 μήνας | ||
| 2052307 | module 2-10, pitch 1.0mm | 600-650 | 0.01 mm | €1.908,00 | 1 μήνας | ||
| 2052308 | module 2-10, pitch 1.0mm | 650-700 | 0.01 mm | €1.992,00 | 1 μήνας | ||
| 2052309 | module 2-10, pitch 1.0mm | 700-750 | 0.01 mm | €2.076,00 | 1 μήνας | ||
| 2052310 | module 2-10, pitch 1.0mm | 750-800 | 0.01 mm | €2.155,00 | 1 μήνας | ||
| 2052311 | module 2-10, pitch 1.0mm | 800-850 | 0.01 mm | €2.237,00 | 1 μήνας | ||
| 2052312 | module 2-10, pitch 1.0mm | 850-900 | 0.01 mm | €2.322,00 | 1 μήνας | ||
| 2052313 | module 2-10, pitch 1.0mm | 900-950 | 0.01 mm | €2.426,00 | 1 μήνας | ||
| 2052314 | module 2-10, pitch 1.0mm | 950-1000 | 0.01 mm | €2.528,00 | 1 μήνας | ||
| 2052401 | module 2-30, pitch 1.0mm | 300-350 | 0.01 mm | €1.870,00 | 1 μήνας | ||
| 2052402 | module 2-30, pitch 1.0mm | 350-400 | 0.01 mm | €1.833,00 | 1 μήνας | ||
| 2052403 | module 2-30, pitch 1.0mm | 400-450 | 0.01 mm | €1.894,00 | 1 μήνας | ||
| 2052404 | module 2-30, pitch 1.0mm | 450-500 | 0.01 mm | €1.969,00 | 1 μήνας | ||
| 2052405 | module 2-30, pitch 1.0mm | 500-550 | 0.01 mm | €2.054,00 | 1 μήνας | ||
| 2052406 | module 2-30, pitch 1.0mm | 550-600 | 0.01 mm | €2.136,00 | 1 μήνας | ||
| 2052407 | module 2-30, pitch 1.0mm | 600-650 | 0.01 mm | €2.219,00 | 1 μήνας | ||
| 2052408 | module 2-30, pitch 1.0mm | 650-700 | 0.01 mm | €2.303,00 | 1 μήνας | ||
| 2052409 | module 2-30, pitch 1.0mm | 700-750 | 0.01 mm | €2.385,00 | 1 μήνας | ||
| 2052410 | module 2-30, pitch 1.0mm | 750-800 | 0.01 mm | €2.467,00 | 1 μήνας | ||
| 2052411 | module 2-30, pitch 1.0mm | 800-850 | 0.01 mm | €2.547,00 | 1 μήνας | ||
| 2052412 | module 2-30, pitch 1.0mm | 850-900 | 0.01 mm | €2.633,00 | 1 μήνας | ||
| 2052413 | module 2-30, pitch 1.0mm | 900-950 | 0.01 mm | €2.737,00 | 1 μήνας | ||
| 2052414 | module 2-30, pitch 1.0mm | 950-1000 | 0.01 mm | €2.835,00 | 1 μήνας | ||

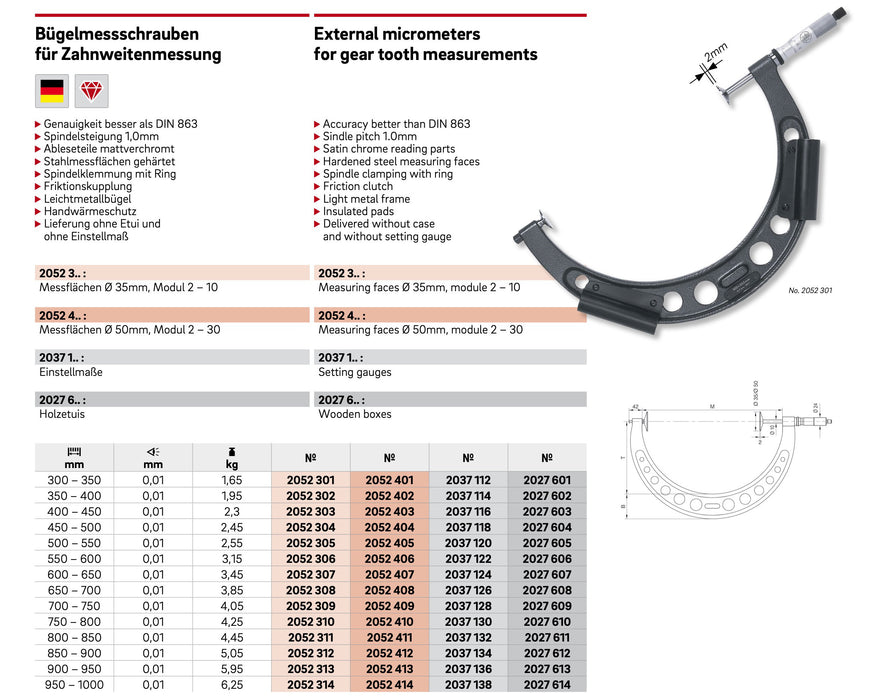

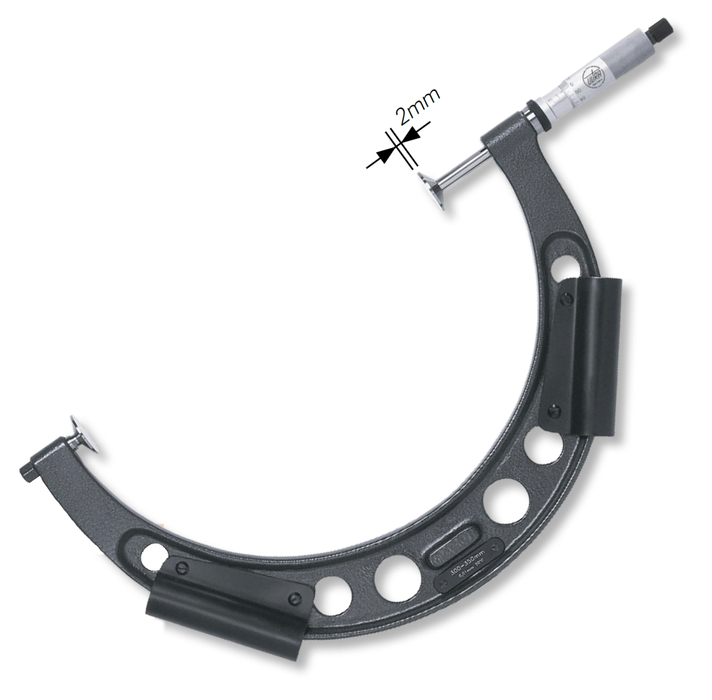

Large capacity external micrometer, designed specifically for gear tooth measurements (W dimension measurement). Constructed with a light alloy frame and hardened steel measuring feet, the instrument covers a measuring range from 300mm to 1000mm, supporting different modules depending on the diameter of the measuring surfaces.
Technical Specifications
-
Application: External measurement of gear teeth.
-
Measurement Range: 300 mm – 1000 mm (depending on model).
-
Reading: 0.01 mm.
-
Accuracy: Better than DIN 863.
-
Spindle Pitch: 1.0 mm.
-
Measuring Feet: Hardened steel.
-
Ø 35mm for Modules 2 – 10.
-
Ø 50mm for Module 2 – 30.
-
-
Construction: Lightweight metal frame with insulated handles for heat protection.
-
Reading Parts: Satin chrome.
-
Features: Spindle lock with ring, friction ratchet.
-
Delivery: Delivered without case and without adjustment template.
