Technical Specifications

• Measurement range: ±1.0mm

• Resolution: 0.01mm

• Repeatability at zero (single direction): ±0.01mm

• Range on X, Y, Z axes: 6mm

• Protection rating: IP67 (dust and water resistant)

• Shockproof

• Predefined probe (standard probe): Ø4mm, length 31mm

• Optional probes:

  • Extended probe: Ø6mm, length 56.6mm

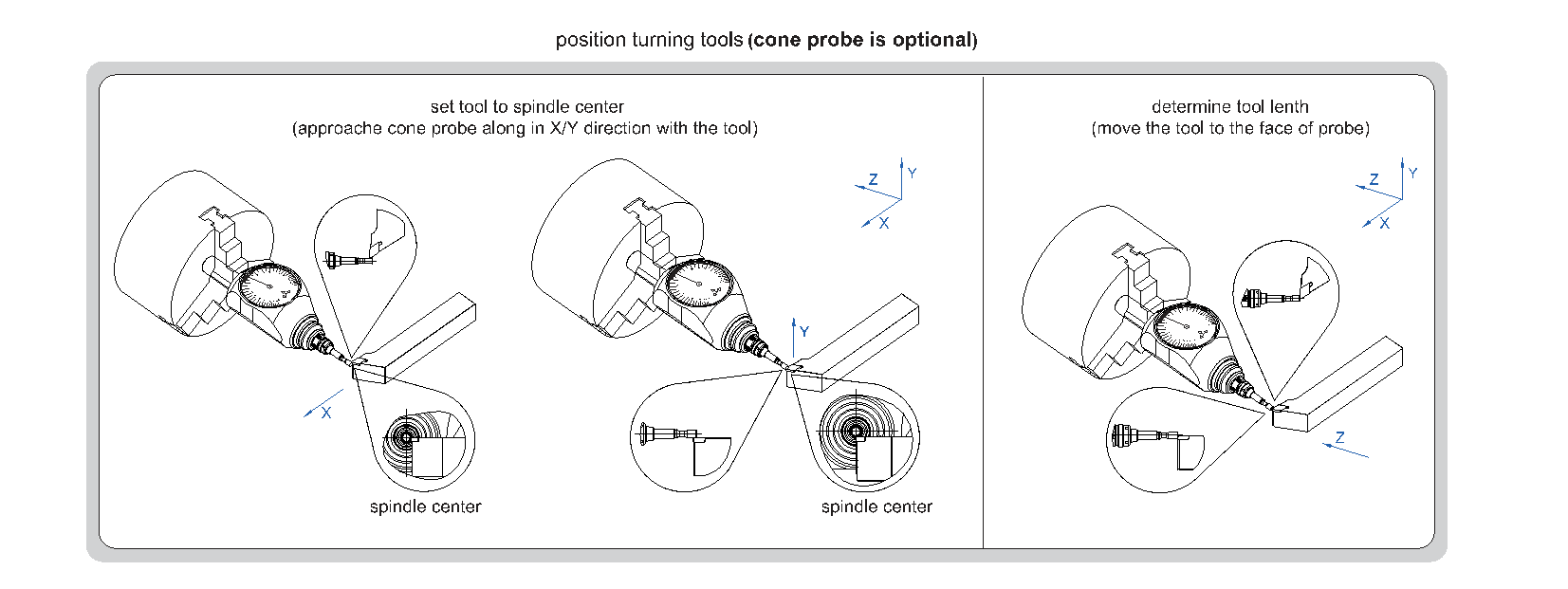

  • Conical probe: Ø4.2mm, length 31mm (for tool setting on lathes)

Description

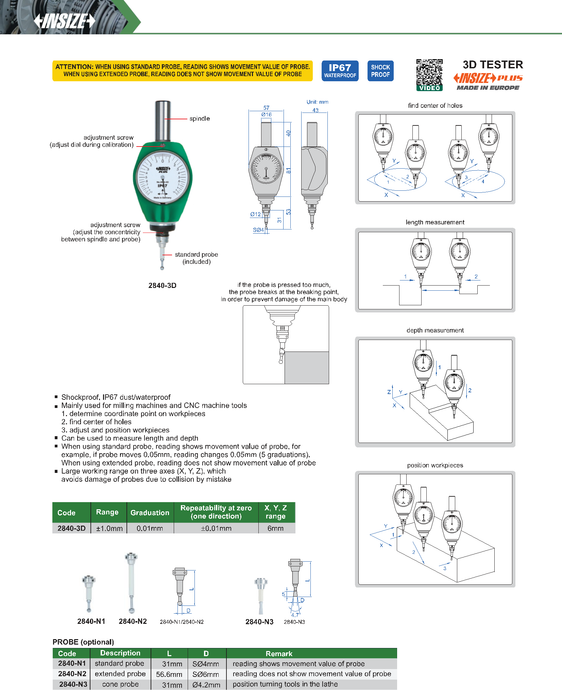

The 3D Tester 2840-3D measuring instrument is used on milling machines and CNC machines for coordinate detection, hole center finding, length and depth measurement, and workpiece position adjustment. It provides tip movement indications when using the standard probe, while no movement is displayed with the extended probe. The IP67 protection ensures operation in harsh industrial conditions, and its design prevents wear in case of excessive pressure on the tip.
