Specifications

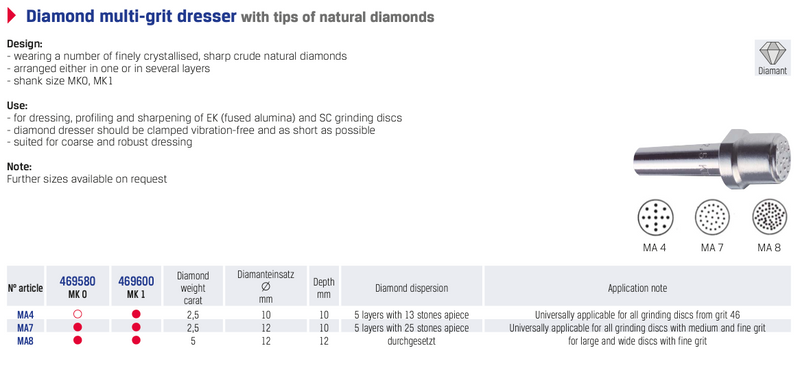

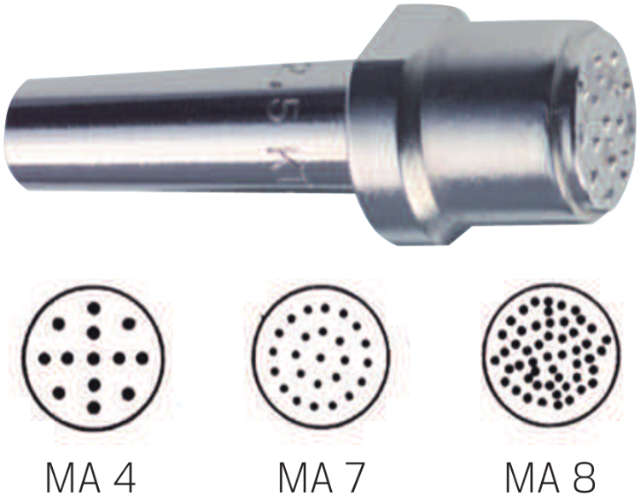

- Type: Diamond multi-grit grinding wheel dresser with tips of natural diamonds
- Design: Multiple finely crystallised, sharp crude natural diamonds arranged in one or several layers
- Shank: Morse taper MK0 or MK1 (depending on version)
- Use: For dressing, profiling and sharpening EK (fused alumina) and SC grinding discs
- Application guidance: Clamp vibration-free and keep overhang as short as possible
- Suitability: For coarse and robust dressing
- Note: Further sizes available on request
Description
Diamond multi-grit dresser with natural diamond tips for dressing, profiling, and sharpening EK (fused alumina) and SC grinding discs. It is used to restore the wheel’s cutting performance and geometry; for stable operation it should be clamped vibration-free with the shortest possible overhang.
Quote
| SKU | Diameter | Morse taper | Carats | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| 469580 MA8 | Ø 12 mm | MT0 | 5 | On Order |
+VAT
€185,00
|
|
| 469600 MA7 | Ø 12 mm | MT1 | 2.5 | On Order |
+VAT
€144,00
|
|
| 469580 MA7 | Ø 12 mm | MT0 | 2.5 | On Order |
+VAT
€144,00
|
|
| 469600 MA4 | Ø 10 mm | MT1 | 2.5 | On Order |
+VAT
€144,00
|
|
| 469600 MA8 | Ø 12 mm | MT1 | 5 | On Order |
+VAT
€185,00
|
