Specifications
- Type: ER collet chuck (BT taper holder for ER collets)
- Balancing grade: G2.5 at 25,000 RPM (or U max <1 gmm)
- BT taper standard: JIS B6339
- Dimension units: mm
- Compatibility: used with ER nut and ER collet (depending on selected variant)
Description

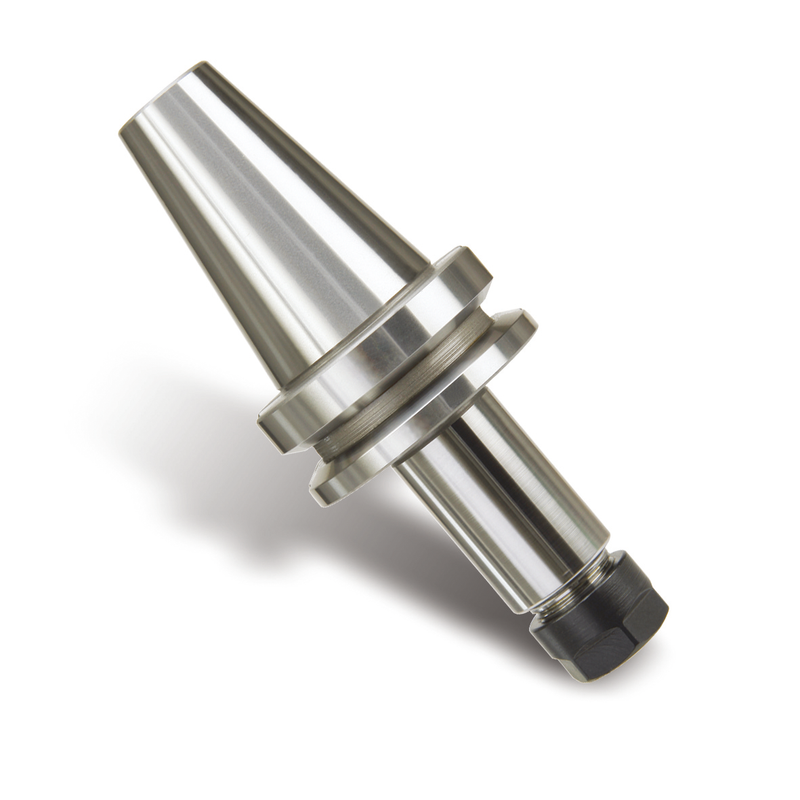

High-precision BT taper ER collet chuck for holding straight-shank cutting tools on CNC milling machines. It clamps the tool using an ER collet and nut, and is balanced to G2.5 at 25,000 RPM for high-speed machining applications.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.

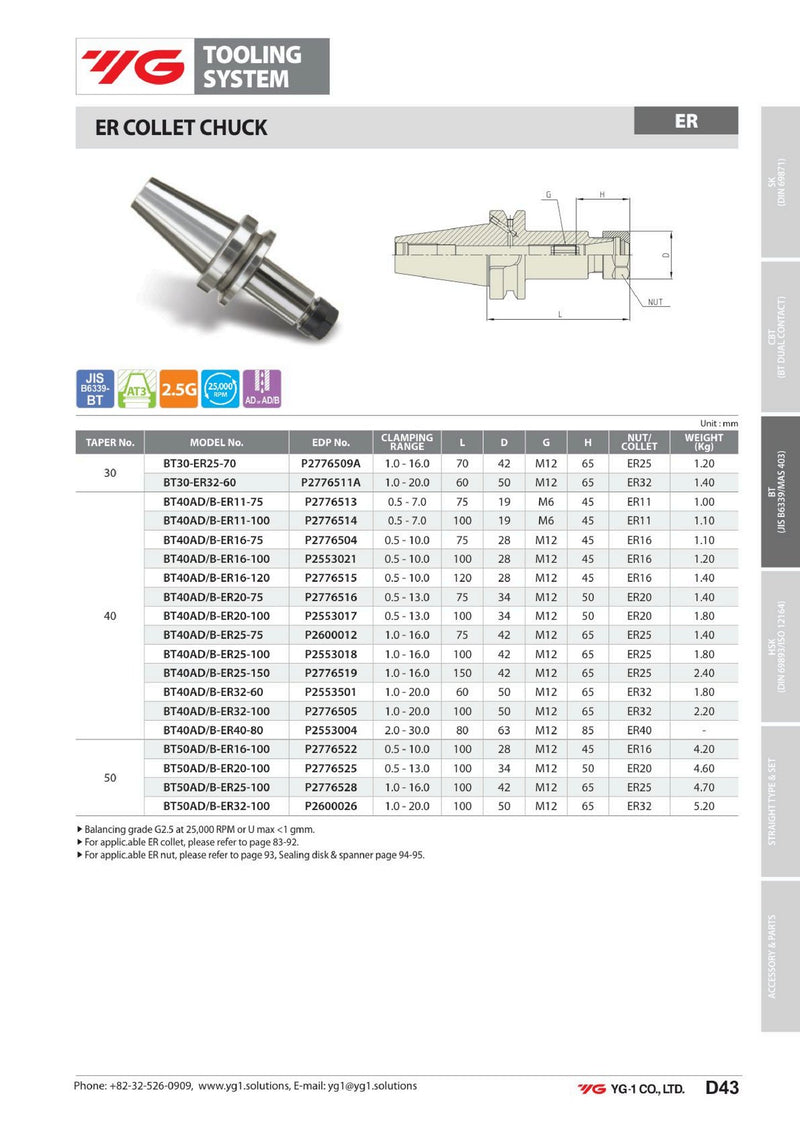

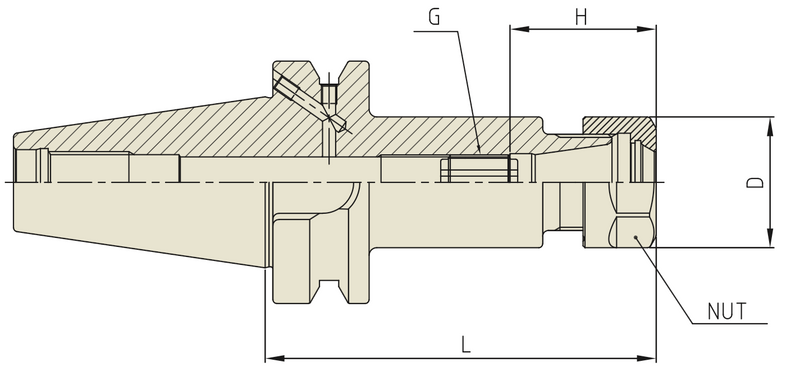

| SKU | Taper | Collet (Range) | L (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| P2776509A | ΒΤ30 | ER25 (1.0-16.0 mm) | 70 | 5-8 business days |
+VAT
€61,00
|
|
| P2776511A | ΒΤ30 | ER32 (1.0-20.0 mm) | 60 | 5-8 business days |
+VAT
€64,00
|
|
| P2776513 | ΒΤ40 | ER11 (0.5-7.0 mm) | 75 | 5-8 business days |
+VAT
€64,00
|
|
| P2776514 | ΒΤ40 | ER11 (0.5-7.0 mm) | 100 | 5-8 business days |
+VAT
€75,00
|
|
| P2776504 | ΒΤ40 | ER16 (0.5-10.0 mm) | 75 | 5-8 business days |
+VAT
€64,00
|
|
| P2553021 | ΒΤ40 | ER16 (0.5-10.0 mm) | 100 | 5-8 business days |
+VAT
€75,00
|
|
| P2776515 | ΒΤ40 | ER16 (0.5-10.0 mm) | 120 | 5-8 business days |
+VAT
€77,00
|
|
| P2776516 | ΒΤ40 | ER20 (0.5-13.0 mm) | 75 | 5-8 business days |
+VAT
€64,00
|
|
| P2553017 | ΒΤ40 | ER20 (0.5-13.0 mm) | 100 | 5-8 business days |
+VAT
€75,00
|
|
| P2600012 | ΒΤ40 | ER25 (1.0-16.0 mm) | 75 | 5-8 business days |
+VAT
€64,00
|
|
| P2553018 | ΒΤ40 | ER25 (1.0-16.0 mm) | 100 | 5-8 business days |
+VAT
€75,00
|
|
| P2776519 | ΒΤ40 | ER25 (1.0-16.0 mm) | 150 | 5-8 business days |
+VAT
€94,00
|
|
| P2553501 | ΒΤ40 | ER32 (1.0-20.0 mm) | 60 | 5-8 business days |
+VAT
€67,00
|
|
| P2776505 | ΒΤ40 | ER32 (1.0-20.0 mm) | 100 | 5-8 business days |
+VAT
€80,00
|
|
| P2553004 | ΒΤ40 | ER40 (2.0-30.0 mm) | 80 | 5-8 business days |
+VAT
€72,00
|
|
| P2776522 | ΒΤ50 | ER16 (0.5-10.0 mm) | 100 | 5-8 business days |
+VAT
€124,00
|
|
| P2776525 | ΒΤ50 | ER20 (0.5-13.0 mm) | 100 | 5-8 business days |
+VAT
€124,00
|
|
| P2776528 | ΒΤ50 | ER25 (1.0-16.0 mm) | 100 | 5-8 business days |
+VAT
€124,00
|
|
| P2600026 | ΒΤ50 | ER32 (1.0-20.0 mm) | 100 | 5-8 business days |
+VAT
€127,00
|
