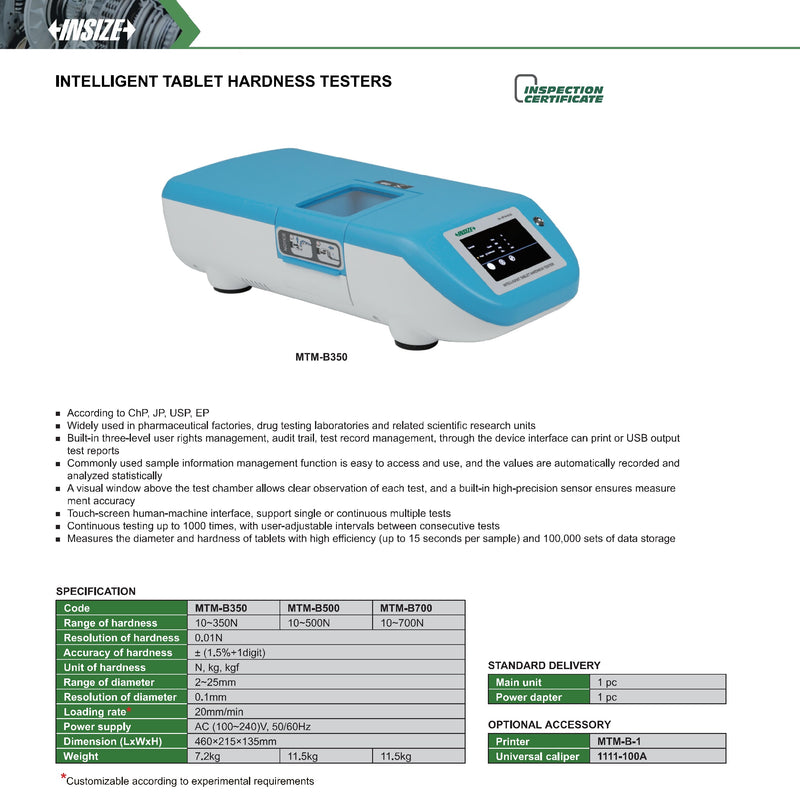

Specifications
- Compliance/Standards: ChP, JP, USP, EP
- Hardness range: 10~350 N / 10~500 N / 10~700 N (model-dependent)
- Hardness resolution: 0.01 N
- Hardness accuracy: ±(1.5% + 1 digit)
- Hardness units: N, kg, kgf
- Tablet diameter range: 2~25 mm
- Diameter resolution: 0.1 mm
- Loading rate: 20 mm/min (customizable per test requirements)
- Power supply: AC (100~240) V, 50/60 Hz
- Dimensions (L×W×H): 460×215×135 mm
- Weight: 7.2 kg or 11.5 kg (model-dependent)
- User interface: touchscreen
- Test modes: single or continuous multiple tests
- Continuous testing: up to 1000 times, with user-adjustable intervals
- Measurement time: up to 15 s per sample
- Data storage: up to 100,000 data sets
- Data management: three-level user rights, audit trail, test record management
- Output/Reporting: on-device printing or USB output for test reports
- Test observation: visual window above the test chamber
- Standard delivery: main unit (1 pc), power adapter (1 pc)
- Optional accessories: Printer MTM-B-1, Universal caliper 1111-100A
Description

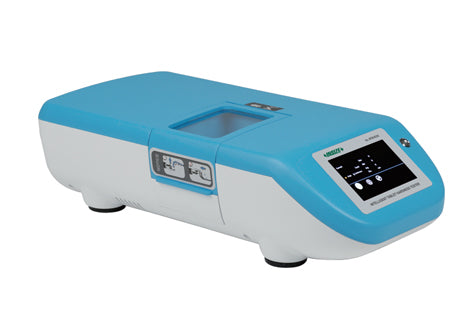

Tablet hardness tester for laboratory and production quality control in pharmaceutical manufacturing. It measures tablet hardness (breaking force) and diameter, supports single or continuous testing, automatically records results, and provides report export/printing, in accordance with pharmaceutical standards (ChP, JP, USP, EP).
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Range | Βάρος | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| MTM-B500 | 10~500N | 11.5 kg | On Order |
+VAT
€8.080,00
|
|
| MTM-B700 | 10~700N | 11.5 kg | On Order |
+VAT
€8.710,00
|
|
| MTM-B350 | 10~350N | 7.2 kg | On Order |
+VAT
€7.450,00
|
