Product Characteristics
Κλάση ζυγοστάθμισης
G6.3
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"@ 15.000 RPM"}]}]}
Specifications
- Taper standard: DIN 2080 (SK)
- Collet system: ER per ISO 15488 (DIN 6499)
- Application: holding straight-shank tools in ER collets
- Accuracy/runout: ≤ 3 μm
- Balancing: G6,3 at 15,000 min⁻1
- Delivery: with balanced clamping nut
Description

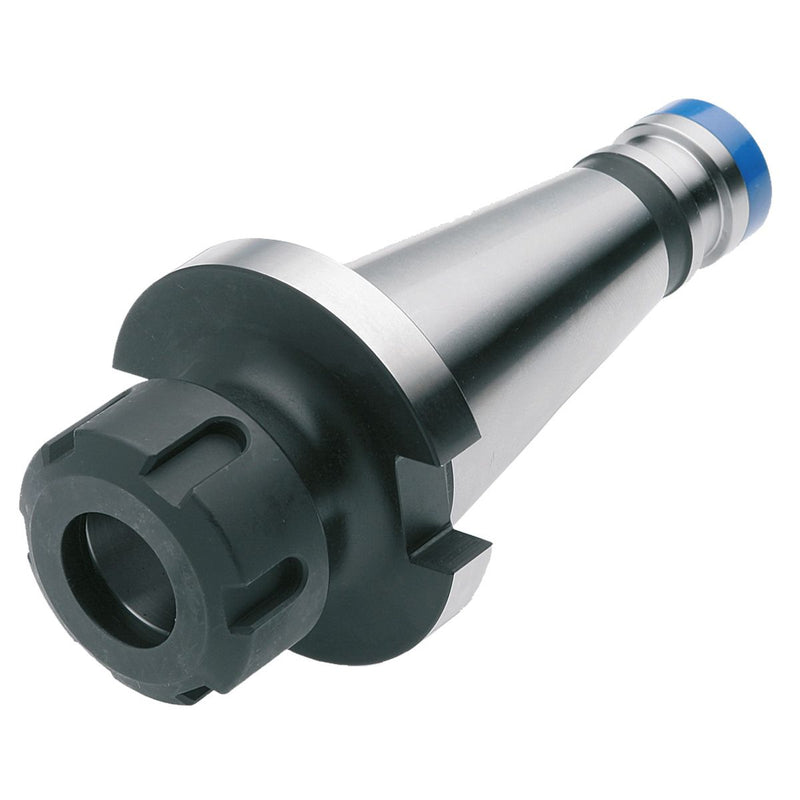

NT (ISO) taper toolholder to DIN 2080 for machine spindle mounting and use with ER collets (ISO 15488 / DIN 6499). It is used to clamp and accurately hold straight/cylindrical shank tools for machining operations, with specified runout and balancing for high-speed operation.
Quote
| SKU | Taper | Range | Collet | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-301.02.16 | NT30 / M16 | 2-16 mm | ER25 | 1 month |
+VAT
€62,00
|
|
| KE-301.02.20 | NT30 / M16 | 2-20 mm | ER32 | 1 month |
+VAT
€64,00
|
|
| KE-401.02.16 | NT40 / M16 | 2-16 mm | ER25 | 2 available |
+VAT
€62,00
|
|
| KE-401.02.20 | NT40 / M16 | 2-20 mm | ER32 | 1 month |
+VAT
€64,00
|
|
| KE-401.02.26 | NT40 / M16 | 3-26 mm | ER40 | 2 available |
+VAT
€67,00
|
|
| KE-501.02.20 | NT50 / M16 | 2-20 mm | ER32 | 1 month |
+VAT
€101,00
|
|
| KE-501.02.26 | NT50 / M16 | 3-26 mm | ER40 | 1 month |
+VAT
€101,00
|
