Specifications
- Type: Pull stud similar to ISO 7388-3
- Shank form: AD
- Length: lengthened by 3 mm
- Coolant supply: centric inner cooling supply
- Through bore: with through hole (through drilling)
- Sealing: includes O-Ring
- Reference standard: formerly DIN 69872 A
- Application: for tools with taper shanks ISO 7388-1 (formerly DIN 69871)
- Machine compatibility: suitable for OKUMA and MAKINO (depending on DRVS version)
Description

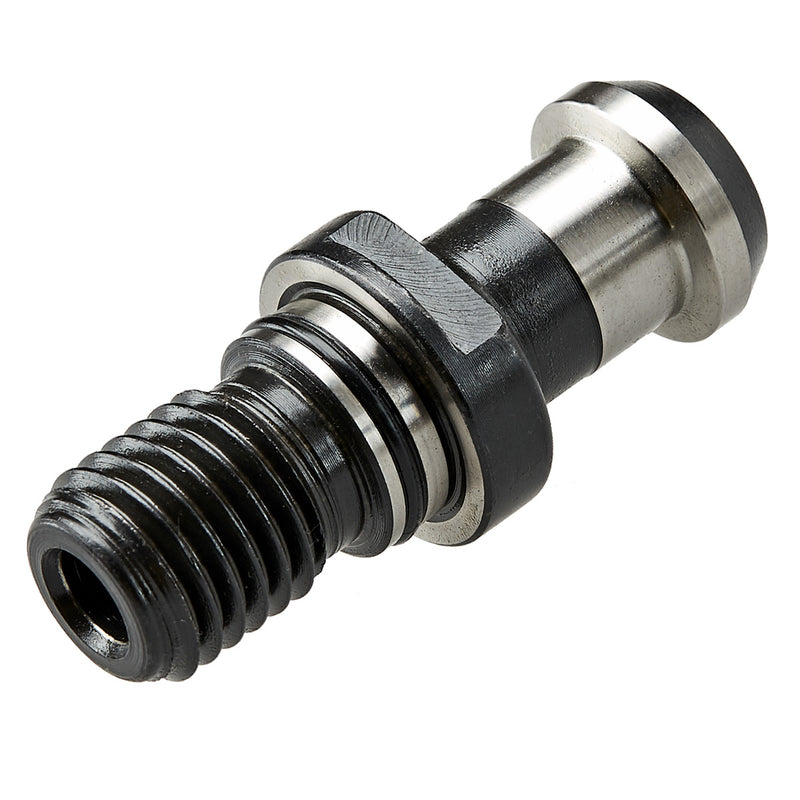

AD-form pull stud similar to ISO 7388-3, used to clamp toolholders in machine tool spindles. It features a centric inner coolant supply via a through bore and an O-Ring for sealing. The design is lengthened by 3 mm and is intended for ISO 7388-1 taper shank tools (formerly DIN 69871), with versions compatible with OKUMA or MAKINO.
Quote
| SKU | CRKS | OAL (mm) | DRVS | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-402.20.16.21 | M16 | 54 | 19 | 1 month |
+VAT
€10,00
|
|
| KE-402.20.16.24 | M16 | 54 | 19 Okuma | 1 month |
+VAT
€14,00
|
