Specifications
- Type: Pull Stud Form AD without O-Ring
- Standard: ISO 7388-3
- Form: AD
- Angle (BHTA): 15°

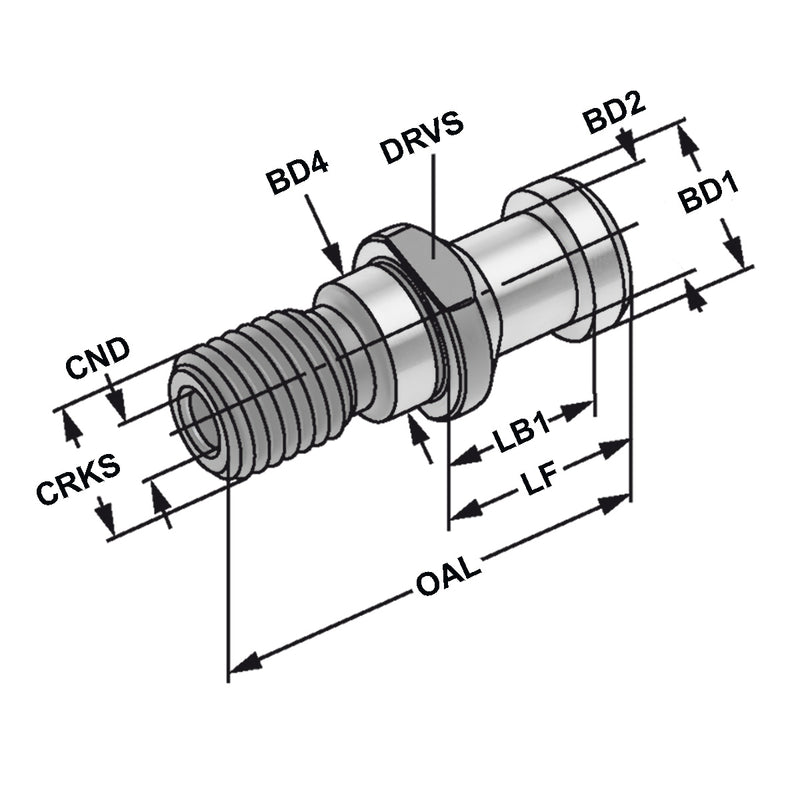

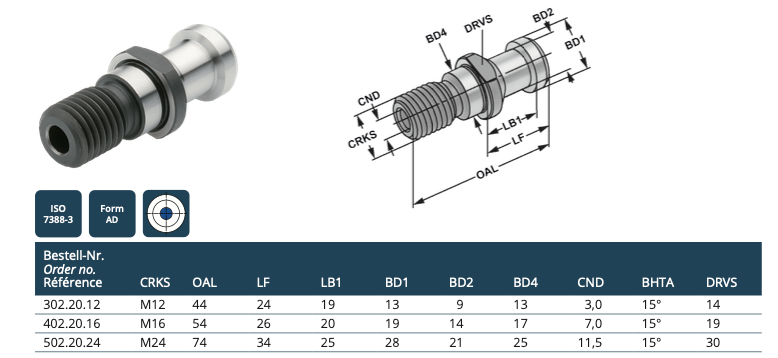

- Dimensions: per technical drawing (OAL, LF, LB1, BD1, BD2, BD4, CND, DRVS)
Description
The Pull Stud Form AD without O-Ring is a retention knob used to secure toolholders in a CNC spindle drawbar clamping system. It is intended for ISO 7388-3 applications and provides the mechanical interface for the spindle clamping mechanism to pull and hold the tool taper.
Quote
| SKU | CRKS | OAL | CND | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-302.20.12 | M12 | 44 | 3,0 | 1 month |
+VAT
€7,00
|
|
| KE-402.20.16 | M16 | 54 | 7,0 | 1 month |
+VAT
€7,00
|
|
| KE-502.20.24 | M24 | 74 | 11,5 | 1 month |
+VAT
€8,00
|
