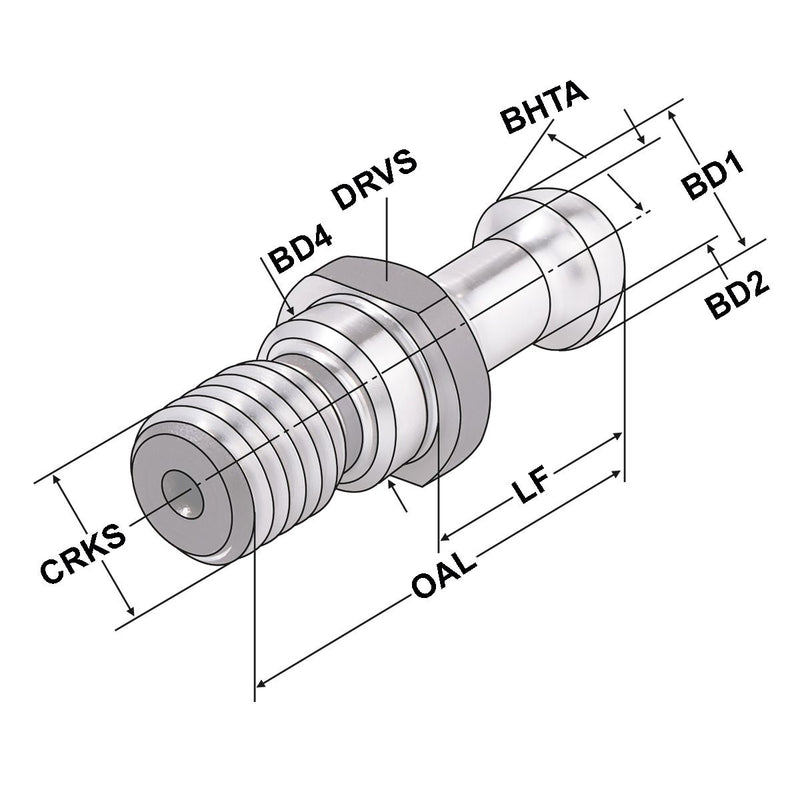

Specifications
- Type: Pull stud for Biesse and Leuco, without cooling lubricant supply
- Design: sealed / without O-ring
- Thread (CRKS): M12
- Overall length (OAL): 44 mm
- LF: 24 mm
- BD1: 12 mm
- BD2: 8 mm
- BD4: 13 mm
- BHTA: R3,2
- DRVS: 14
- Standards compatibility: ISO 7388-1 (formerly DIN 69871), ISO 7388-2 (formerly JIS B 6339 MAS-BT)
- Order no.: 302.20.12.25
Description

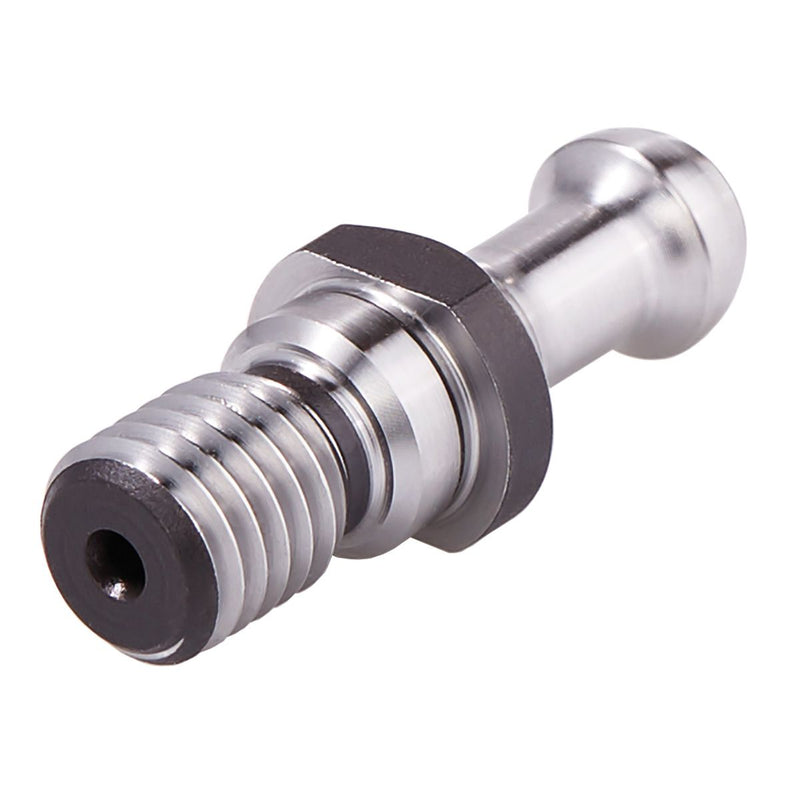

Pull stud used to clamp and retain taper-shank tools in machine tool spindles, suitable for Biesse and Leuco systems. It is intended for tools with taper shanks according to ISO 7388-1 and ISO 7388-2, and is a sealed version without coolant/lubricant supply and without an O-ring.
Quote
| SKU | CRKS | OAL | BHTA | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-302.20.12.25 | M12 | 44 | R3.2 | 1 month |
+VAT
€14,00
|
