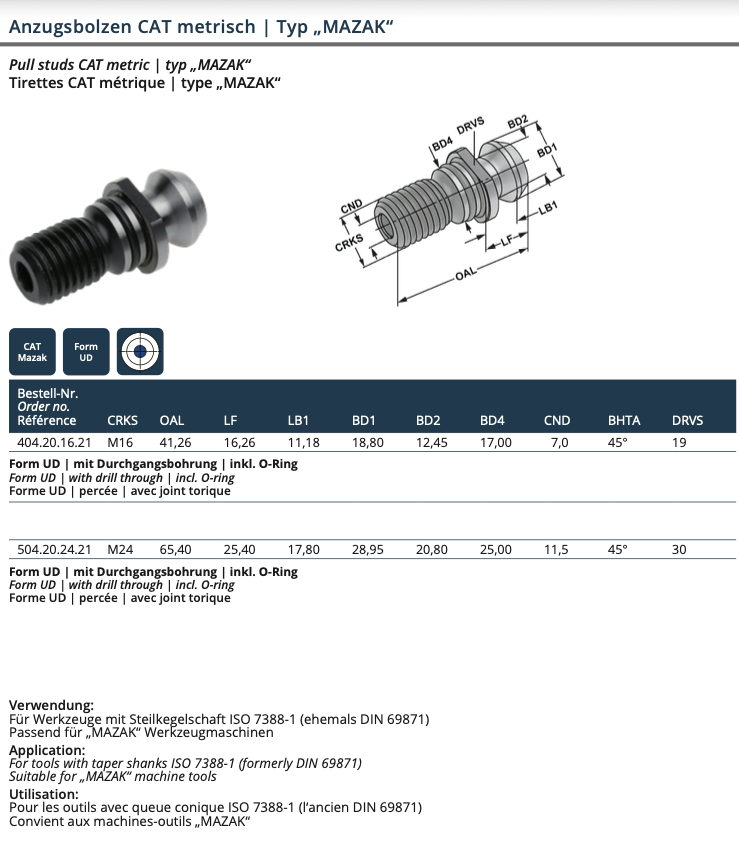

Specifications
- Type: Pull stud CAT metric, type “MAZAK”
- Form: Form UD (with drill through), incl. O-ring
- Tool taper shank standard: ISO 7388-1 (formerly DIN 69871)
- Application: Suitable for “MAZAK” machine tools

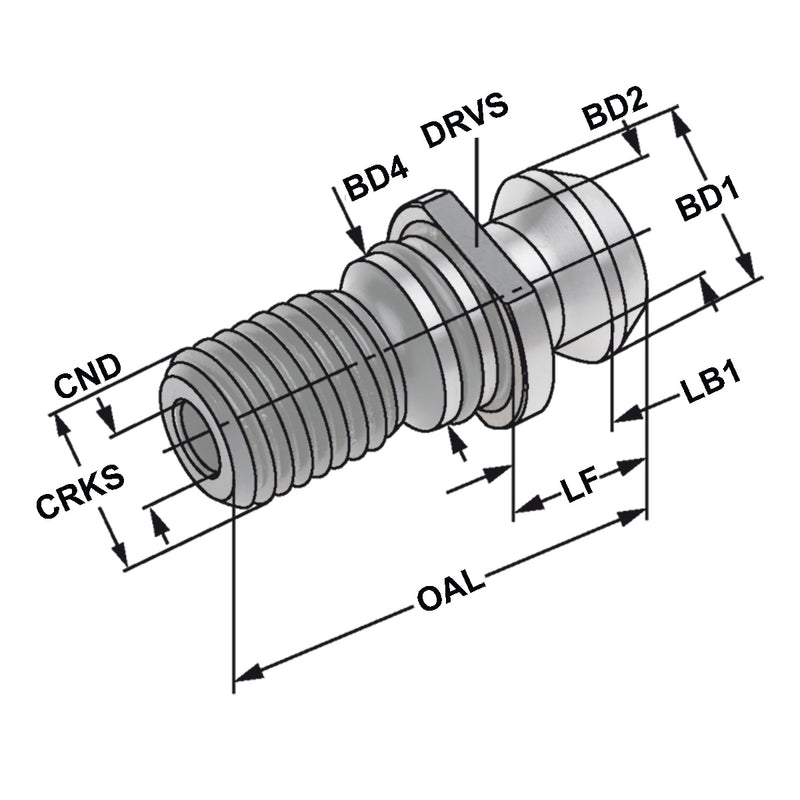

- Dimensions/parameters (per drawing): CRKS, OAL (mm), LF, LB1, BD1, BD2, BD4, CND, BHTA, DRVS
Description

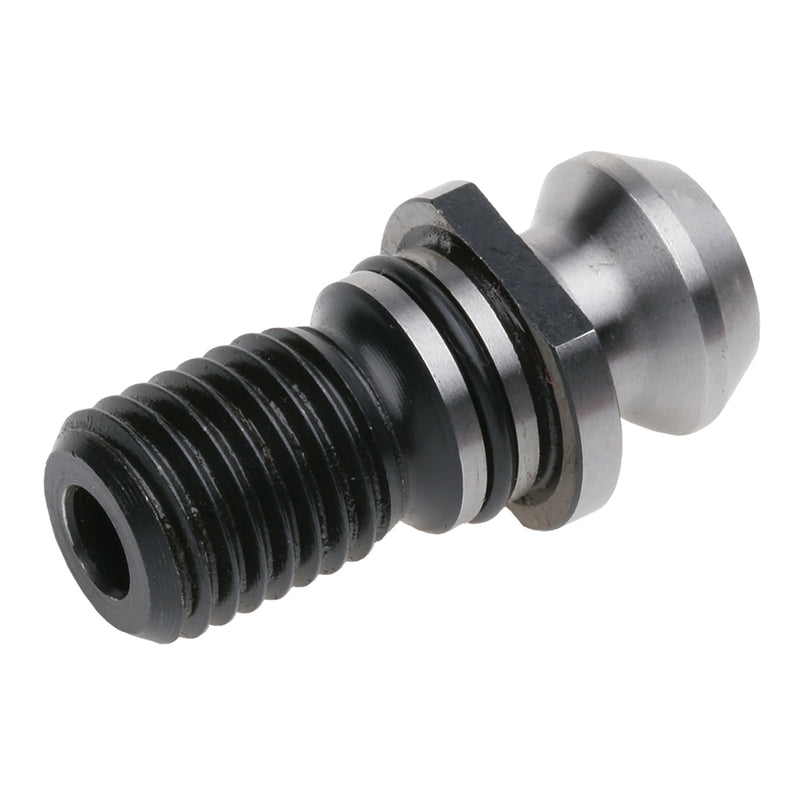

CAT metric pull stud for ISO 7388-1 tool holders, intended for use on “MAZAK” machine tools. It is used to retain and pull the tool holder into the spindle clamping mechanism. The Form UD version features a drill-through design and includes an O-ring.
Quote
| SKU | CRKS | OAL (mm) | BHTA | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-404.20.16.21 | M16 | with O Ring | 45° | 1 month |
+VAT
€7,00
|
|
| KE-504.20.24.21 | M24 | without O Ring | 45° | 1 month |
+VAT
€13,00
|
