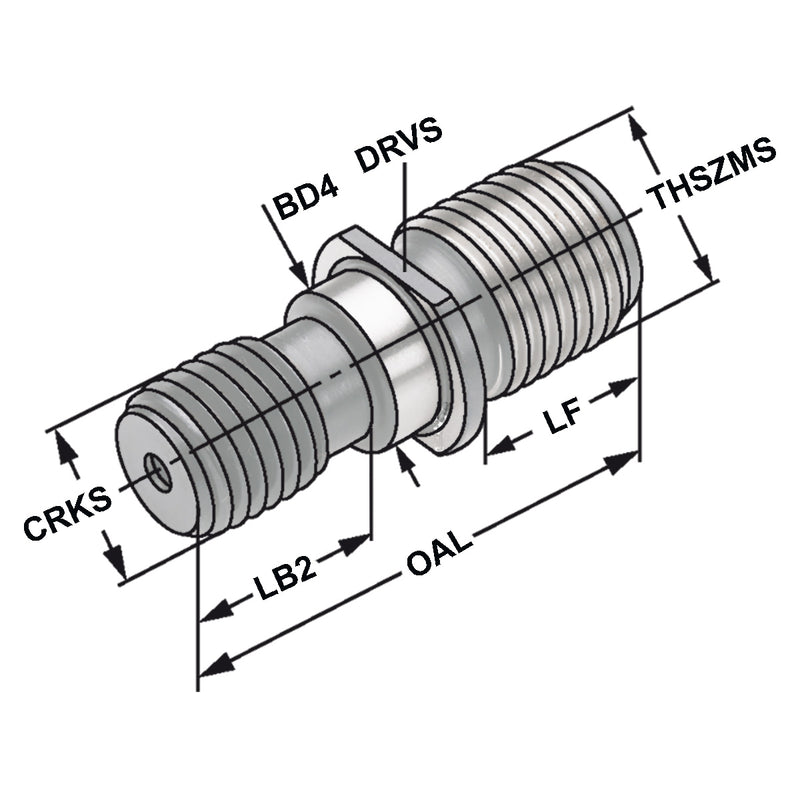

Specifications
- Type: Pull stud for tool holders
- Standard: ISO 7388-1
- Thread (THSZMS): DECKEL asymmetrical S 20 x 2
- Order no.: 401.20.16.5
- CRKS: M16
- OAL (mm): 54
- LF (mm): 23
- LB2 (mm): 22
- BD4 (mm): 17.0
- DRVS (mm): 19
Description

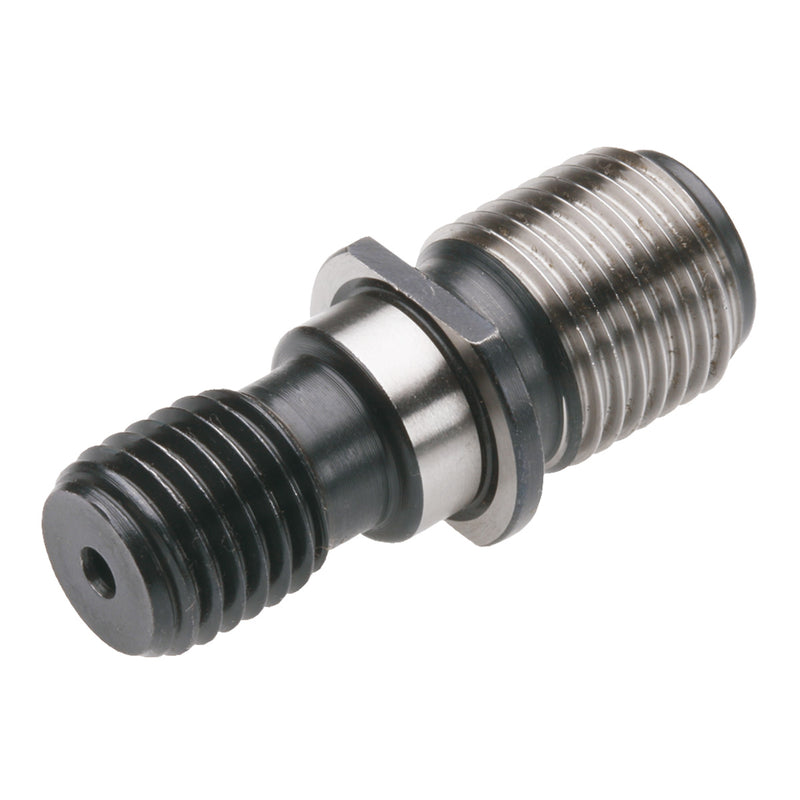

Pull stud used to retain and draw tool holders in machine tool spindles/tool interfaces according to ISO 7388-1. It features a DECKEL asymmetrical S 20 x 2 thread and is used in clamping systems to secure the tool holder to the taper/holder interface.
Quote
| SKU | CRKS | OAL (mm) | LF (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-401.20.16.S | M16 | 54 | 23 | 1 month |
+VAT
€16,00
|
