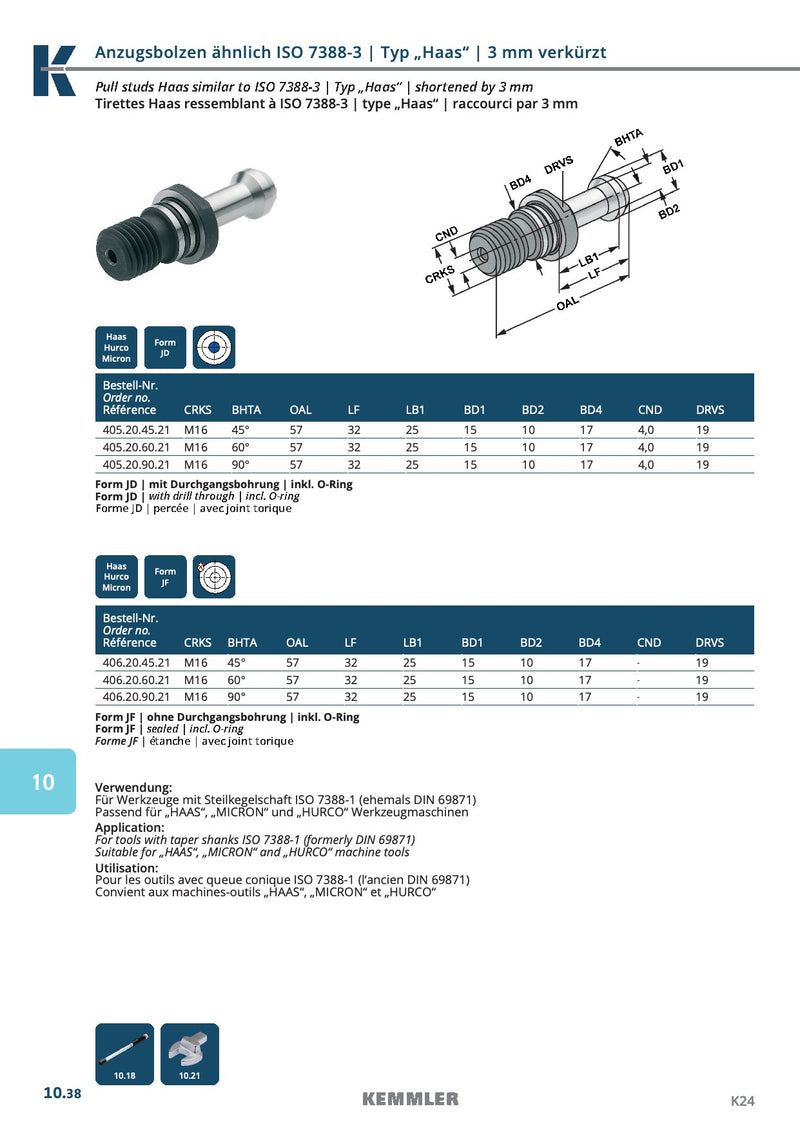

Specifications
- Type: Pull stud type “Haas”, similar to ISO 7388-3
- Length: shortened by 3 mm
- Compatibility: for tools with taper shanks ISO 7388-1 (formerly DIN 69871)
- Machine suitability: HAAS, MICRON, HURCO
- Forms:
- Form JD: with drill through, incl. O-ring
- Form JF: sealed, incl. O-ring

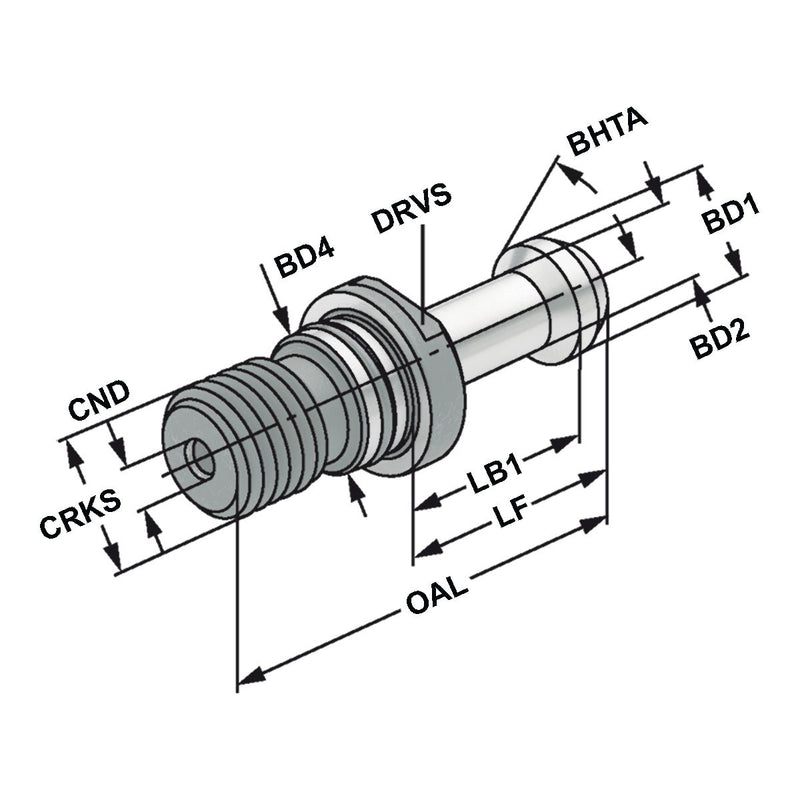

- Dimensions/parameters (per options): CRKS, BHTA, CND
Description

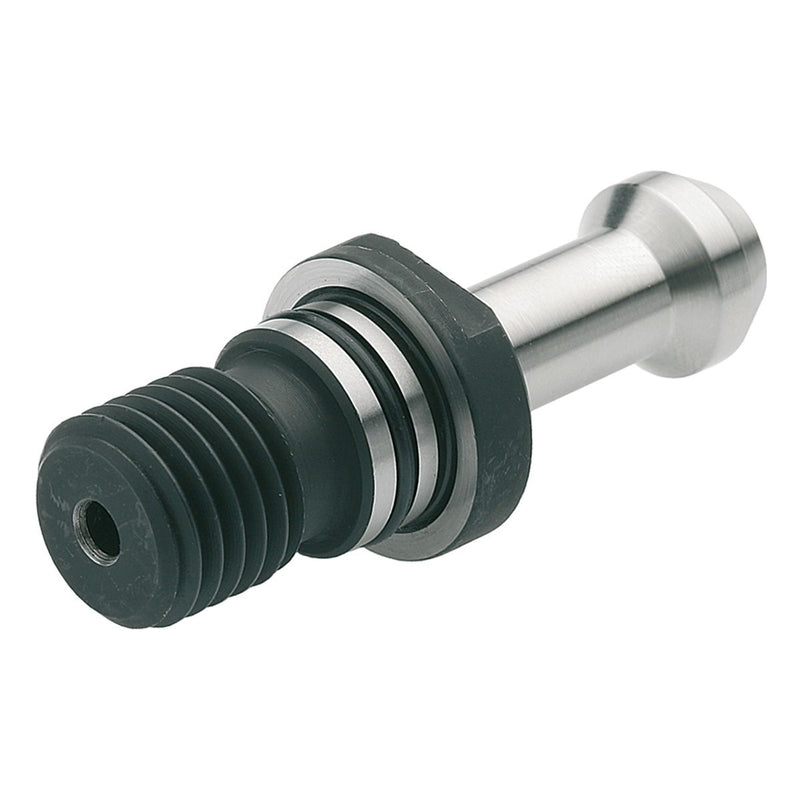

This “Haas” type pull stud (retention knob) is used with ISO 7388-1 (DIN 69871) taper shank toolholders to allow the machine drawbar to grip and clamp the toolholder in the spindle. It is suitable for HAAS, MICRON, and HURCO machine tools and is available in a drill-through version (Form JD) or a sealed version (Form JF), both supplied with an O-ring.
Quote
| SKU | CND | CRKS | BHTA | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-405.20.45.21 | JD | M16 | 45 | 1 month |
+VAT
€9,00
|
|
| KE-405.20.60.21 | JD | M16 | 60 | 1 month |
+VAT
€9,00
|
|
| KE-405.20.90.21 | JD | M16 | 90 | 1 month |
+VAT
€9,00
|
|
| KE-406.20.45.21 | JF | M16 | 45 | 1 month |
+VAT
€9,00
|
|
| KE-406.20.60.21 | JF | M16 | 60 | 1 month |
+VAT
€9,00
|
|
| KE-406.20.90.21 | JF | M16 | 90 | 1 month |
+VAT
€9,00
|
