Specifications

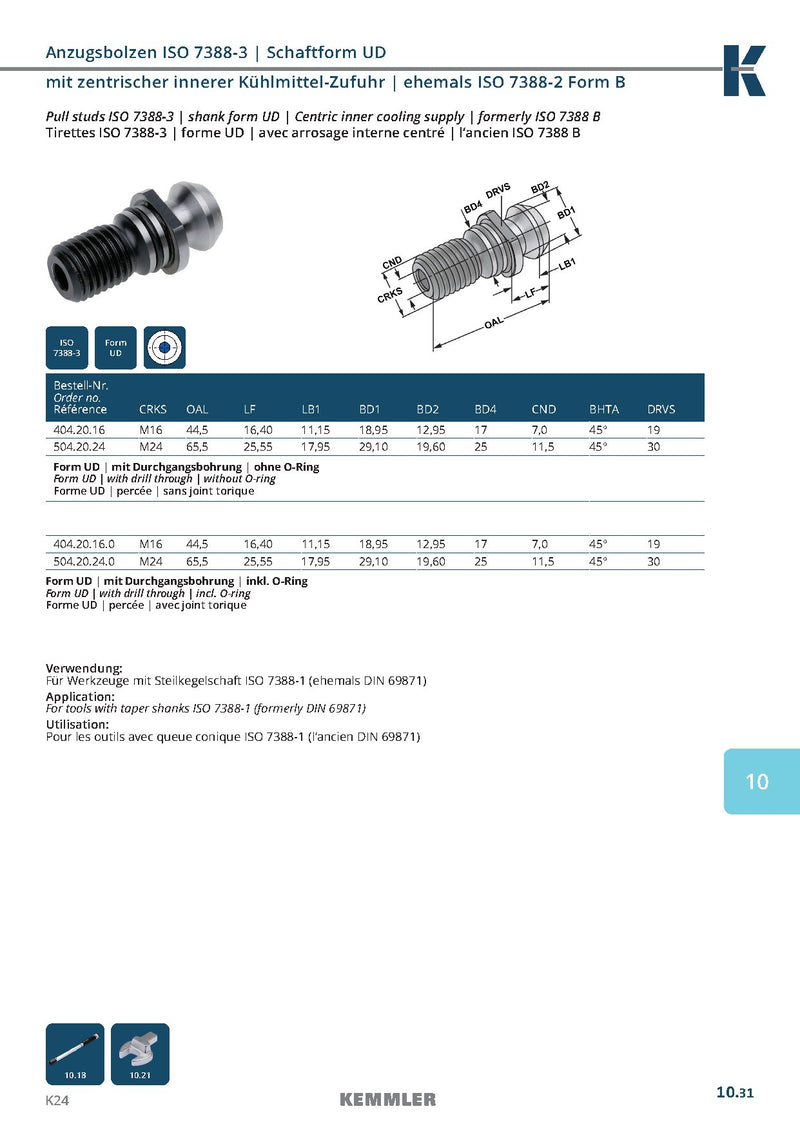

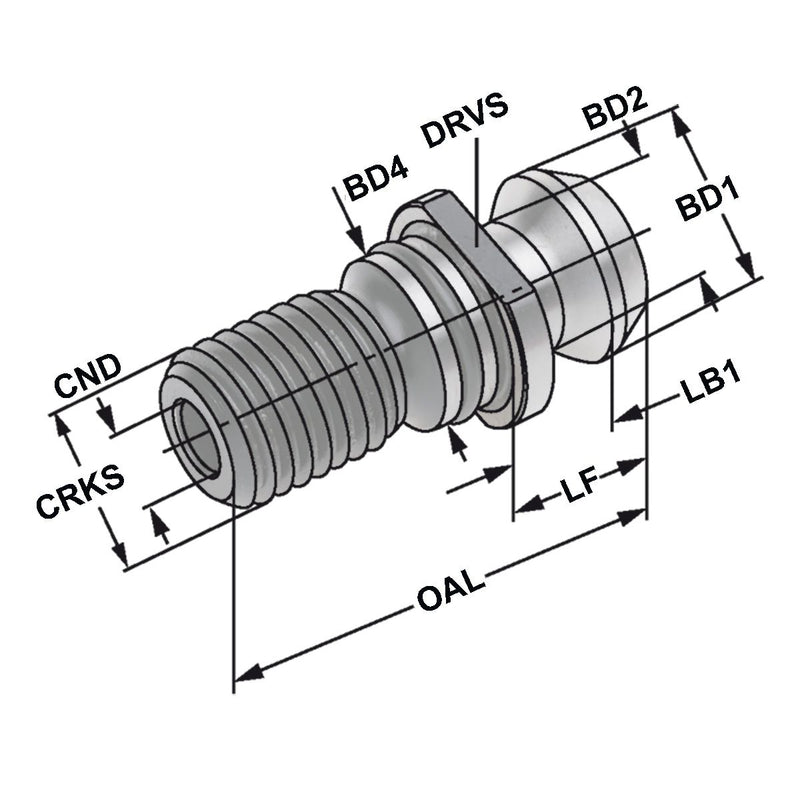

- Type: Pull stud ISO 7388-3, shank form UD
- Coolant supply: Centric inner cooling supply
- Standard: ISO 7388-3 (formerly ISO 7388 B / ISO 7388-2 Form B)
- Application: For tools with taper shanks ISO 7388-1 (formerly DIN 69871)
- Available versions: with drill through, without O-Ring or incl. O-ring (depending on version)
Description

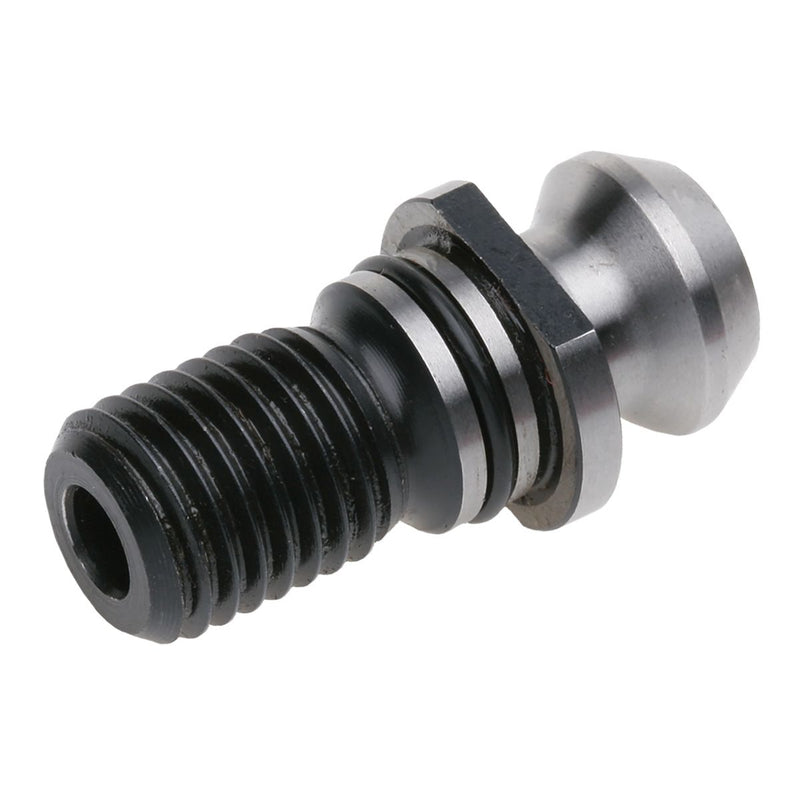

The ISO 7388-3 pull stud (shank form UD) is a retention knob used to clamp toolholders/tools in a CNC spindle drawbar system, with centric inner coolant supply. It is intended for tools with ISO 7388-1 taper shanks (formerly DIN 69871) and is available in drill-through versions with or without an O-ring, depending on the model.
Quote
| SKU | CRKS | Type | OAL (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-404.20.16 | without O-Ring | M16 | 44.5 | 1 month |
+VAT
€7,00
|
|
| KE-504.20.24.0 | with O-Ring | M24 | 65.5 | 1 month |
+VAT
€9,00
|
|
| KE-404.20.16.0 | with O-Ring | M16 | 44.5 | 4 available |
+VAT
€8,00
|
|
| KE-504.20.24 | without O-Ring | M24 | 65.5 | 1 month |
+VAT
€8,00
|
