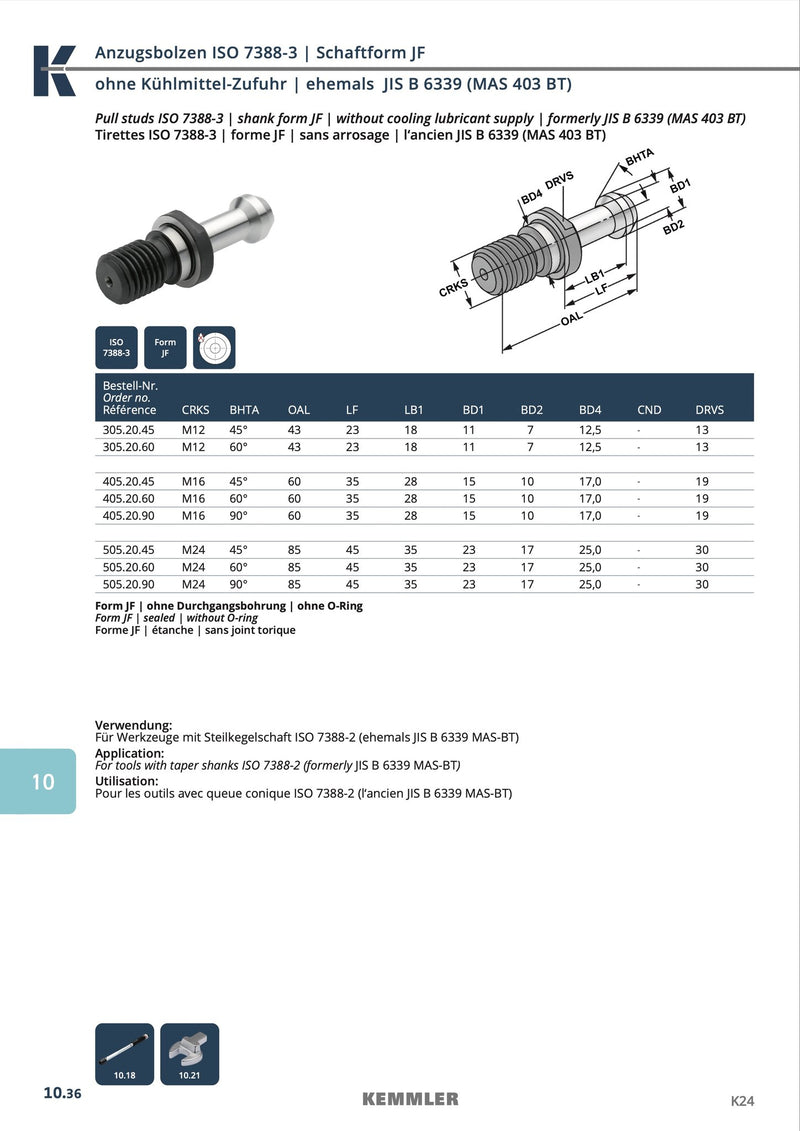

Specifications
- Type: Pull stud, shank form JF for MAS BT
- Standard: ISO 7388-3
- Former standard/reference: JIS B 6339 (MAS 403 BT)
- Coolant supply: without cooling lubricant supply
- JF form design: sealed, without through hole, without O-ring
- Application: for tools with taper shanks ISO 7388-2 (formerly JIS B 6339 MAS-BT)

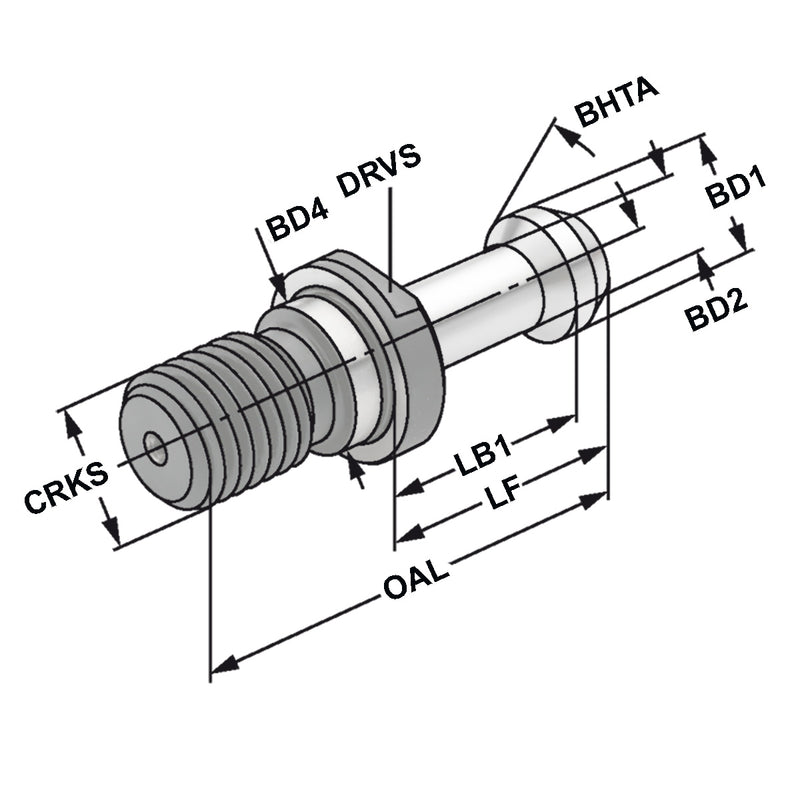

- Dimensions: defined by CRKS, BHTA, OAL (mm) parameters (per manufacturer table/drawing)
Description

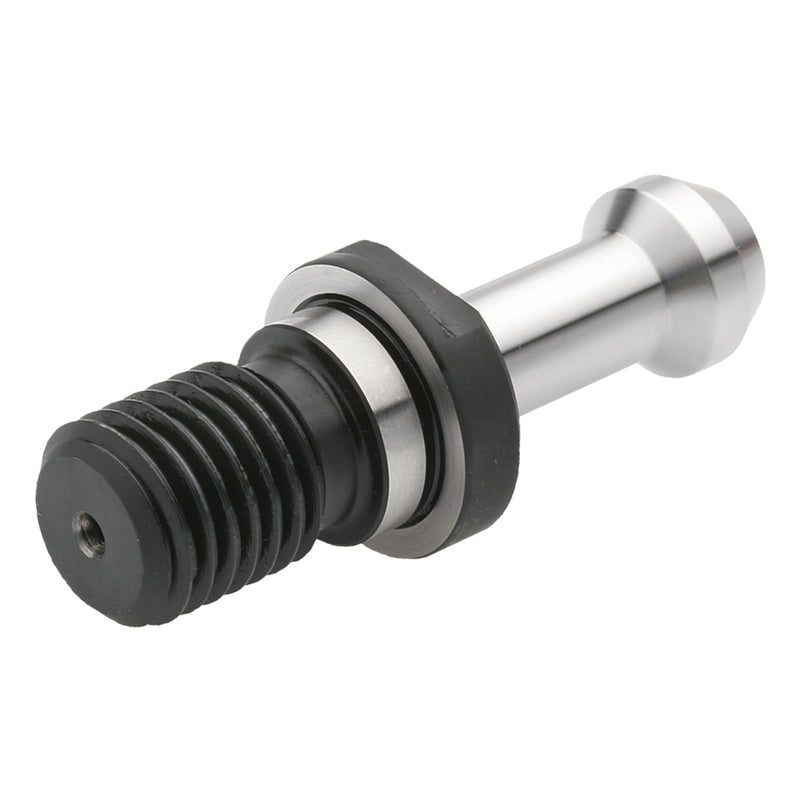

JF form pull stud for MAS BT toolholders, compliant with ISO 7388-3. It is used to clamp/pull the taper shank (ISO 7388-2) by the machine spindle drawbar mechanism in machine tools. This version is sealed, without a through hole and without an O-ring, and it is intended for use without coolant/lubricant supply through the pull stud.
Quote
| SKU | CRKS | BHTA | OAL (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-405.20.60 | M16 | 60° | 60 | 1 month |
+VAT
€7,00
|
|
| KE-405.20.45 | M16 | 45° | 60 | 1 month |
+VAT
€7,00
|
|
| KE-305.20.60 | M12 | 60° | 43 | 1 month |
+VAT
€7,00
|
|
| KE-505.20.90 | M24 | 90° | 85 | 1 month |
+VAT
€8,00
|
|
| KE-305.20.45 | M12 | 45° | 43 | 1 month |
+VAT
€7,00
|
|
| KE-505.20.60 | M24 | 60° | 85 | 1 month |
+VAT
€8,00
|
|
| KE-405.20.90 | M16 | 90° | 60 | 1 month |
+VAT
€7,00
|
|
| KE-505.20.45 | M24 | 45° | 85 | 1 month |
+VAT
€8,00
|
