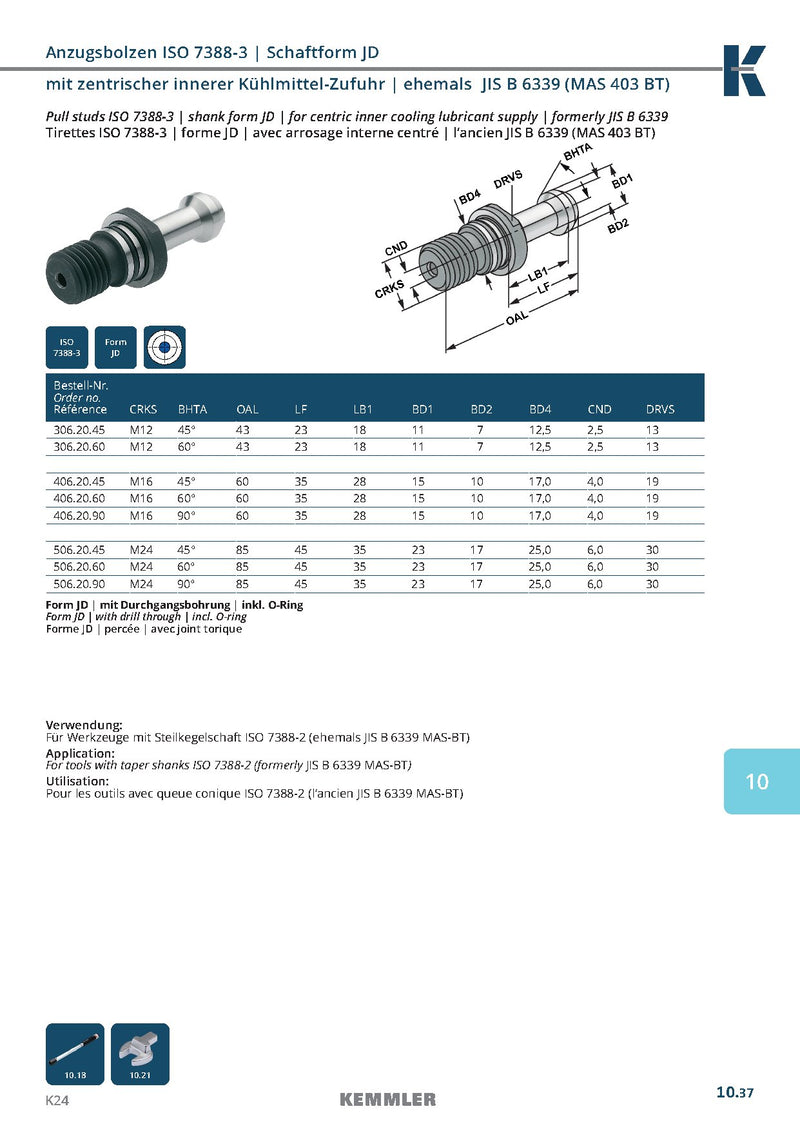

Specifications
- Type: Pull stud ISO 7388-3
- Shank form: JD
- Coolant/lubricant supply: centric inner supply
- Standards/Equivalents: ISO 7388-3, formerly JIS B 6339 (MAS 403 BT)
- Design: with drill-through (through hole)
- Sealing: incl. O-Ring
- Application: for tools with taper shanks ISO 7388-2 (formerly JIS B 6339 MAS-BT)
Description

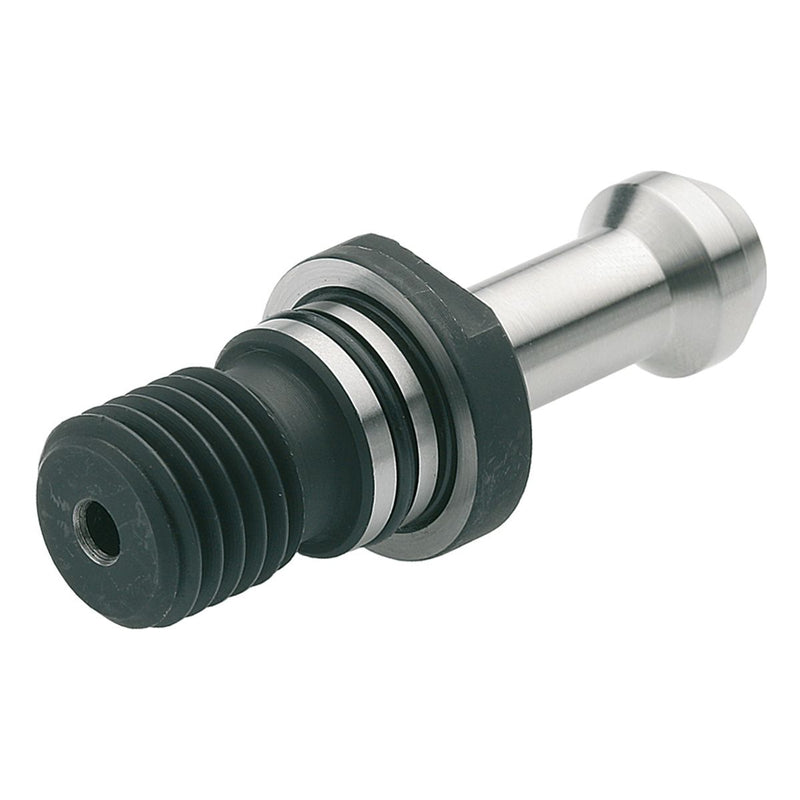

This ISO 7388-3 pull stud (shank form JD) is a retention knob used to clamp BT/MAS 403 toolholders in a machine spindle. It provides centric internal coolant/lubricant feed through a drill-through hole and includes an O-ring for sealing, intended for tools with ISO 7388-2 taper shanks.
Quote

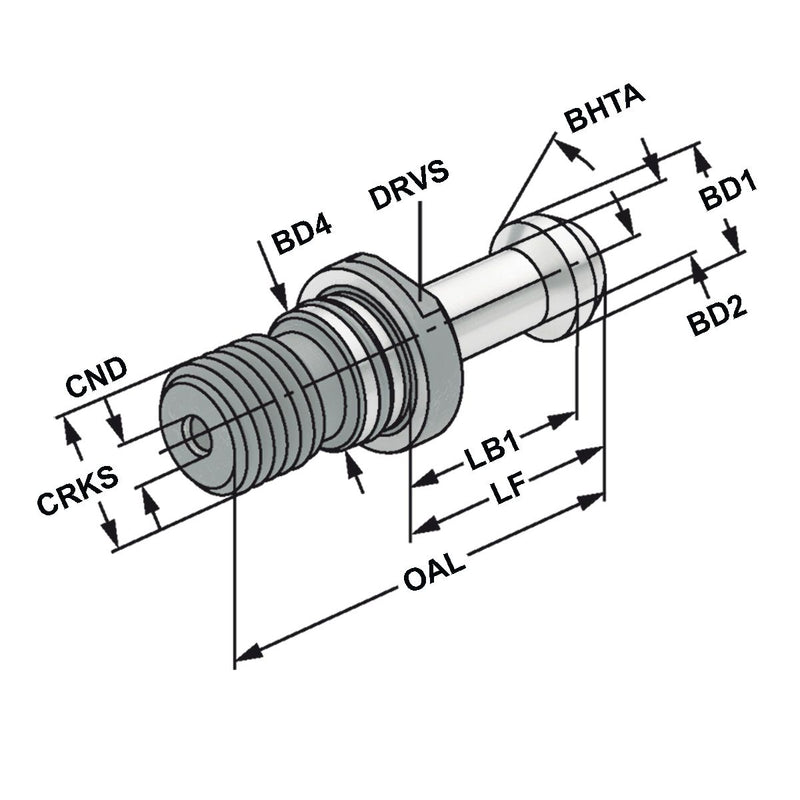

| SKU | CRKS | BHTA | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| KE-406.20.60 | M16 | 60° | 1 month |
+VAT
€8,00
|
|
| KE-506.20.60 | M24 | 60° | 1 month |
+VAT
€9,00
|
|
| KE-306.20.45 | M12 | 45° | 1 month |
+VAT
€7,00
|
|
| KE-306.20.60 | M12 | 60° | 1 month |
+VAT
€7,00
|
|
| KE-406.20.90 | M16 | 90° | 1 month |
+VAT
€8,00
|
|
| KE-406.20.45 | M16 | 45° | 4 available |
+VAT
€8,00
|
|
| KE-506.20.45 | M24 | 45° | 1 month |
+VAT
€9,00
|
|
| KE-506.20.90 | M24 | 90° | 1 month |
+VAT
€9,00
|
