Specifications

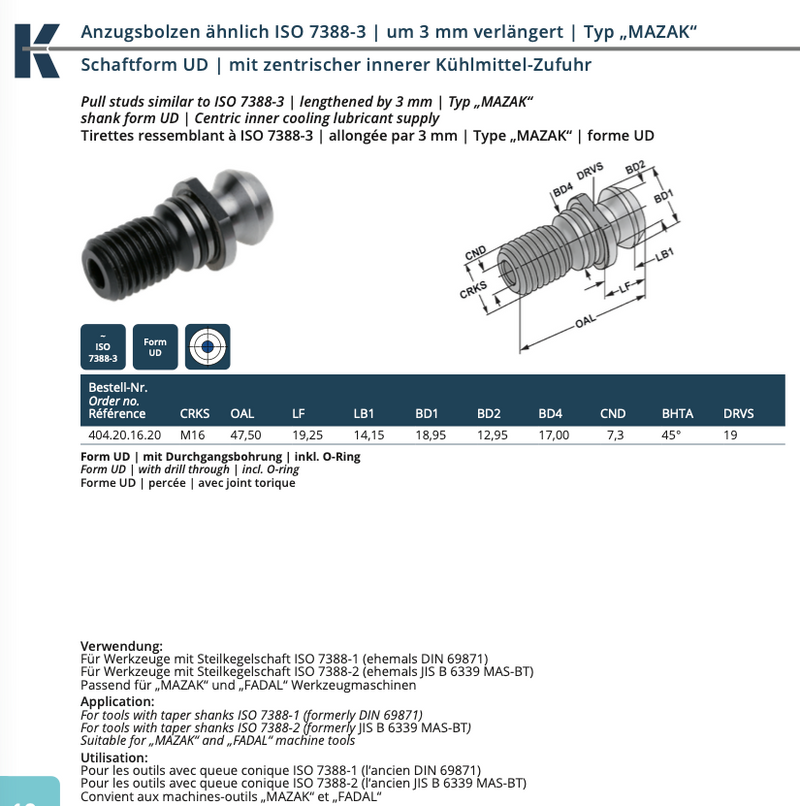

- Type: Pull stud similar to ISO 7388-3, lengthened by 3 mm, “MAZAK” type
- Shank form: UD
- Coolant supply: Centric inner coolant/lubricant supply
- Bore: Drill-through (through hole)
- Sealing: Includes O-ring
- Tool standard compatibility: ISO 7388-1 (formerly DIN 69871), ISO 7388-2 (formerly JIS B 6339 MAS-BT)
- Machine suitability: Suitable for “MAZAK” and “FADAL” machine tools

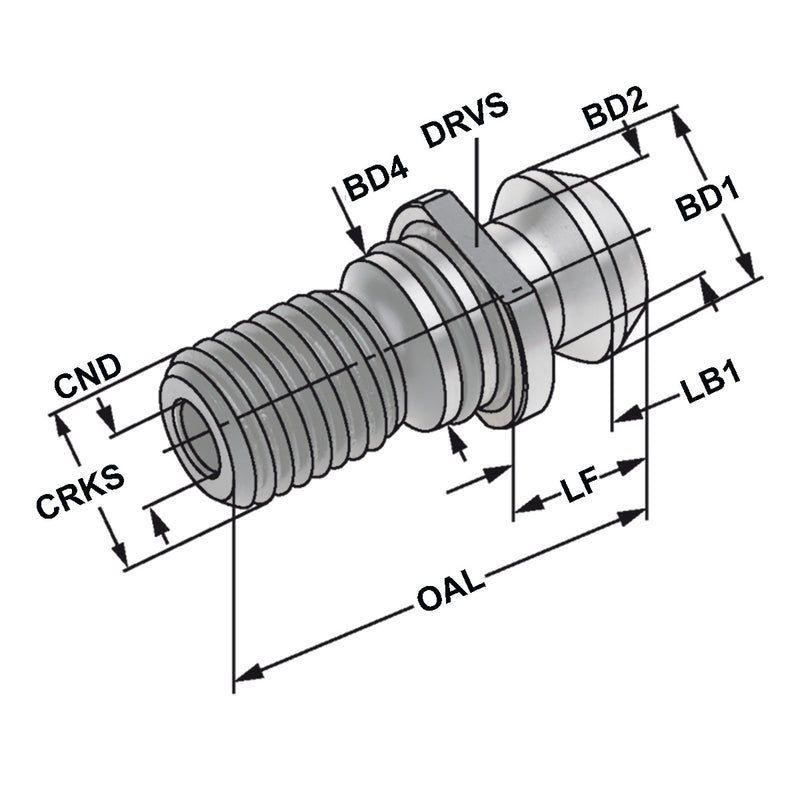

- CRKS: M16
- OAL (mm): 47.50
- BHTA: 45°
Description

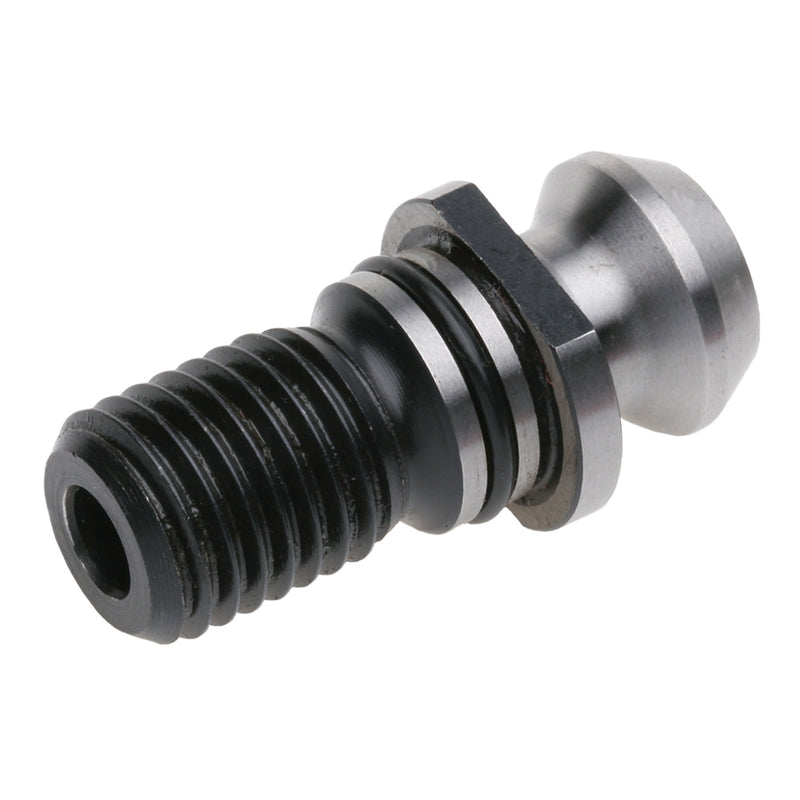

“MAZAK” type pull stud used to clamp taper-shank toolholders in a machine tool spindle. It is intended for tools with taper shanks per ISO 7388-1 and ISO 7388-2 and supports centric internal coolant supply through a drill-through bore, with O-ring sealing.
Quote
| SKU | CRKS | OAL (mm) | BHTA | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-404.20.16.20 | M16 | 47,50 | 45° | 1 month |
+VAT
€10,00
|
