Specifications

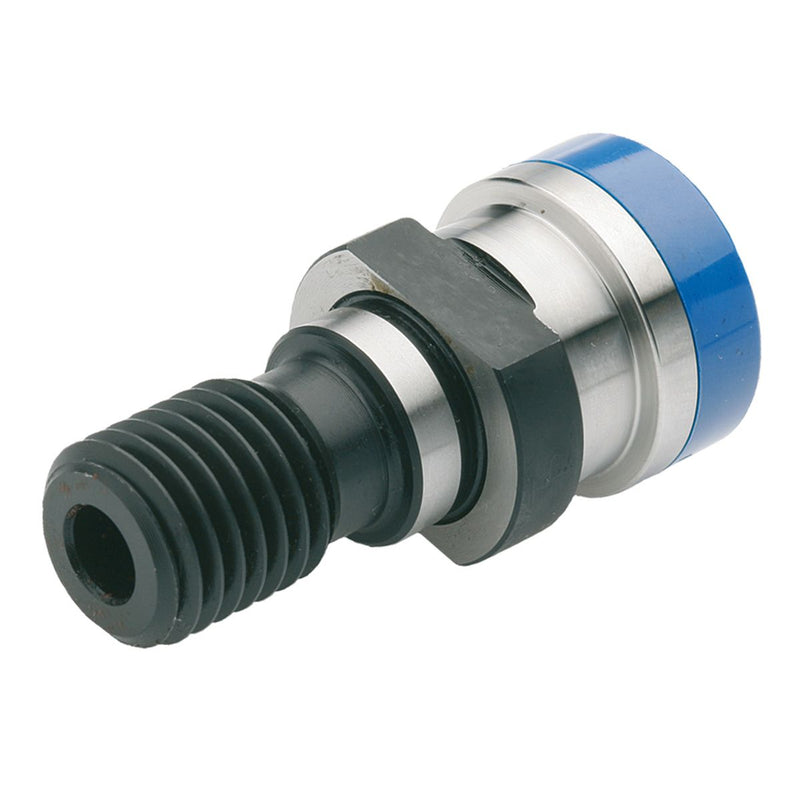

- Type: Pull stud DIN 2080 with Ott-groove (Ott-Ringnut)
- Tool interface standard: ISO 7388-1 (for conversion to DIN 2080)
- Thread: Internal thread
- Bore: Drill-through (through hole)
- Note: With protection ring
Description
DIN 2080 pull stud with Ott-groove for tool holders according to ISO 7388-1 when conversion/adaptation to DIN 2080 is required. Used in machining tool clamping systems as the pull-in/clamping element engaged by the spindle drawbar.
Quote

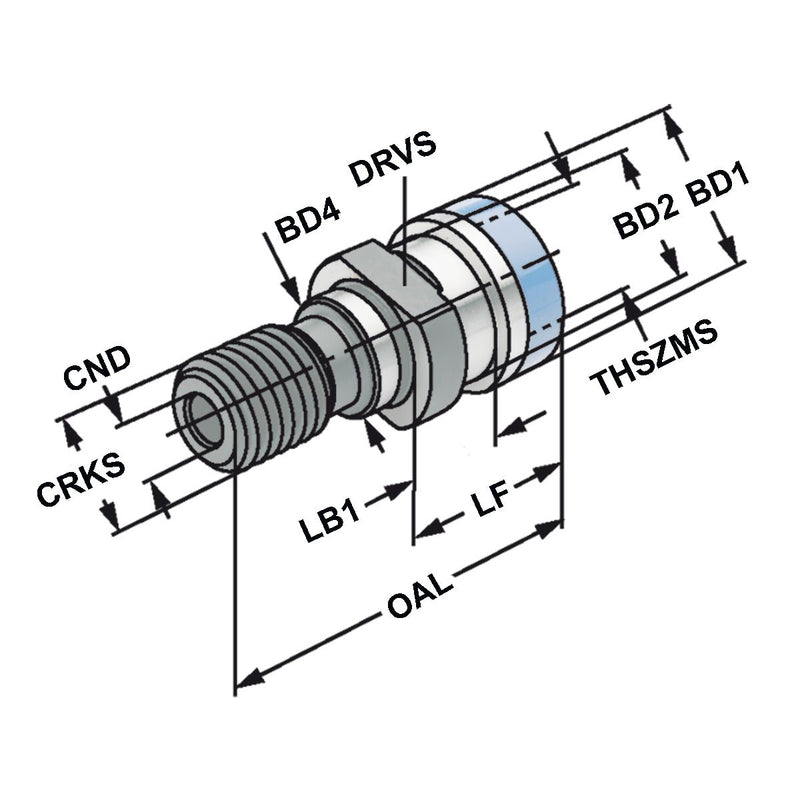

| SKU | CRKS | OAL | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| KE-501.20.24 | M24 | 65.1 | 2 available |
+VAT
€10,00
|
|
| KE-401.20.16 | M16 | 53 | 2 available |
+VAT
€9,00
|
