Specifications

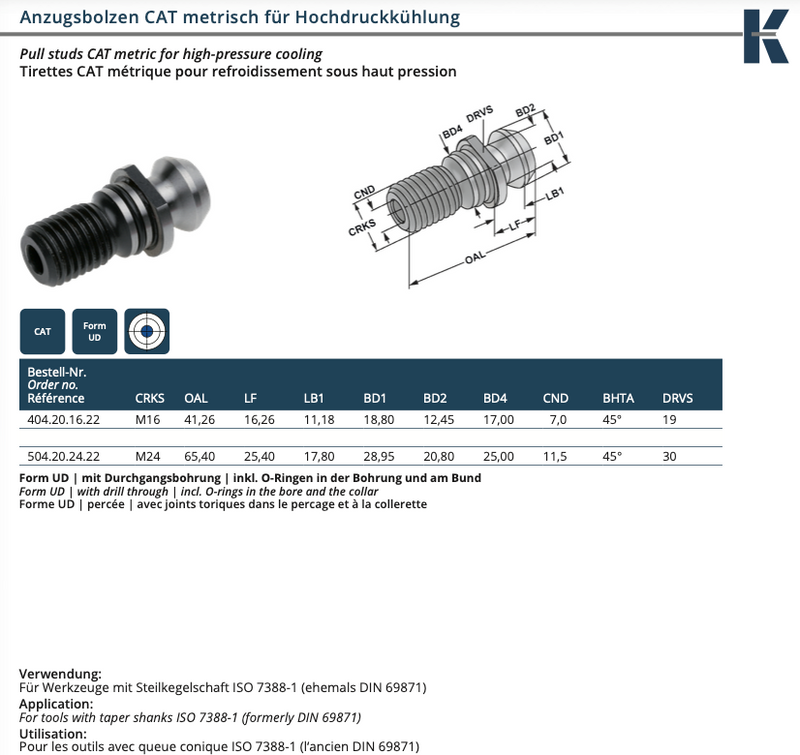

- Type: Pull stud for CAT, metric, for high-pressure coolant
- Form: Form UD
- Construction: drill-through (through bore)
- Sealing: includes O-rings in the bore and on the collar
- Application: for tools with taper shanks ISO 7388-1 (formerly DIN 69871)
- Dimensions/parameters (per table): CRKS, OAL (mm), LF, LB1, BD1, BD2, BD4, CND, BHTA, DRVS
Description
Metric CAT pull stud designed for high-pressure coolant applications on machine tools. It is used to clamp/pull the tapered tool into the spindle clamping mechanism for tools with ISO 7388-1 (formerly DIN 69871) taper shanks. Form UD features a drill-through bore and O-rings for sealing in the bore and at the collar.
Quote
| SKU | CRKS | OAL (mm) | BHTA | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-504.20.24.22 | M24 | 65,40 | 45° | 1 month |
+VAT
€18,00
|
|
| KE-404.20.16.22 | M16 | 41,26 | 45° | 1 month |
+VAT
€11,00
|
