Specifications
- Type: Pull stud ISO 7388-3, shank form UF
- Standard: ISO 7388-3 (formerly ISO 7388)
- Coolant/lubricant supply: without (without cooling lubricant supply)
- Application: for tools with taper shanks ISO 7388-1 (formerly DIN 69871)
- Design variants: available with or without O-ring (model-dependent)

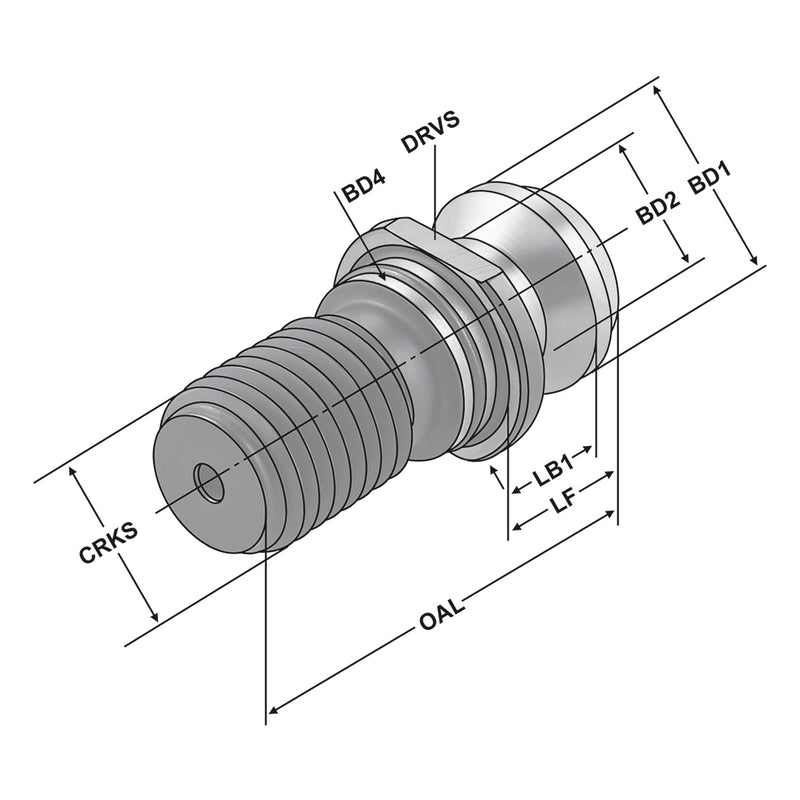

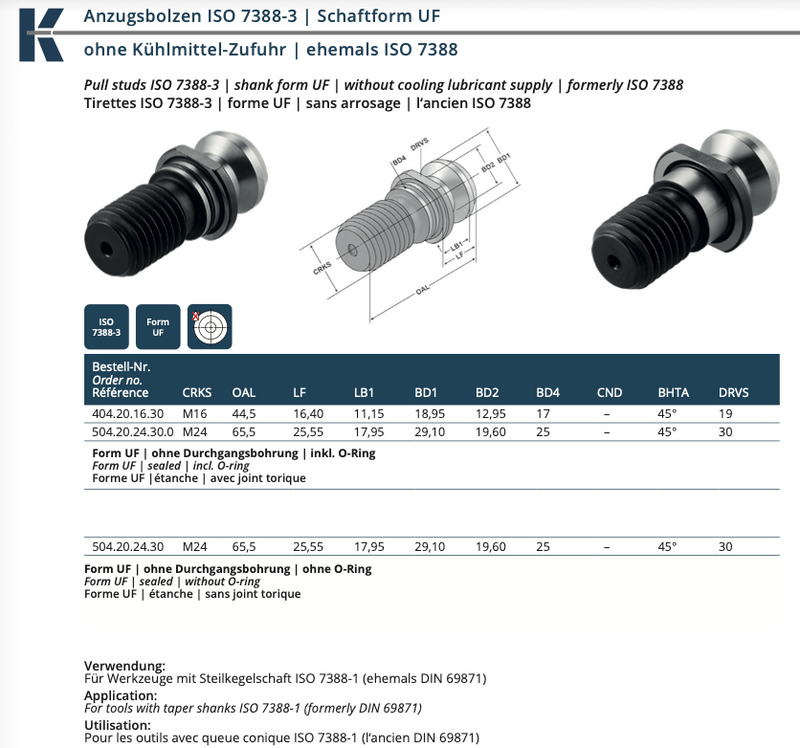

- Dimensions/parameters (model-dependent): CRKS, OAL (mm), L, LB1, BD1, BD2, BD4, CND, BHTA, DRVS
Description

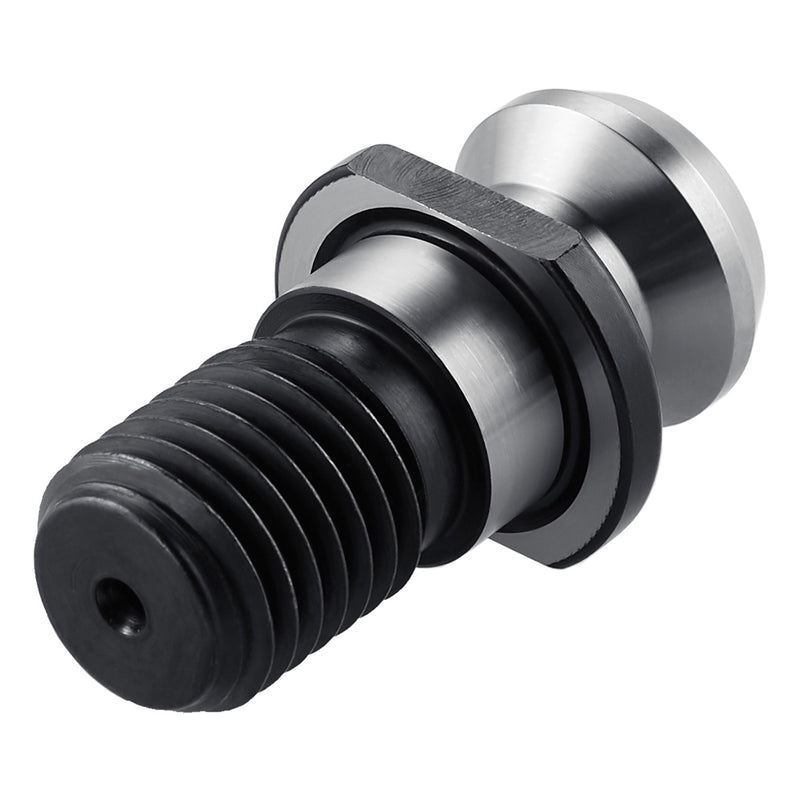

The Pull Stud Form UF (ISO 7388-3) is a retention knob used to clamp toolholders with ISO 7388-1 taper shanks in machine tool clamping systems. It connects the holder to the drawbar/pull mechanism and is intended for applications without coolant/lubricant supply through the pull stud. Depending on the model, versions are available with or without an O-ring.
Quote
| SKU | CRKS | OAL (mm) | O Ring | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| KE-404.20.16.30 | M16 | 44,5 | with O Ring | 1 month |
+VAT
€10,00
|
|
| KE-504.20.24.30 | M24 | 65,5 | with O Ring | 1 month |
+VAT
€11,00
|
|
| KE-504.20.24.30.0 | M24 | 65,5 | without O Ring | 1 month |
+VAT
€14,00
|
