Specifications

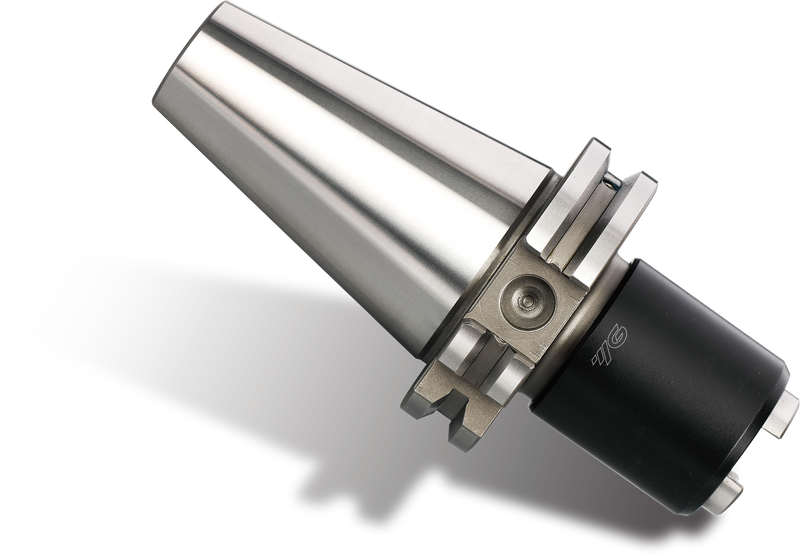

- Type: SYNCHRO TAPPING CHUCK (Quick Change Type)
- Taper standard: DIN 69871-SK
- Tap size: M3–M12
- Tap adaptor: TCS12

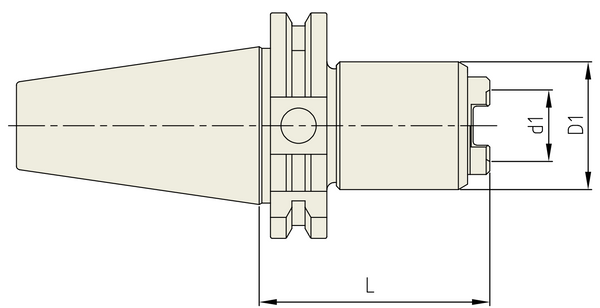

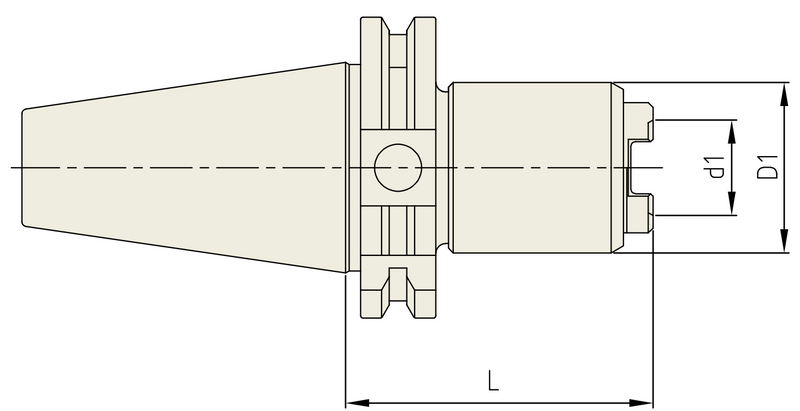

- d1: 19 mm
- D1: 36 mm
- L: 65 mm
- Units: mm
Description
SK taper for the SYNCHRO TAPPING CHUCK TC (Quick Change Type), used to correct synchronization (Z-axis) error during tapping. It helps compensate for tap pitch tolerances to improve thread quality and extend tool life. Suitable for machines with a synchronized spindle.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.

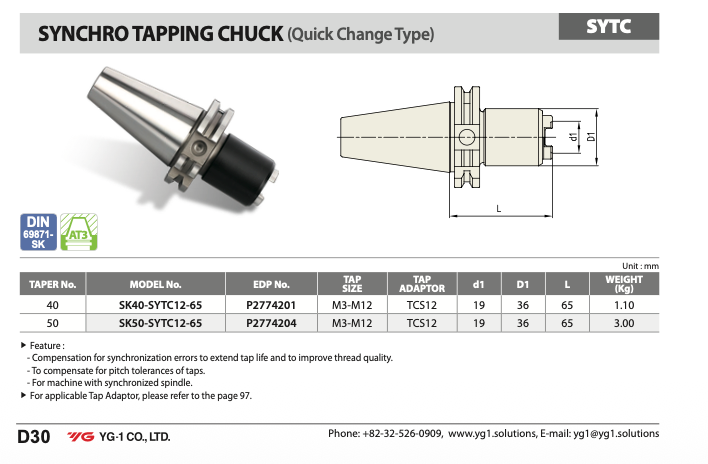

| SKU | Taper | Collet | d1 (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| P2774201 | SK40 | TCS12 | 19 | 5-8 business days |
+VAT
€200,00
|
|
| P2774204 | SK50 | TCS12 | 19 | 5-8 business days |
+VAT
€263,00
|
