pH Meter Display
PCE-PHC 10
| Measured variable pH | |
| Measuring range | 0 ... 14 pH |
| Resolution | 0.01 pH |
| Accuracy | plus-minus (0.02 pH + 2 digits) |
| Measured variable temperature | |
| Measuring range | 0 ... 65degreesC / 32 ... 149degreesF |
| Resolution | 0.1degreesC / 0.18degreesF |
| Accuracy | plus-minus 0.8degreesC / 1.44degrees F |
| pH input impedance | 1012 ohms |
| Temperature compensation | Manual: -30 ... 100degreesC / -22 ... 212degreesF |
| Automatic: 0 ... 65degreesC / 32 ... 149degreesF | |
| 3-point calibration | pH 7, pH4, pH10 |
| Connection pH electrode | BNC |
| Sampling rate | About 1 second |
| Display | 4 digit LED display |
| 14 mm digit height | |
| NO relay | 250V AC / 0.5A |
| 24V DC / 0.5A | |
| Voltage output | 12V / 0.05A DC |
| Interface | Serial RS232 |
| Operating conditions | 0 ... 50degreesC / 32 ... 122degreesF, max. 80% rh |
| Power supply | 90 ... 260V AC / 50/60 Hz |
| Input | Approx. 4.7 VA at 110V AC |
| Approx. 5.3 VA at 220V AC | |
| Weight | About 275 g / 9.7 oz meter only |
| Dimensions | 96 x 48 x 107 mm / 3.8 x 1.9 x 4.2 in |
| Front panel | 92 x 46 mm / 3.6 x 1.8 in |
Process Controller / pH CController
2-point pH controller / Measures pH and regulates pH / 3-point calibration / For fish farming, electroplating or water treatment
2-point pH controller / Measures pH and regulates pH / 3-point calibration / For fish farming, electroplating or water treatment

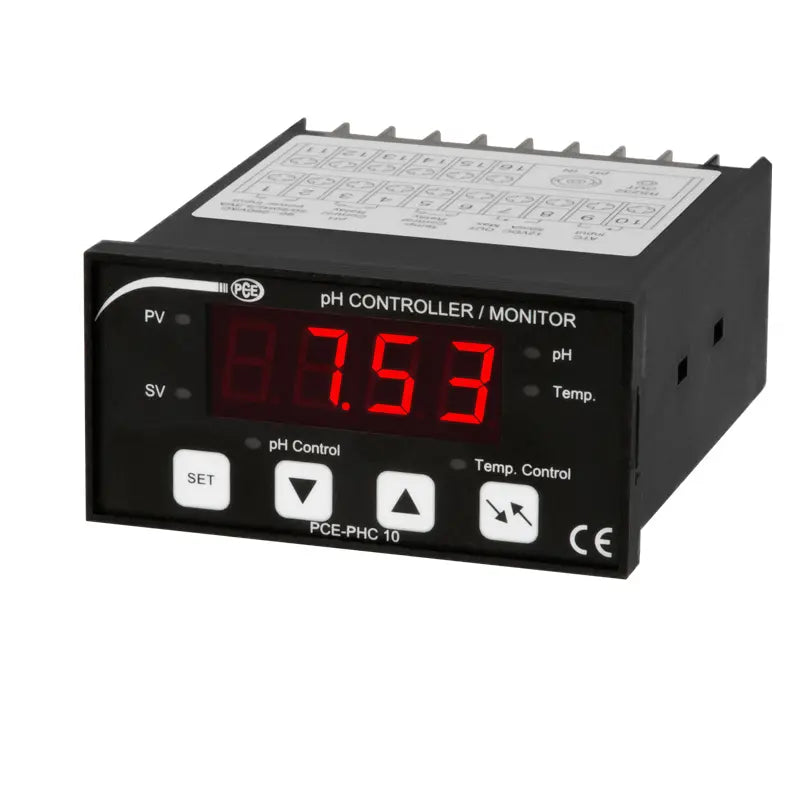

The pH process controller measures and regulates the pH of various substances and is able to influence the pH value. The pH process controller is a classic 2-point controller; depending on the application, the controller can be used to influence the liquid towards alkaline or acidic. The limit values for the 2-point control are programmed via the buttons of the pH controller, which are located on the front. Also on the front is the LED display, on which the current measured value can be read at any time. This facilitates fast and precise control of the water values, especially in industrial processes.

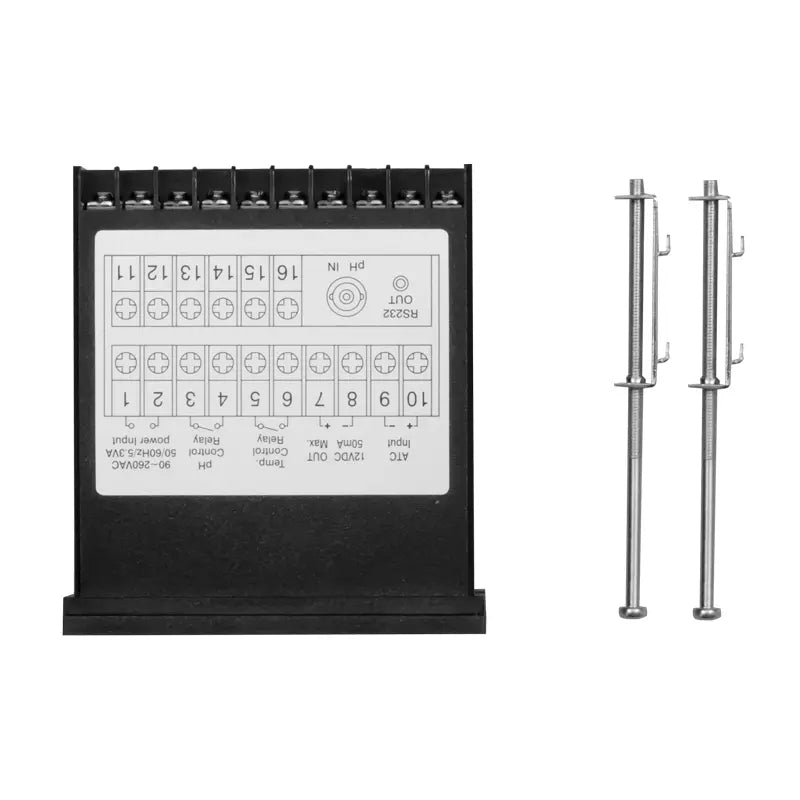

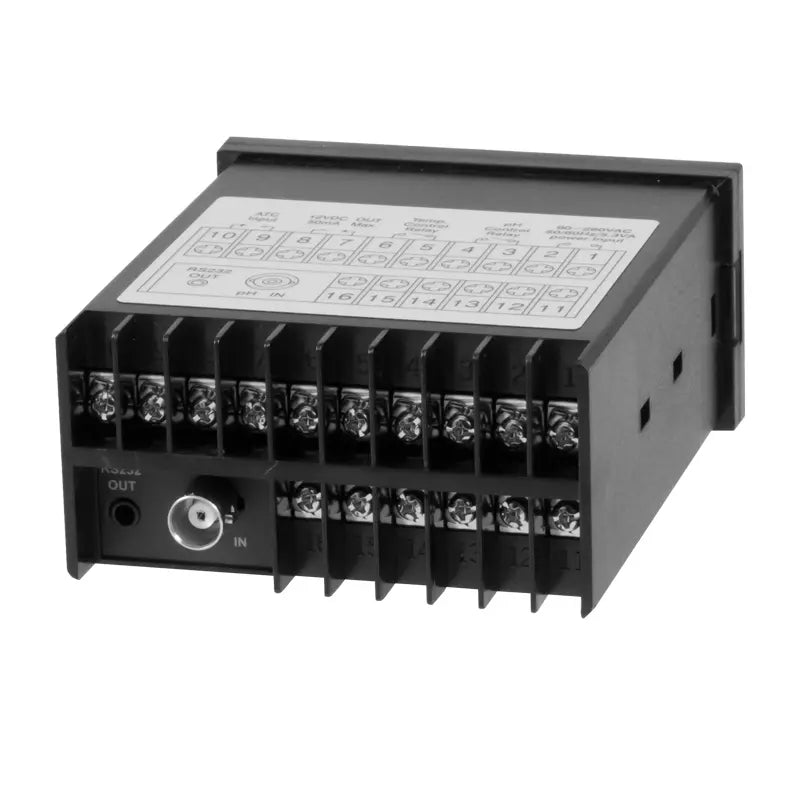

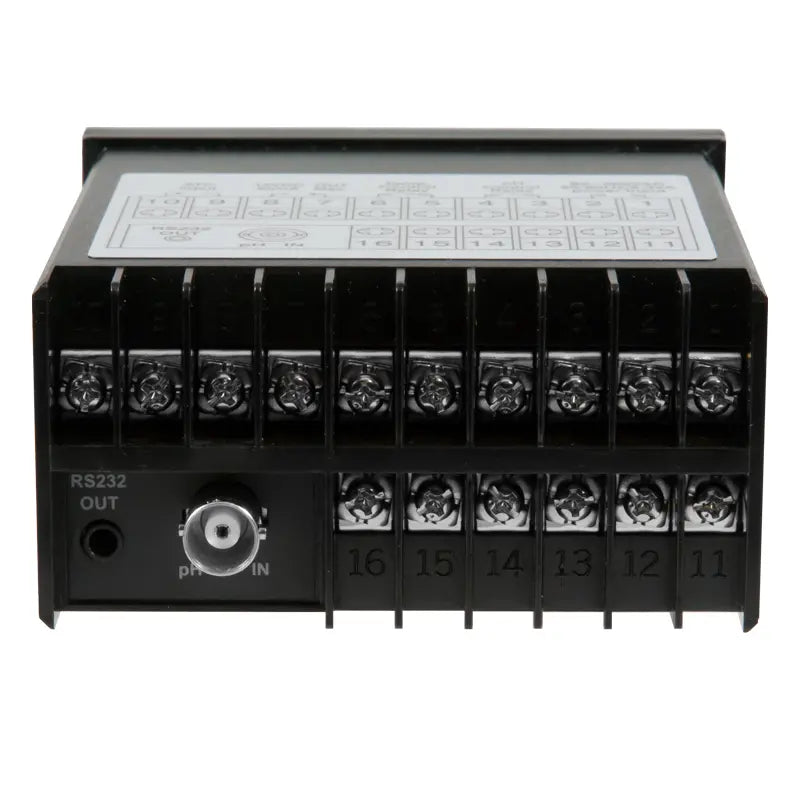

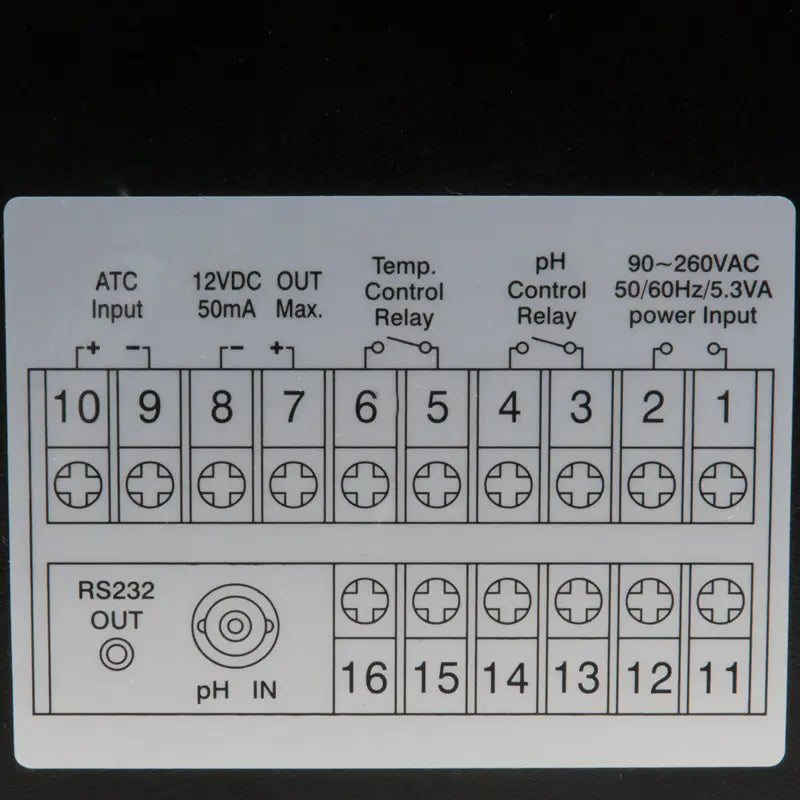

A pH electrode is connected to the pH controller via BNC plug. The screw connections can be used to connect a temperature probe for automatic temperature compensation to the pH process controller. The pH controller finds its application in electroplating, the control of fresh and wastewater or in wastewater neutralization. Due to the compact dimensions, the pH controller fits in every control panel.
- Small dimensions
- Large LED display
- 2 control relays for pH and temperature
- Connection via BNC and screw contacts
- For water treatment, electroplating ...
- 3-point calibration
1 x pH Controller PCE-PHC 10
1 x User manual
1 x User manual
