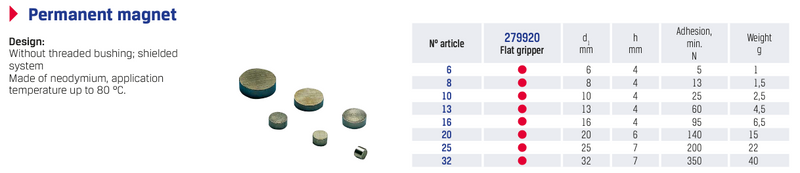

Technical Specifications
-
Design: Threadless, protected system
-
Material: Neodymium
-
Maximum operating temperature: 80 °C
-
Type: Flat magnet (Flat gripper)
-
Available dimensions (d₁ x h in mm):
-
6 x 4, Holding force: 5 N, Weight: 1 g
-
8 x 4, Holding force: 13 N, Weight: 1.5 g
-
10 x 4, Holding force: 25 N, Weight: 2.5 g
-
13 x 4, Holding force: 60 N, Weight: 4.5 g
-
16 x 4, Holding force: 95 N, Weight: 6.5 g
-
20 x 6, Holding force: 140 N, Weight: 15 g
-
25 x 7, Holding force: 200 N, Weight: 22 g
-
32 x 7, Holding force: 350 N, Weight: 40 g
-
Description
Permanent neodymium magnet with protected design without threading. Suitable for holding applications up to temperatures of 80 °C.
Quote
| SKU | Diameter (mm) | Height (mm) | Force (N) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| 279920 6 | 6 | 4 | 5 | 5 available |
+VAT
€1,60
|
|
| 279920 8 | 8 | 4 | 13 | On Order |
+VAT
€1,80
|
|
| 279920 10 | 10 | 4 | 25 | 32 available |
+VAT
€2,10
|
|
| 279920 13 | 13 | 4 | 60 | On Order |
+VAT
€2,20
|
|
| 279920 16 | 16 | 4 | 95 | 10 available |
+VAT
€2,60
|
|
| 279920 20 | 20 | 6 | 140 | 2 available |
+VAT
€3,80
|
|
| 279920 25 | 25 | 7 | 200 | 5 available |
+VAT
€5,80
|
|
| 279920 32 | 32 | 7 | 350 | 4 available |
+VAT
€7,30
|
